AND LC4204-K600 Single Point Load Cell
And Single Point Load Cell (Model: LC4204-K600) delivers precise measurement with a 600 kgf capacity, rated output of 1.5 mV/V ±0.2%, and IP-rated durability for industrial weighing applications.

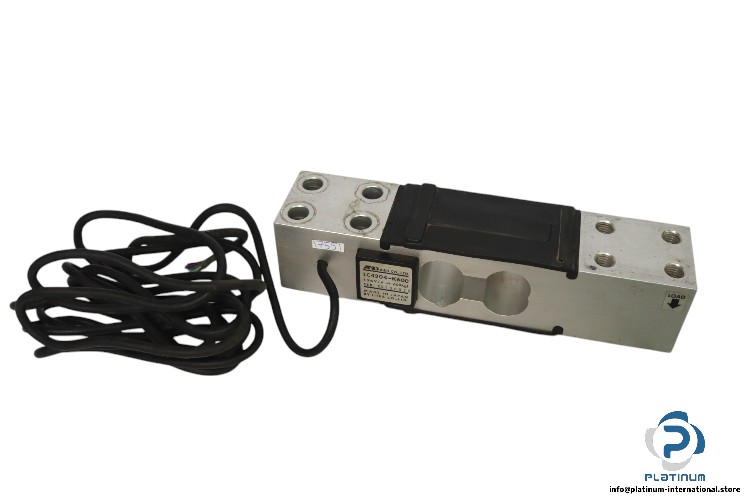

Single Point Load Cell (Model: LC4204-K600)
Manufacturer: And
The Single Point Load Cell (Model: LC4204-K600) by And is a precision measurement device designed for industrial weighing applications. With a rated capacity of 600 kgf, it ensures high accuracy and reliability. The load cell offers a rated output of 1.5 mV/V ±0.2% and supports a maximum deadweight of 20% of the rated capacity. Its robust design can withstand up to 200% safe overload of the rated capacity. The device has a combined error of ±0.015% of the rated output, ensuring precision in demanding environments.
The load cell operates efficiently in a temperature range of -10 to 40°C and supports a recommended excitation voltage of 12V, with a maximum excitation voltage of 15V. Its input terminal resistance is approximately 400„¦, while the output terminal resistance is 350„¦ ±5„¦. With an insulation resistance greater than 5000M„¦ at DC50V and a 5m (195 inches) cable length, this load cell offers durability and easy installation for industrial applications.
- Manufacturer: And

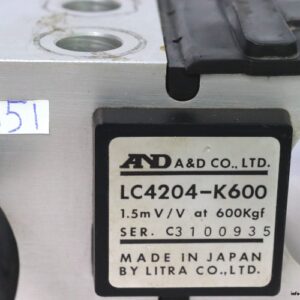

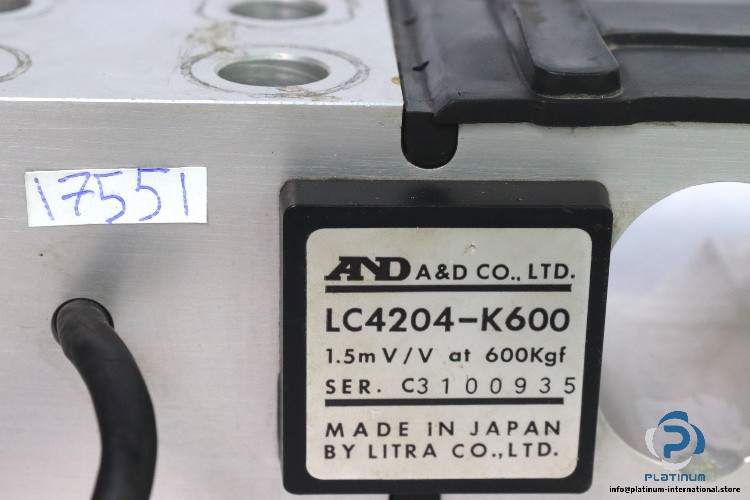

- Model: LC4204-K600
- Rated Capacities: 600 kgf
- Rated Output: 1.5 mV/V ±0.2%
- Maximum Deadweight: 20% of rated capacity
- Maximum Safe Overload: 200% of rated capacity
- Combined Error: ±0.015% of rated output
- Temperature Range: -10 to 40°C
- Recommended Excitation Voltage: 12V
- Maximum Excitation Voltage: 15V
- Input Terminal Resistance: Approximately 400„¦
- Output Terminal Resistance: 350„¦ ±5„¦
- Insulation Resistance: Greater than 5000M„¦ at DC50V
- Cable Length: 5m / 195 inches
