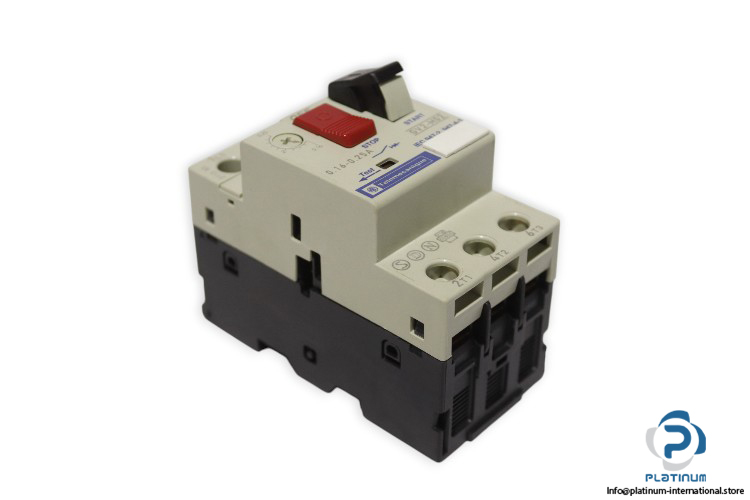

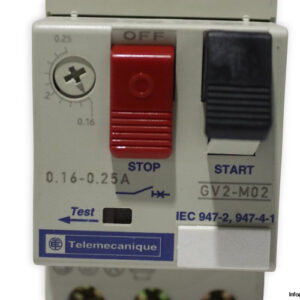

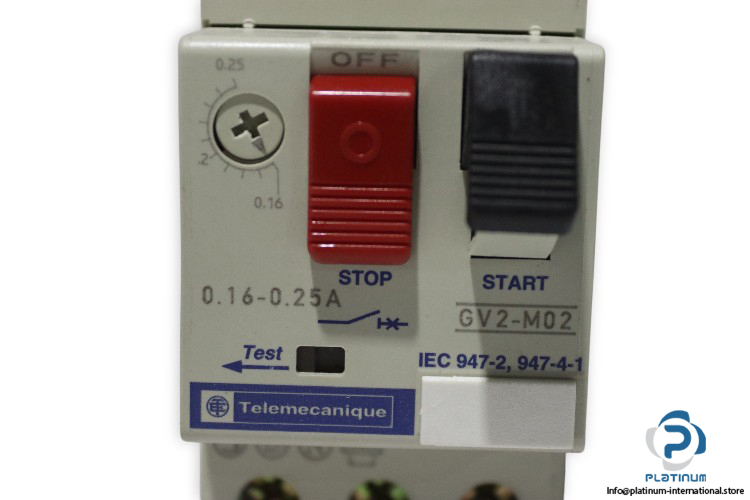

Telemecanique GV2-M02 Motor Circuit Breaker
The Telemecanique GV2-M02 is a compact and reliable motor circuit breaker designed for precise protection of motors and electrical circuits. With high breaking capacity, wide voltage compatibility, and robust thermal-magnetic protection, it ensures safe and efficient operation in industrial systems.
Manufacturer: Telemecanique
Type: Motor Circuit Breaker
Model: GV2-M02

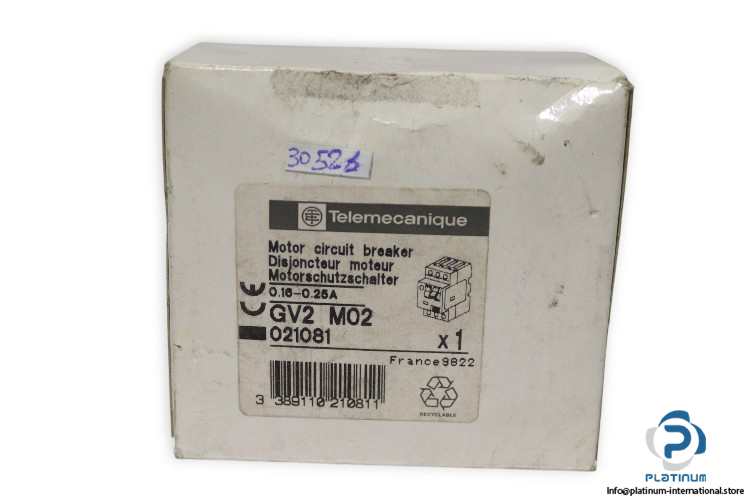

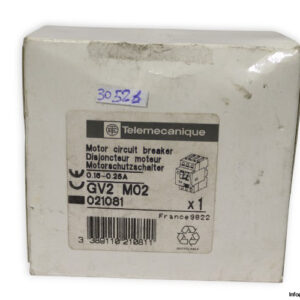

Part No.: 021081
Serial No.: 3389110210811
Code: 1389347 01 07

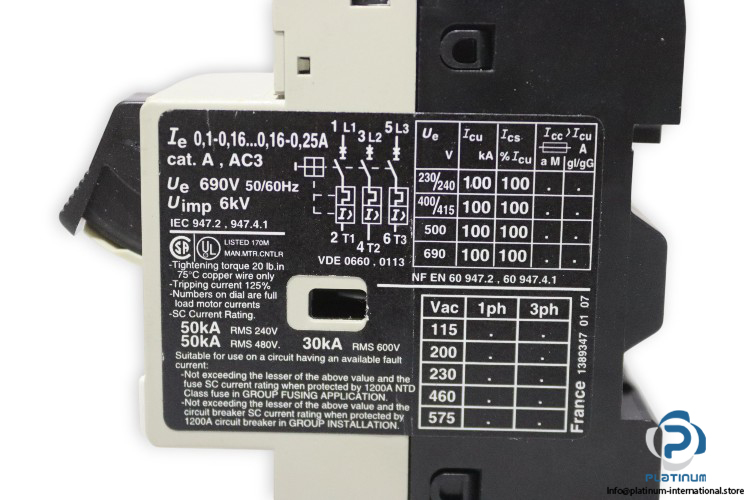

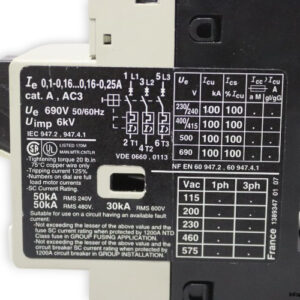

Technical information
- Current Range: 0.1 to 0.16 to 0.25 A
- Category: A, AC 3
- Rated Operational Voltage (Ue): 690 V, 50/60 Hz
- Impulse Withstand Voltage (Uimp): 6 kV
- Breaking Capacity (Icu):
- 230/240 V: 100 kA
- 400/415 V: 100 kA
- 500 V: 100 kA
- 690 V: 100 kA
- Rated Service Short-Circuit Breaking Capacity (Ics % Icu): Up to 100%
- Rated Conditional Short-Circuit Current (Icc): 50 kA RMS (240 V), 50 kA RMS (480 V), 30 kA RMS (600 V)
- Tightening Torque: 20 in-lb (0.23 Nm)
- Protected By: 1200 A circuit breaker
- Operating Temperature: -75 °C (copper wire only)
