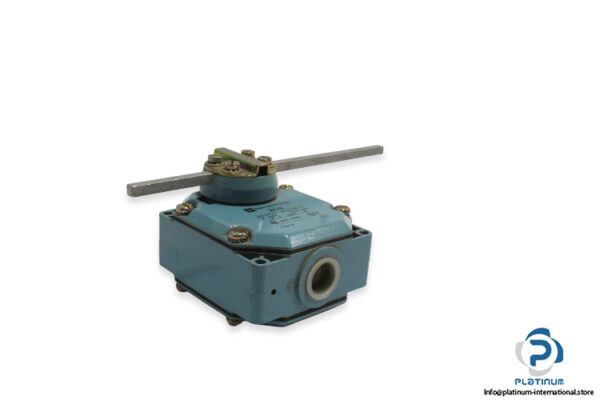

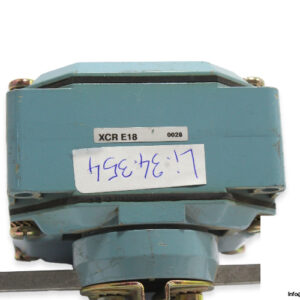

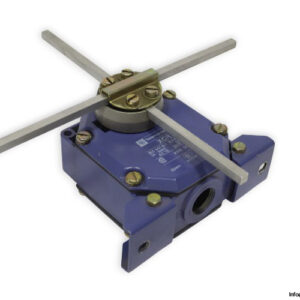

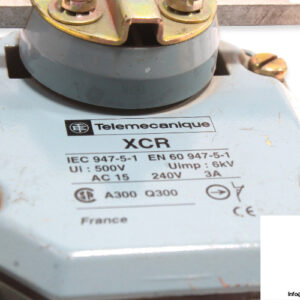

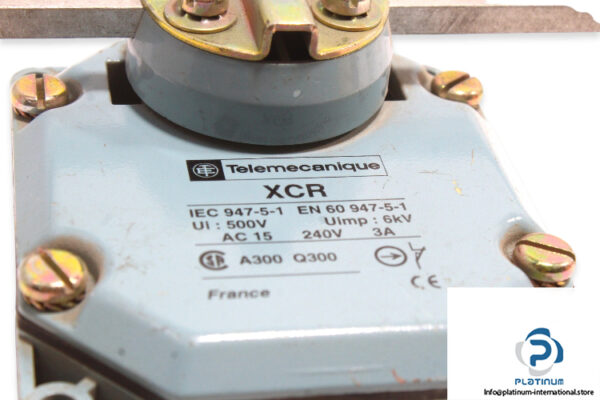

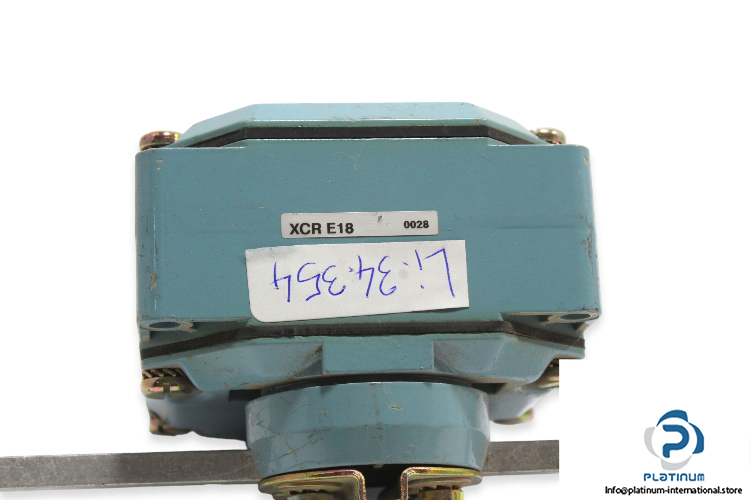

TELEMECANIQUE XCR E18 LIMIT SWITCH

The Telemecanique XCR E18 limit switch is engineered for industrial precision and durability. Designed to handle demanding automation applications, it ensures reliable position detection and control in harsh environments.

Manufacturer: TELEMECANIQUE
Type: Limit Switch
Device Short Name: XCR
Model: XCR E18

Technical Information

• Output Configuration: 2 x (1 NC + 1 NO)
• Contact Operation: Snap Action
• Actuator Type: Rods Lever
• Body Material: Zinc Alloy
• Maximum Displacement Angle: 90°, -90°
• Rated Voltage: 500 V
• Switching Voltage Max.: 240 V
• Contact Current Max.: 3 A
• Connection: Cable Entry
• Protection Class: IP65
• Ambient Operating Temperature: -25 / 70 °C
• Dimensions: 85 x 95 x 75 mm
