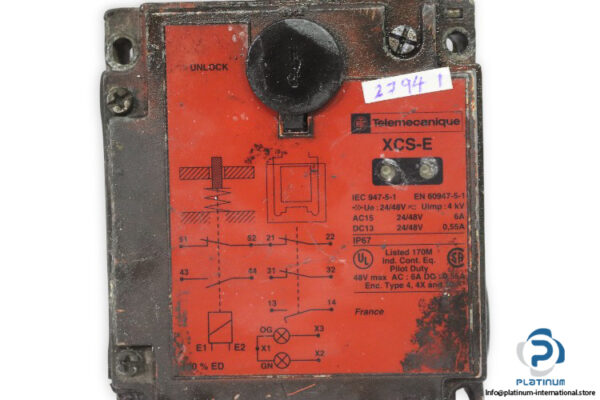

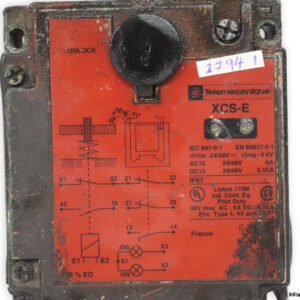

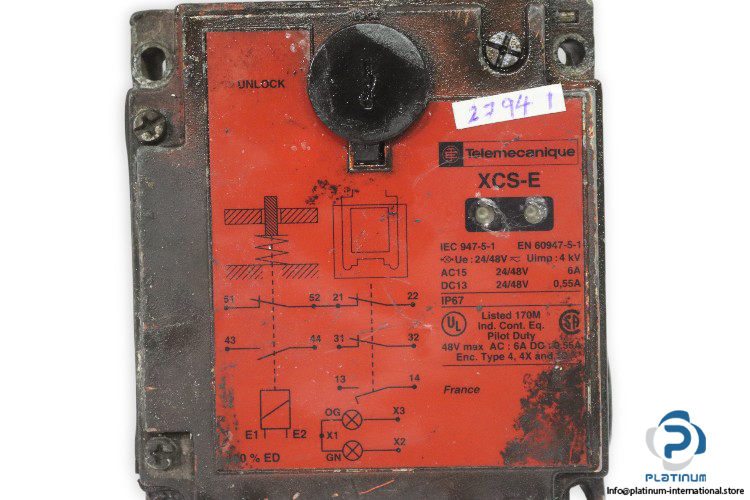

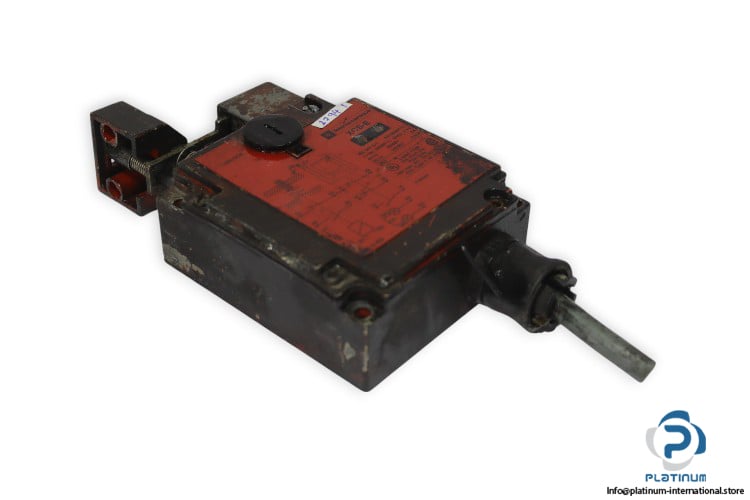

TELEMECANIQUE XCS-E SAFETY INTERLOCK SWITCH
The Telemecanique XCS-E is a robust safety interlock switch designed for safeguarding industrial machinery and ensuring compliance with safety regulations. Featuring a key-operated locking mechanism, durable metal enclosure, and LED status indicators, it provides reliable protection in demanding environments. With an IP67 rating and compatibility with ISO cable glands, it is ideal for harsh industrial applications.
Manufacturer: Telemecanique
Type: Safety Interlock Switch
Model: XCS-E
Technical Information
- Maximum Voltage Rating: 300 VAC
- Supply Voltage: 24 V
- Supply Frequency: 50/60 Hz
- No. of Poles: 3-Pole
- Actuator Type: Key
- Lock Method: Inserting Actuating Key
- Enclosure Material: Metal
- Ampere Rating: 6 A
- Signalling Circuit Consumption: 7 mA
- Operating Temperature Range: -25 / 40 °C
- Terminal Type: Screw Clamp
- Pilot Light: Orange LED “ Green LED
- Connection Type: (2) M20 x 1.5 for ISO cable gland
- IP Degree of Protection: IP67
