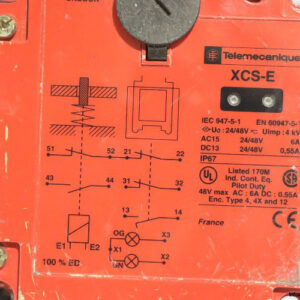

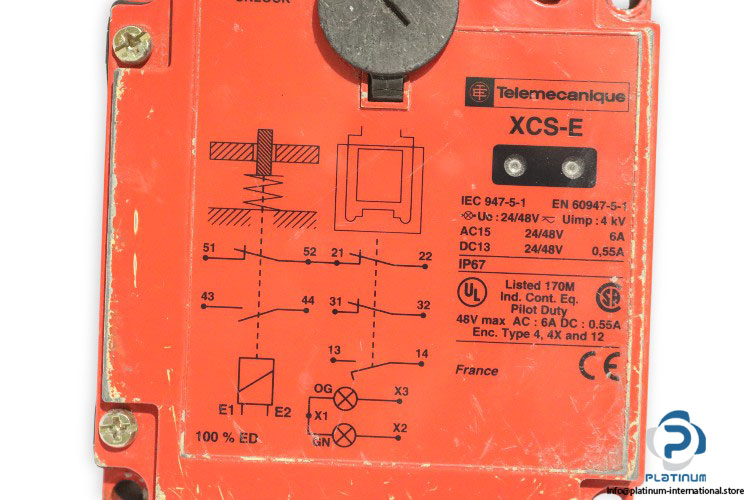

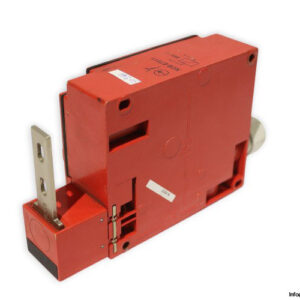

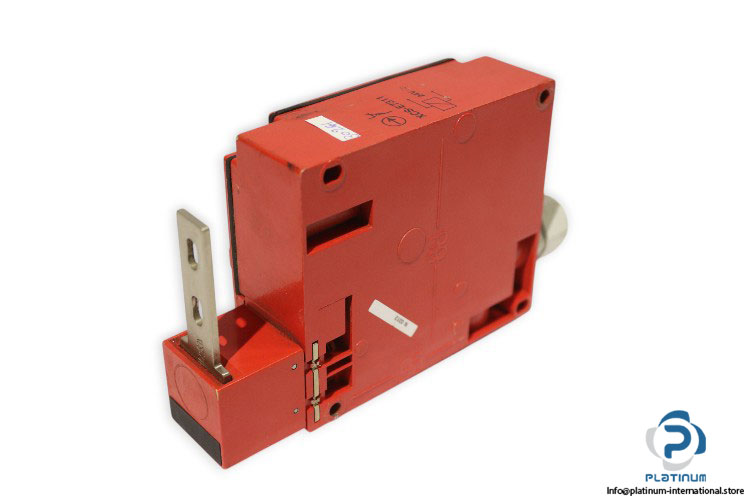

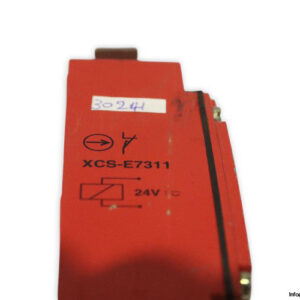

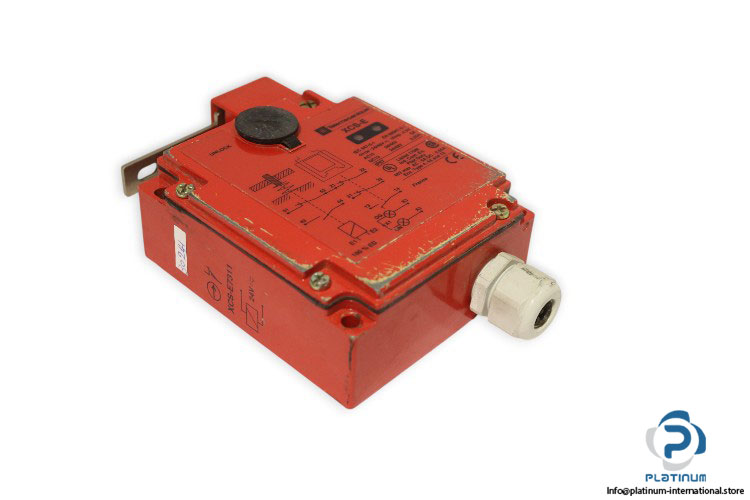

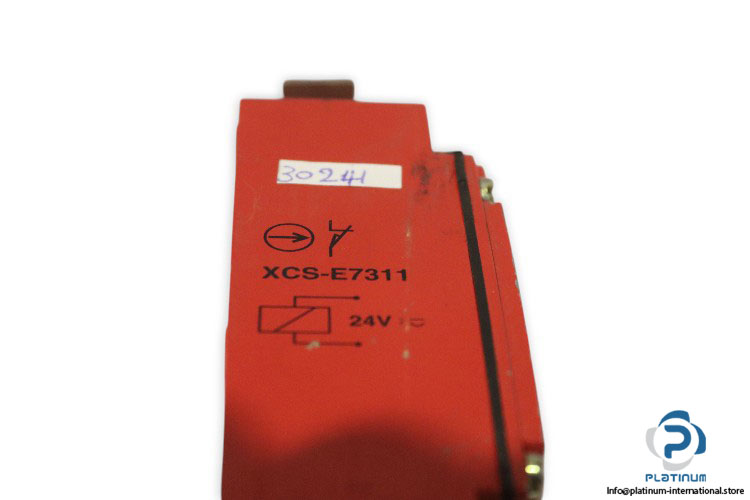

TELEMECANIQUE XCSE7311 SAFETY SWITCH WITH LOCK

The Telemecanique XCSE7311 is a robust safety switch with lock, designed for industrial safety applications requiring reliable machine protection. Built with a durable metal housing, IP67 protection, and multiple contact configurations, it ensures safe and efficient operation in demanding environments.

Manufacturer: Telemecanique
Type: Safety Switch XCS with Lock
Model: XCSE7311

Technical Information

• Type: 4, 4X and 12
• Component Name: XCSE
• Contacts Type and Composition: 2 NC + 1 NO
• Solenoid Contacts Type and Composition: 1 NC + 1 NO
• Cable Entry: 2 entries tapped for Pg 13.5
• Cable Outer Diameter: 9 / 12 mm
• Number of Poles: 3
• Material: Metal
• Contact Operation: Slow-break, break before make
• Signaling Circuit Voltage: 24/48 V
• Signaling Circuit Consumption: 7 mA
• Conventional Enclosed Thermal Current: 6 A
• Supply Frequency: 50/60 Hz
• Rated Operational Current:
• 0.55 A at 125 V, DC-13
• 0.27 A at 250 V, DC-13
• 3 A at 120 V, AC-15
• 1.5 A at 240 V, AC-15
• Rated Impulse Withstand Voltage: 4 kV
• IP Rate: IP67
