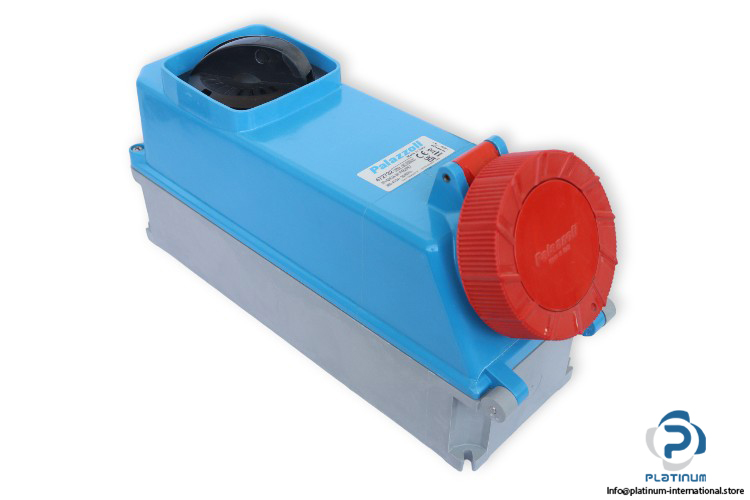

Palazzoli 472732 Switched Socket

Manufacturer: PALAZZOLI
Type: Switched Socket
Model: 472732

Description: TAIS Switched Socket in Thermosetting Grp with Mechanical Interlock and Fuse-Holder
Rated Operating Voltage: 380 … 415 V AC
Rated Current: 63 A
Rated Insulation Voltage: 690 V
Frequency: 50 … 60 Hz
Clock Position: 6 h
Poles No.: 3+E-Pole
Signal Plug Inserted: 1 Contact Pilot
Material: Palazzoli Thermosetting GRP
Protection Class: IP66 / IP67
Ambient Temperature: -25 … 50 °C
Hole Type: M23
Lockable Handle: 3 Lock Ø 8 mm
Dimensions: 370 x 125 x 109 mm
