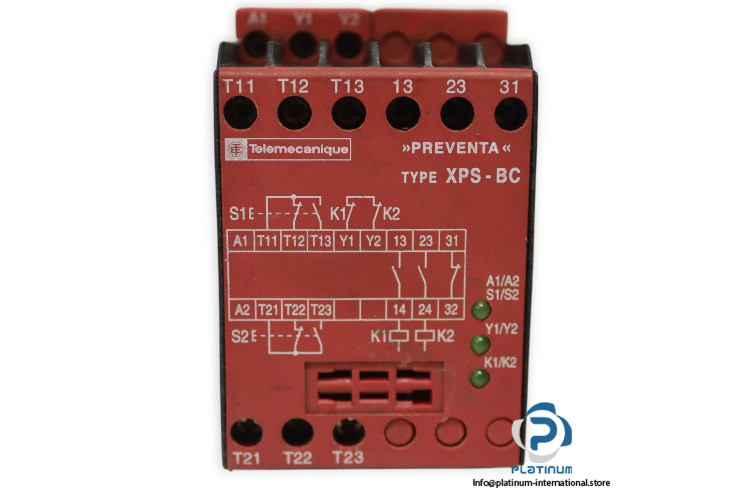

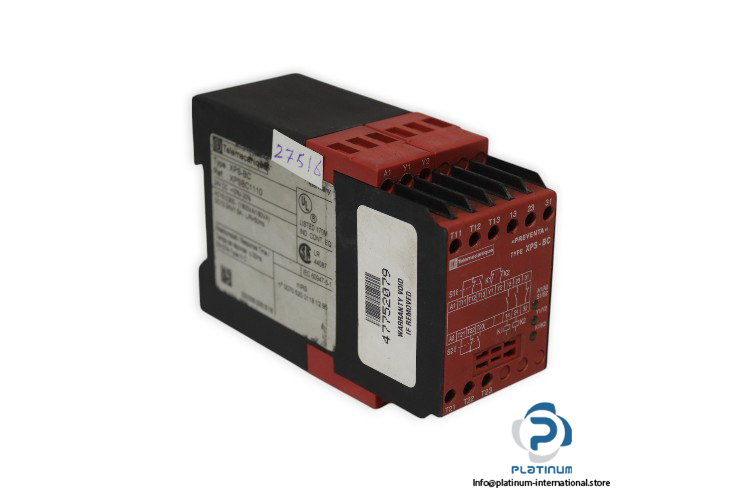

TELEMECANIQUE XPSBC1110 SAFETY RELAY MODULE

The Telemecanique XPSBC1110 Safety Relay Module is engineered to provide reliable monitoring and safety control for industrial automation systems. Designed for integration with 24V DC circuits, it ensures operational security, compact installation, and robust protection in demanding environments.

Manufacturer: Telemecanique
Type: Safety Relay Module
Model: XPSBC1110
Part No.: XPS-BC

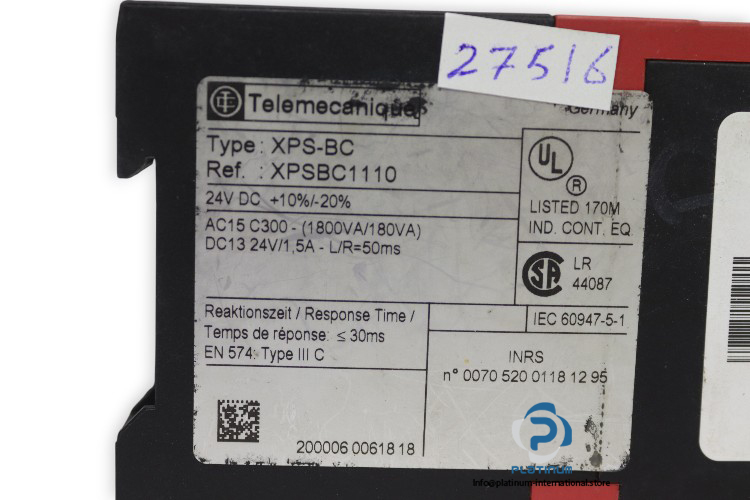

MNR: LR 44087 / 200006 00618 18

Technical Information

• Rated Supply Voltage (Us): 24V DC
• Supply Frequency: 50/60 Hz
• Power Consumption: 6 VA
• Number of Inputs: 1 NC + NO
• Input Voltage: 18 V
• Input Current: 140 mA
• Breaking Capacity: 1.5 A at 24 V
• Conventional Free Air Thermal Current (Ith): 2.5 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Support: 35 mm Symmetrical DIN Rail
• Degree of Protection: IP20, IP40
• Ambient Temperature: -10 / 55 °C
