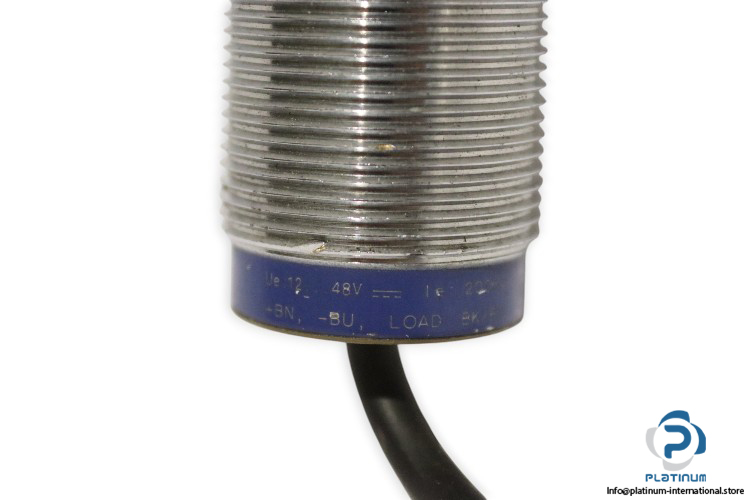

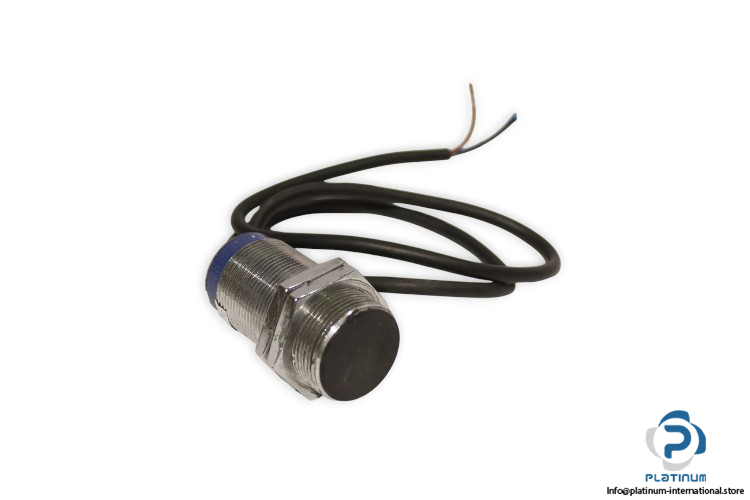

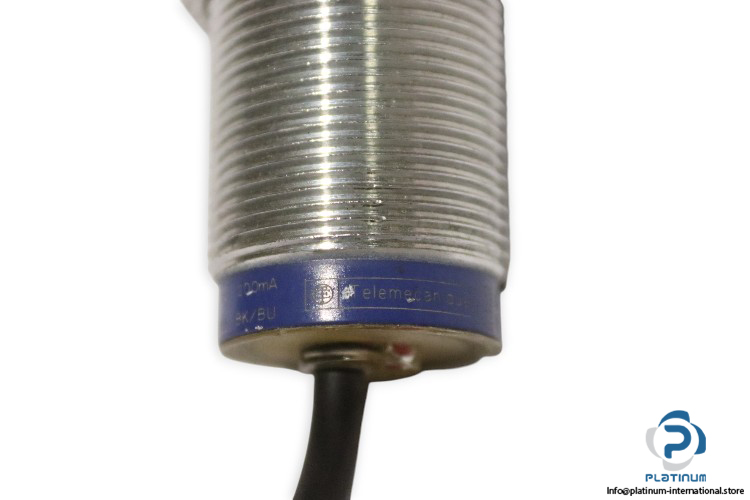

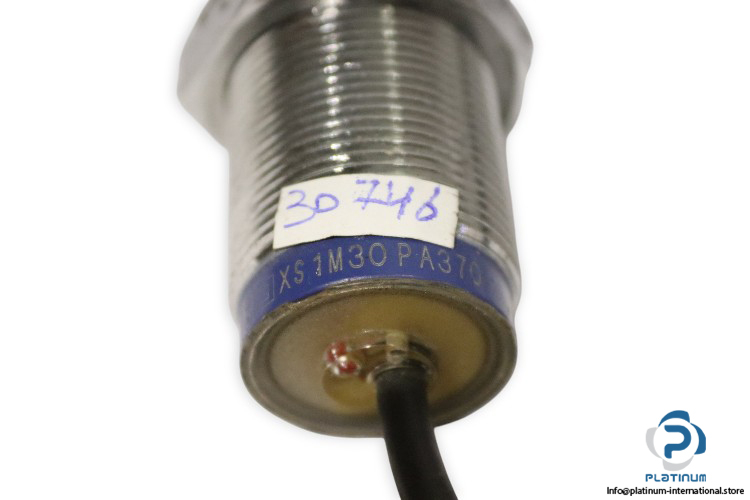

Telemecanique XS1M30PA370 Inductive Sensor

The Telemecanique XS1M30PA370 is a high-performance inductive proximity sensor from the XS range, designed for reliable detection in demanding industrial environments. With a robust cylindrical M30 design, it ensures durability, precision, and consistent performance.

Manufacturer: Telemecanique
Type: Inductive Sensor
Model: XS1M30PA370

Technical Information

• Range of Product: Telemecanique Inductive Proximity Sensors XS
• Sensor Name: XS1
• Sensing Range: 15 mm
• Operating Voltage: 12 / 48 V DC
• Switching Capacity: 200 mA
• Detector Flush Mounting Acceptance: Flush Mountable
• Signal Output: PNP
• Switching Output: Normally Open
• Sensor Design: Cylindrical M30
• Electrical Connection: Male Connector
• Diameter, Length: 30 mm, 62 mm
• Degree of Protection: IP68
• Detection Face: Frontal
• Thread Type: M30 x 1.5
• Front Material: PPS
