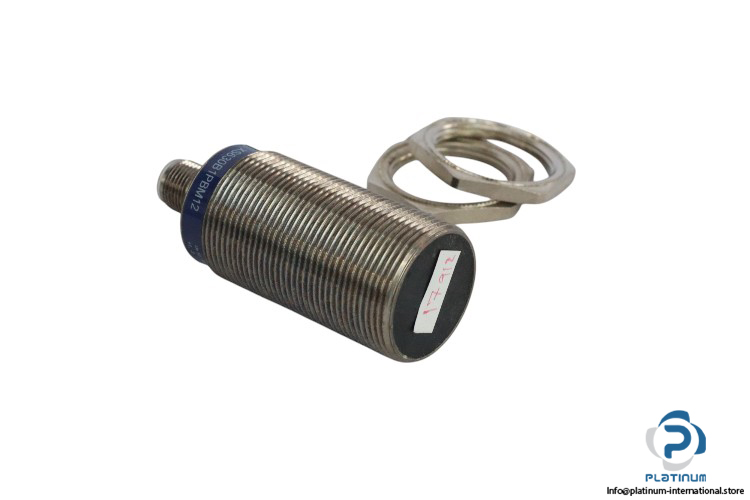

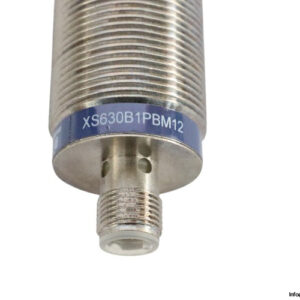

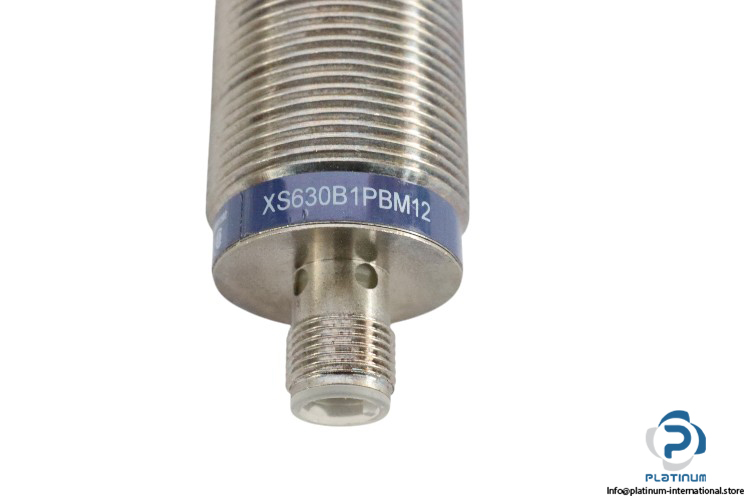

Telemecanique XS630B1PBM12 Inductive Sensor
The Telemecanique XS630B1PBM12 Inductive Sensor offers 15 mm sensing range, PNP output, and IP67 protection, ideal for flush mounting in industrial automation systems.
Telemecanique XS630B1PBM12 Inductive Sensor
The Telemecanique XS630B1PBM12 Inductive Sensor is a robust and high-performance sensor designed for precise metal object detection in industrial environments. Featuring a nominal sensing distance (Sn) of 15 mm, this sensor operates with a rated supply voltage range of 12 to 48 V DC and a rated current of 200 mA. The PNP output, with a normally closed (NC) contact, ensures reliable performance in automation systems. The sensor is flush mountable, making it ideal for integration into a variety of industrial applications.
- Manufacturer: Telemecanique
- Type: Inductive Sensor
- Model: XS630B1PBM12
Technical Specifications:
- Body Type: Fixed
- Nominal Sensing Distance (Sn): 15 mm
- Rated Supply Voltage (Us): 12…48 V DC
- Rated Current: 200 mA
- Output Function: 1 NC
- Output Type: PNP
- Electrical Connection: Male connector M12 4 pins
- Mounting: Flush mountable
- Type of Output Signal: Discrete
- Wiring Technique: 3-wire
- ISO Thread: M30 x 1.5
- Material: Metal
- Degree of Protection: IP67
- Enclosure Material: Nickel plated brass
- Ambient Temperature: -25…70 °C
- Size: 74 mm
Built to withstand harsh environments, the Telemecanique XS630B1PBM12 Inductive Sensor offers reliable detection and high durability. Its IP67 protection ensures protection from dust and water, while its nickel-plated brass housing provides excellent mechanical strength. This sensor is ideal for applications in automation and manufacturing systems where precision and environmental resilience are critical.
