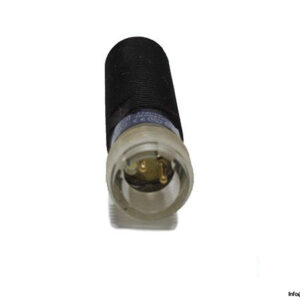

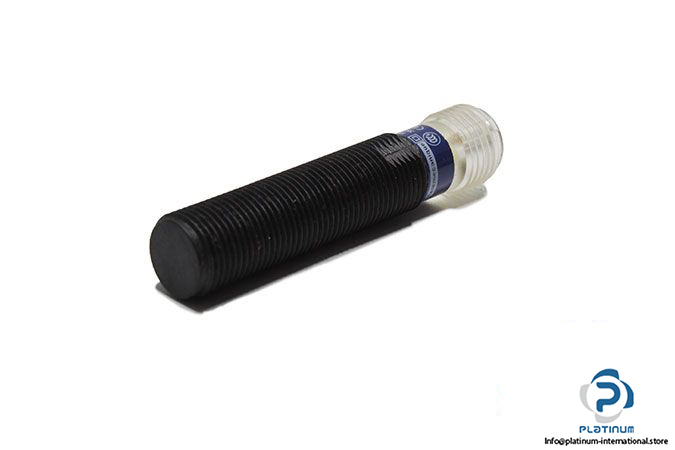

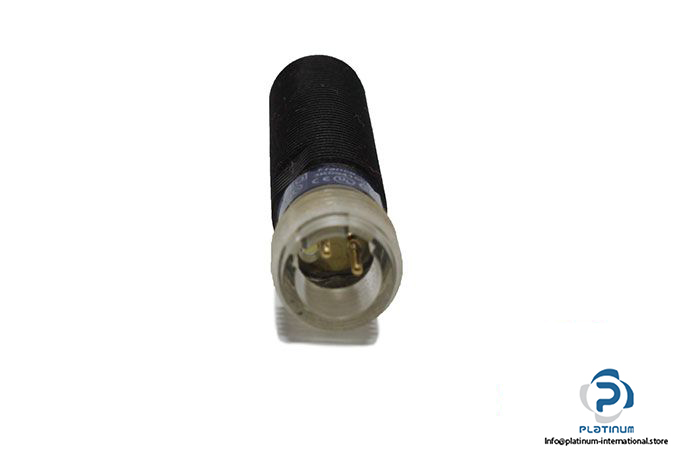

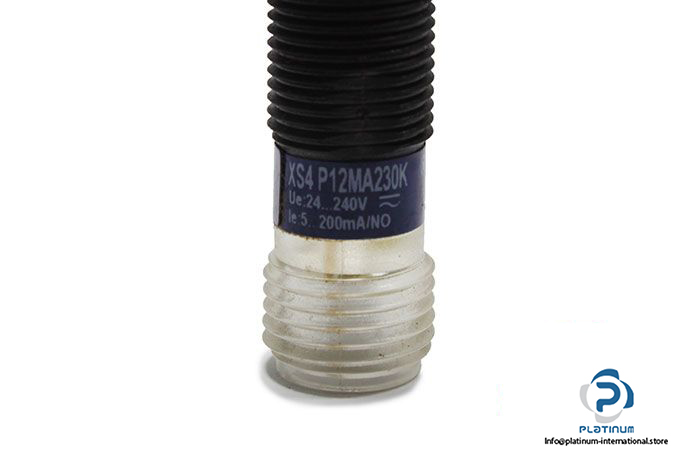

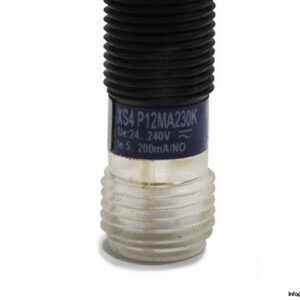

Manufacturer: Schneider / Telemecanique

Type: Inductive Sensor

Model: XS4P12MA230K

Sensor Design: Cylindrical M12

Detector Flush Mounting Acceptance: Non flush mountable

Material: Plastic

Wiring Technique: 2-wire

Nominal Sensing Distance: 4 mm

Discrete output function: 1 NO

Electrical Connection: Male connector 1/2″20 UNF, 3 pins

Rated Supply Voltage: 24 … 240 VAC/DC

Frequency: 50/60 Hz

Switching Capacity: 5…200 mA

Degree of Protection: IP67

Thread Type: M12 x 1

Ambient Air Temperature for Operation: -25 … 70 °C

Weight: 0.01 K
