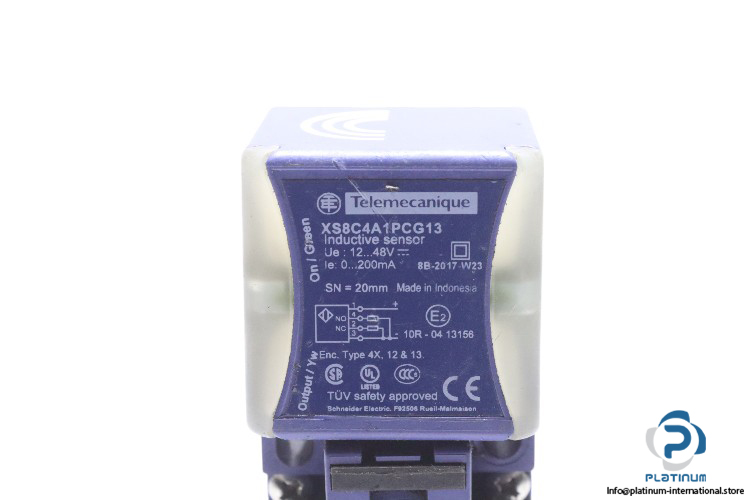

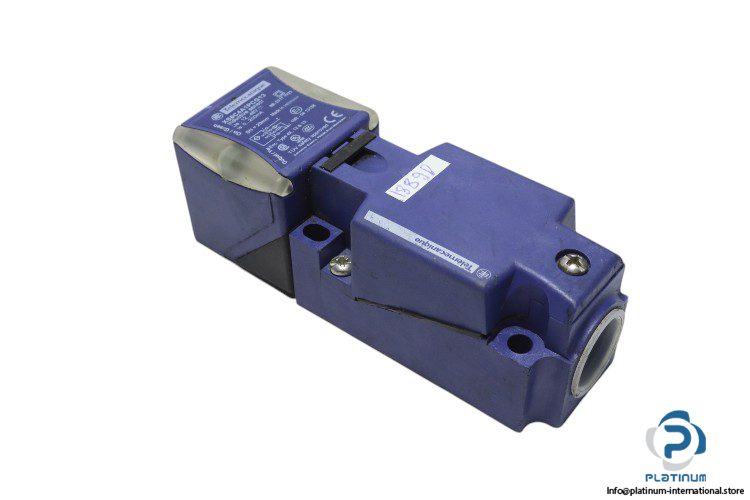

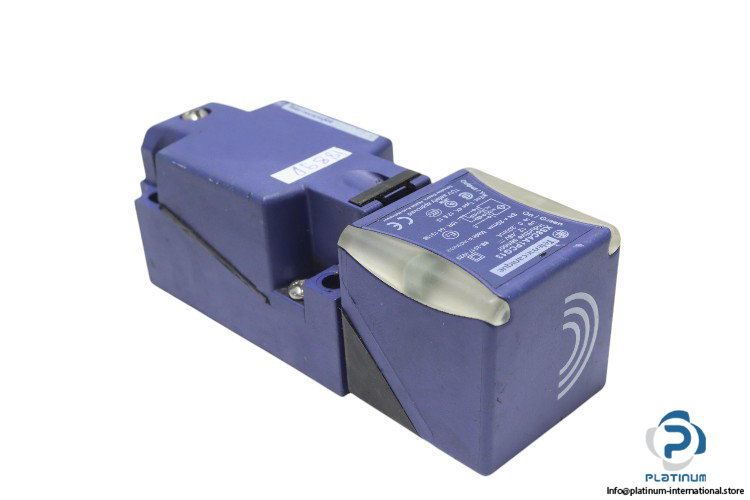

Telemecanique XS8C4A1PCG13 Inductive Proximity Sensor
The **Telemecanique XS8C4A1PCG13 Inductive Proximity Sensor** offers reliable performance with a **12 to 48 V DC rated supply voltage** and **max. 200 mA switching capacity**. Designed for **flush mounting**, it features a **nominal sensing distance (Sn)** of **20 mm**, with **1 NO and 1 NC discrete output function**. With an **IP67, IP65, and IP69K** degree of protection, this sensor is ideal for use in harsh industrial environments. The **PBT enclosure material** ensures durability, while the sensor operates within an **ambient temperature range** of **-25 to 70 °C**.
- Manufacturer: Telemecanique
- Type: Inductive Proximity Sensor
- Model: XS8C4A1PCG13
Technical Information
- Rated Supply Voltage: 12 to 48 V DC
- Switching Capacity: Max. 200 mA
- Electrical Connection: Screw-clamp terminals
- Body Type: Fixed
- Mountable: Flush
- Material: Plastic
- Enclosure Material: PBT
- Type of Output Signal: Discrete
- Wiring Technique: 4-wire
- Nominal Sensing Distance (Sn): 20 mm
- Discrete Output Function: 1 NO, 1 NC
- Output Circuit Type: DC
- Discrete Output Type: PNP
- Front Material: PBT
- Degree of Protection: IP67, IP65, IP69K
- Ambient Air Temperature for Operation: -25 to 70 °C
- Dimensions: 40 x 40 x 117 mm
The **Telemecanique XS8C4A1PCG13 Inductive Proximity Sensor** ensures reliable detection and protection in industrial automation, offering durability and high protection ratings for demanding environments.
