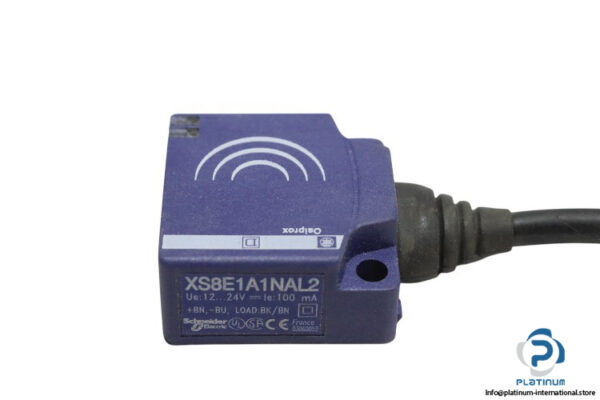

Telemecanique XS8E1A1NAL2 “ Inductive Proximity Switch Sensor

The Telemecanique XS8E1A1NAL2 inductive proximity switch sensor offers precise detection for industrial applications. With a nominal sensing distance of 15 mm and NPN output, this sensor is designed for reliable performance in a variety of environments.

• Manufacturer: Telemecanique / Schneider Electric
• Type: Inductive Proximity Switch Sensor
• Model: XS8E1A1NAL2
• Order No.: 014194

Technical Information:

• Range of Product: Osiprox XS
• Series Name: General Purpose
• Nominal Sensing Distance (Sn): 15 mm
• Voltage Limits: 12 to 24 V DC
• Switching Capacity (Ie): 100 mA
• Current Consumption, No-Load: 10 mA
• Detector Acceptance: Non Flush Mountable
• Output Type: NPN
• Output Function: 1 Normally Open
• Switching Frequency: 2000 Hz
• Body Type: Fixed
• Material: Plastic
• Enclosure Material: PBT
• Connection: Cable 2m, 3 Wire
• Dimensions: 26 x 26 x 13 mm
• Degree of Protection: IP68
• Ambient Temperature: -25 to 70 °C
