Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  Diffuse Photoelectric Sensor

Series Name: General PURPOSE Single Mode

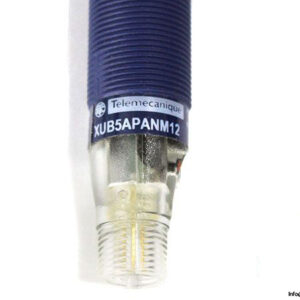

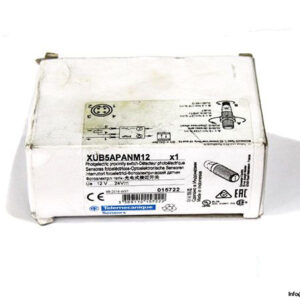

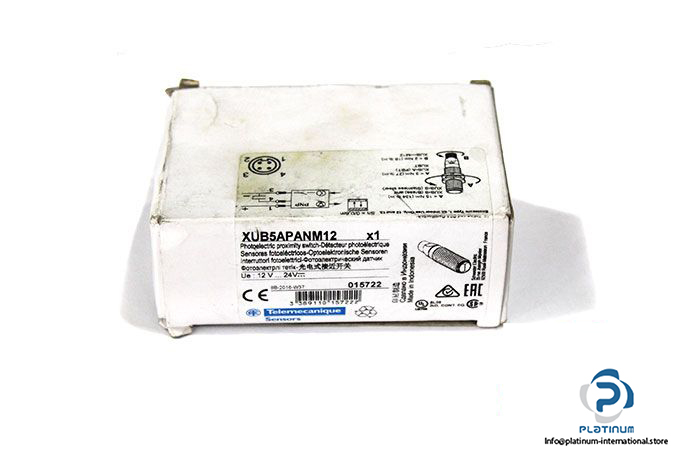

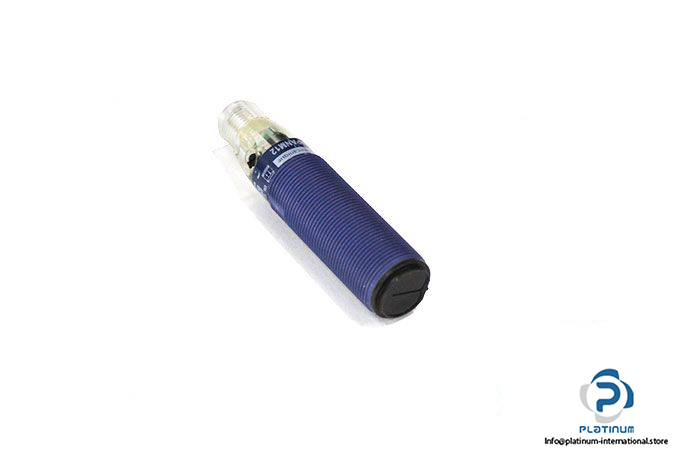

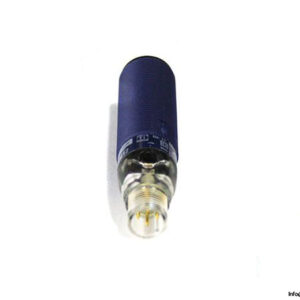

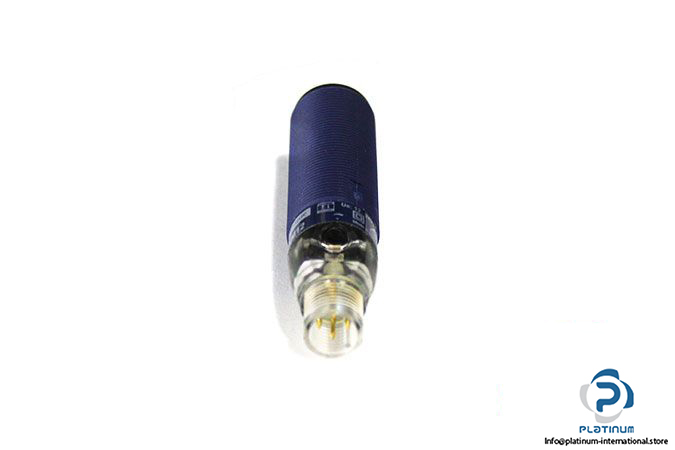

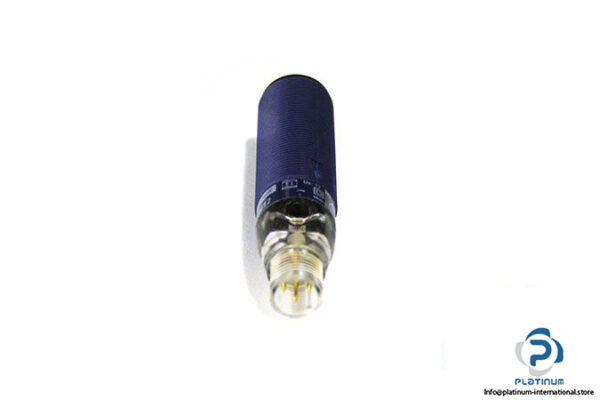

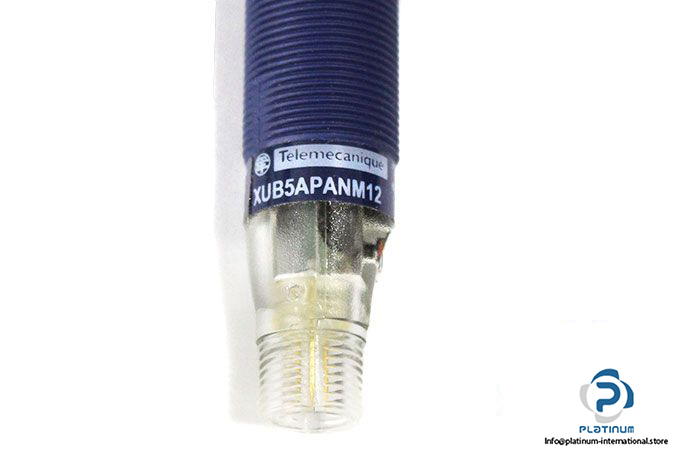

Model: XUB5APANM12

Emission: Infrared Diffuse

Nominal Sensing Distance: 0.6 m

Operating Voltage: 12 … 24 V DC

Switching Capacity: <= 100 mA
Discrete Output Type: PNP

Discrete Output Function: Normally Open

No-Load Supply Current: 35 mA

Maximum Voltage Drop: < 1.5 V
Switching Frequency: <= 500 Hz
Line of Sight Type: Axial

Sensor Design: Cylindrical M18

Electrical Connection: Male Connector M12, 4-Pin

Diameter, Length: 18, 78 mm

Degree of Protection: IP65

Ambient Operating Temperature: -25 … 55 °C

Housing Material: Plastic

Enclosure Material: PBT
