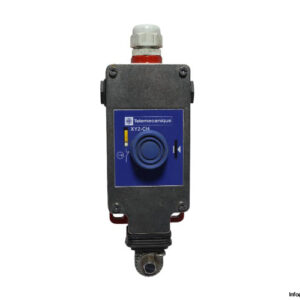

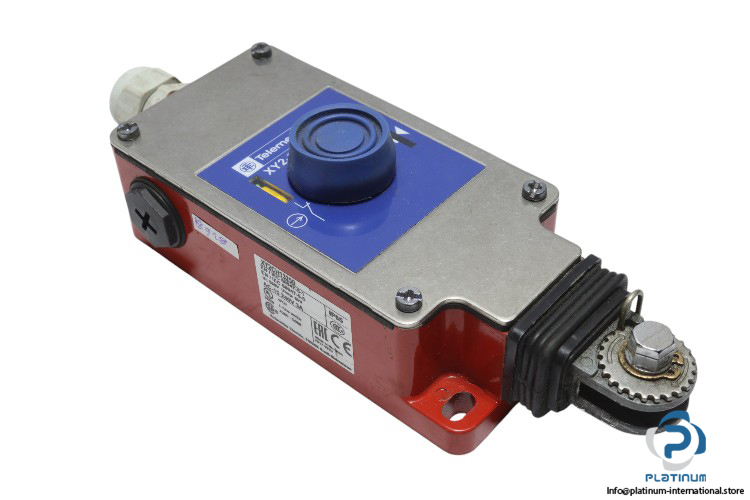

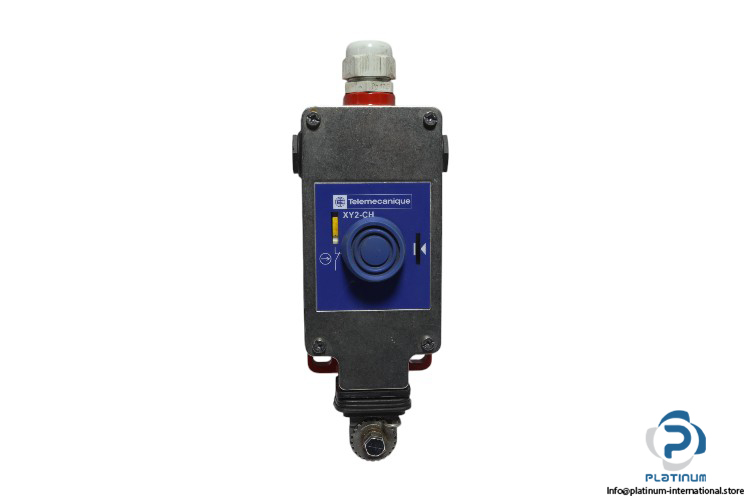

Telemecanique XY2CH13250 Latching Emergency Stop Rope Pull Switch
The Telemecanique XY2CH13250 Latching Emergency Stop Rope Pull Switch is designed to provide a reliable and efficient emergency stop solution for industrial applications. This safety device ensures the immediate stopping of machinery in the event of an emergency by pulling the rope connected to the switch. It features 1 NC (Normally Closed) and 1 NO (Normally Open) contact, providing flexibility for integration into various control systems.

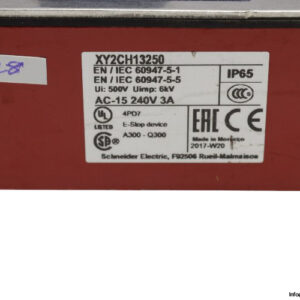

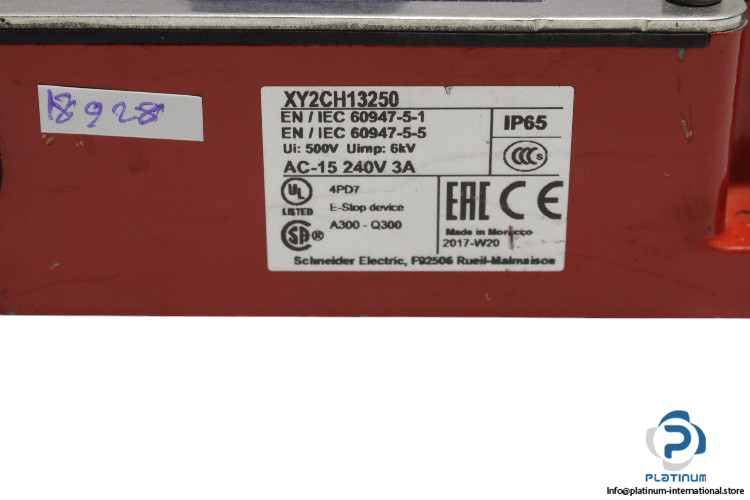

The switch is rated for a rated insulation voltage (Ui) of 500 V for standard conditions and 300 V for lower voltage systems. It offers a rated impulse withstand voltage (Uimp) of 6 kV, providing protection against electrical surges and spikes. With a rated operational current (Ie) of 3 A at 240 V, AC-15, and a conventional enclosed thermal current (Ithe) of 10 A, it delivers high performance in controlling electrical loads safely.
Equipped with screw clamp terminals for electrical connections, the XY2CH13250 switch is easy to install and secure. The device is built with a robust housing and features an IP65 protection rating, ensuring it is dust-tight and protected from water ingress, making it ideal for harsh industrial environments. It operates within an ambient temperature range of -25°C to 70°C, providing versatility in various temperature conditions.
Manufacturer: Telemecanique
Type: Latching Emergency Stop Rope Pull Switch
Model: XY2CH13250
Technical Information:
- Rated Insulation Voltage (Ui): 500 V, 300 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Rated Operational Current (Ie): 3 A at 240 V, AC-15
- Conventional Enclosed Thermal Current (Ithe): 10 A
- Contacts: 1 NC + 1 NO
- Connections – Terminals: Screw clamp terminal
- Distance Between Cable Supports: 5 m
- Tightening Torque: 0.8…1.2 N.m
- Degree of Protection (IP): IP65
- Ambient Temperature: -25…70 °C
- Dimensions: 68 x 201 mm
The Telemecanique XY2CH13250 Latching Emergency Stop Rope Pull Switch provides a reliable and durable solution for ensuring the safety of machinery and personnel in emergency situations. Its robust construction and high-performance ratings make it ideal for use in a wide range of industrial environments.
