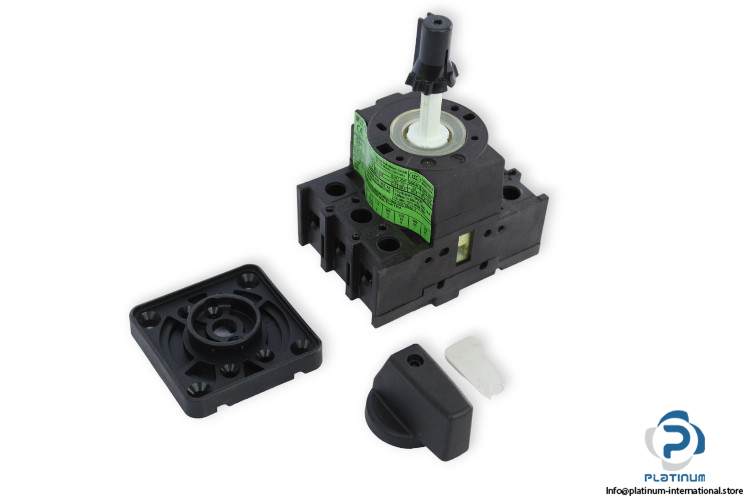

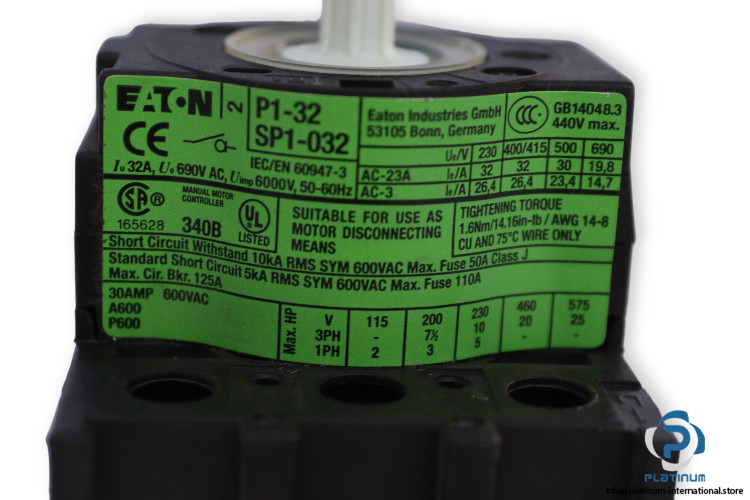

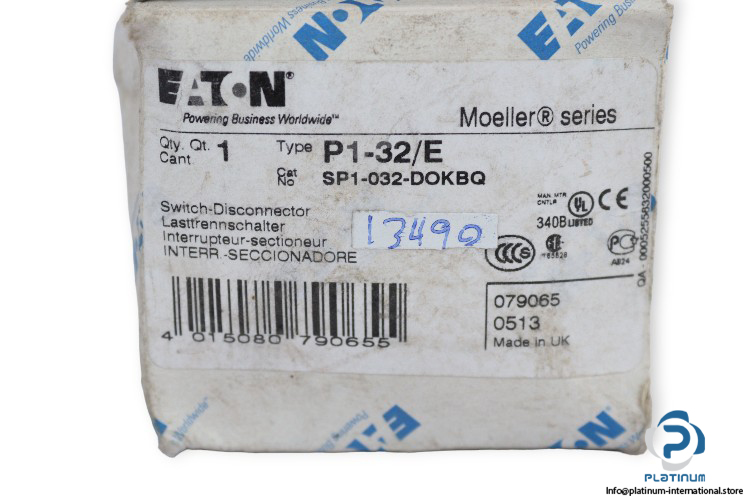

Eaton P1-32/E Switch Disconnector

Manufacturer: EATON
Type: Switch Disconnector
Model: P132E
Alternative Model: SP1032DOKBQ
Part No.: 079065

Series: Moeller
Tradename: P1
Fitted with: Black Thumb Grip and Front Plate
Rated Operational Voltage: 690 V AC
Rated Operational Current: 32 A
Frequency: 50 … 60 Hz
Power: 13 … 18.5 kW
Rated Impulse Voltage (Uimp): 6 kV
No. of Poles: 3-Pole
Short Circuit withstand: 10 kA
Protection Class: IP65
Ambient Temperature: -25 … 50 °C
Dimensions: 70 x 49 x 95 mm
