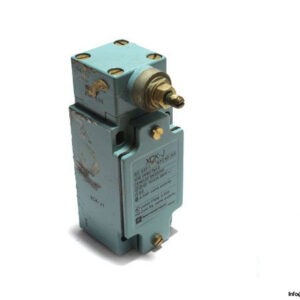

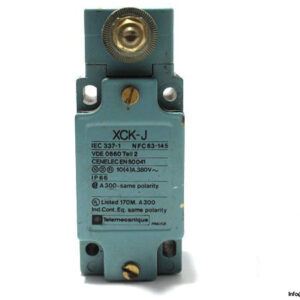

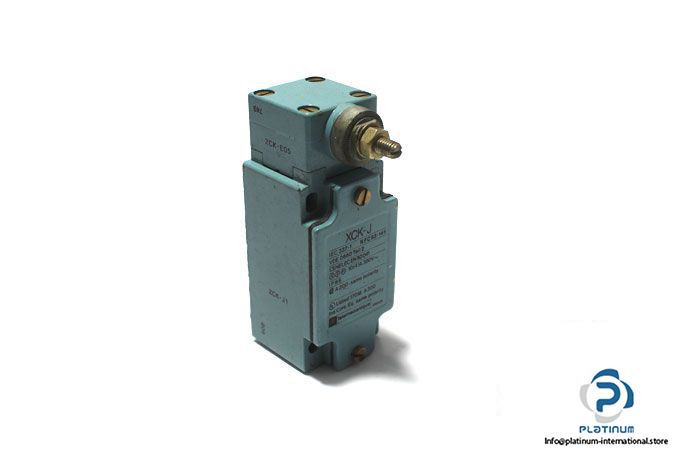

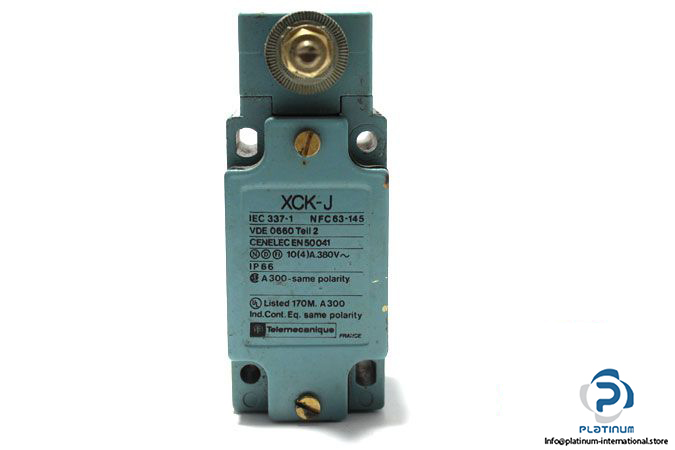

Telemecanique XCKJ / ZCKJ1 Limit Switch
The Telemecanique XCKJ / ZCKJ1 Limit Switch is a robust industrial switch designed for precise position detection in automation and mechanical machinery. Built with a durable metal housing and snap-action contacts, it delivers long-lasting performance in harsh environments. This model includes the ZCK-E05 plunger head and meets EN/IEC 60947-5-1 standards, ensuring high reliability and safety compliance for industrial control systems.
Manufacturer: Telemecanique
Type: Limit Switch
Body Model: XCKJ

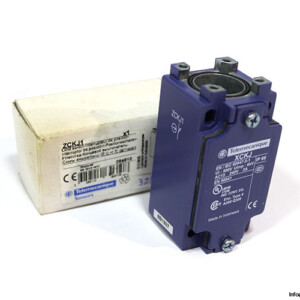

Model: ZCKJ1
Successor Model: ZCKJ1H29

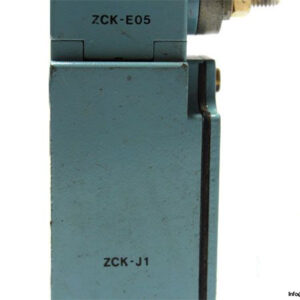

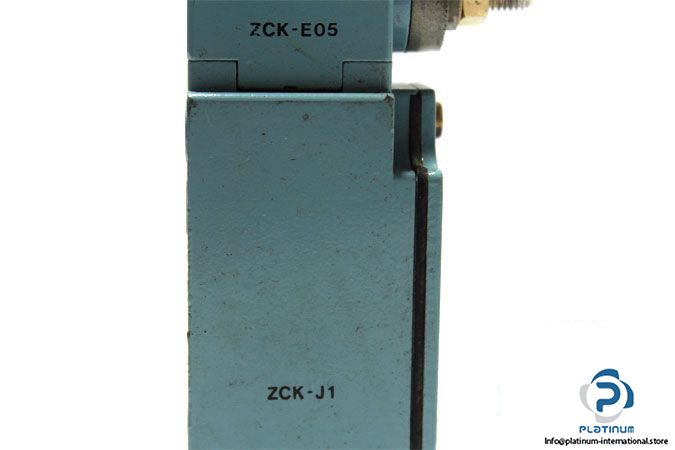

Head Model: ZCK-E05
Technical Information
- Body Type: Fixed
- Actuator Type: Plunger
- Body Material: Metal
- Cable Entry: 1 Entry Tapped for Pg 13.5 Cable Gland
- Contacts Type and Composition: 1 NC + 1 NO
- Contact Operation: Snap Action
- Contacts Material: Silver Plated Contacts
- Standards Compliance: EN / IEC 60947-5-1
- Rated Insulation Voltage (Ui): 500 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- AC-15 Rating: 240 V / 3 A
- Enclosure Type: 4, 12
- Protection Degree: IP66
- Housing Material: Metal
