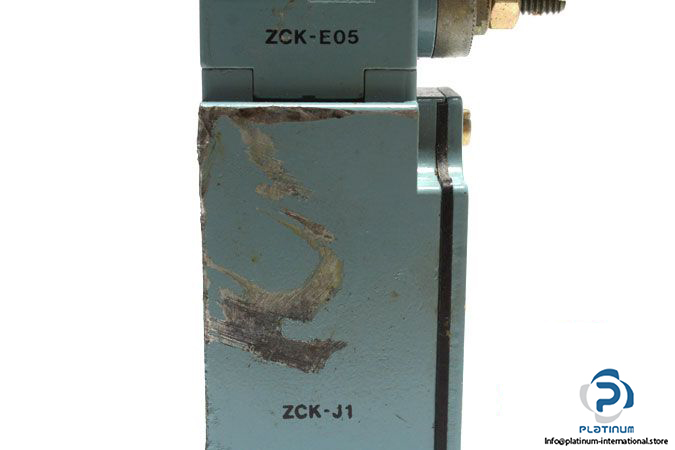

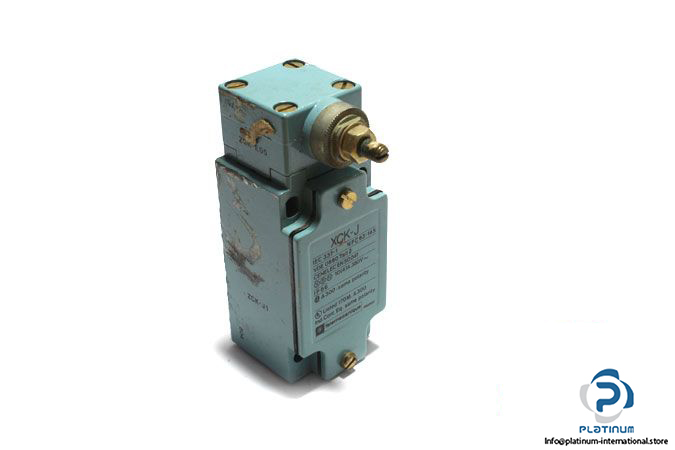

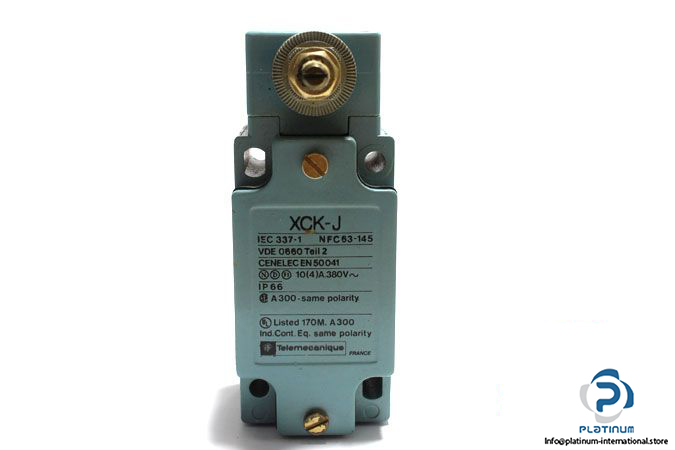

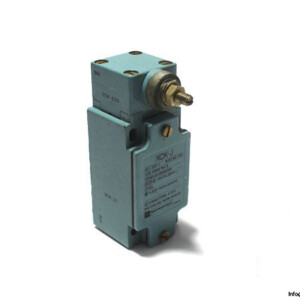

Telemecanique ZCK-J1 Limit Switch
Manufacturer: SCHNEIDER TELEMECANIQUE
Type: Limit Switch
Device Short Name: ZCKJ
Product Compatibility: XCKJ
Model: ZCK-J1
Successor Model: ZCKJ1H29
Head Model: ZCK-E05
Output Configuration: 1 Normally open + 1 Normally closed
Contact Operation: Snap action
Actuator Type: Plunger
Switching Voltage max.: 380 V AC
Contact Current max.: 10 A
Connection: 1 entry tapped for Pg13.5 cable gland
Protection Class: IP66
Ambient Operating Temperature: -25 … 70°C
Housing Material: Metal
Mounting Dimensions: 30 x 60 mm
Weight: 0.5 Kg
