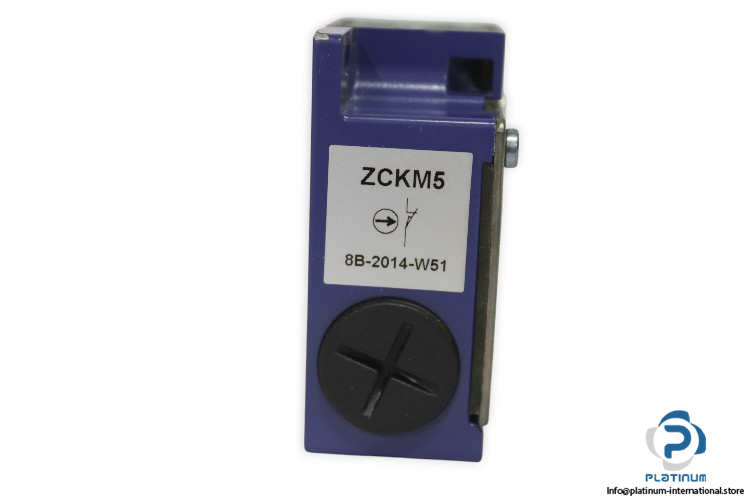

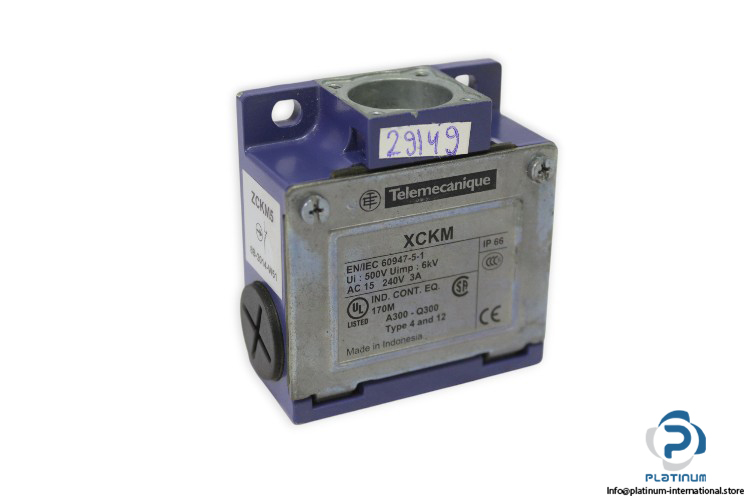

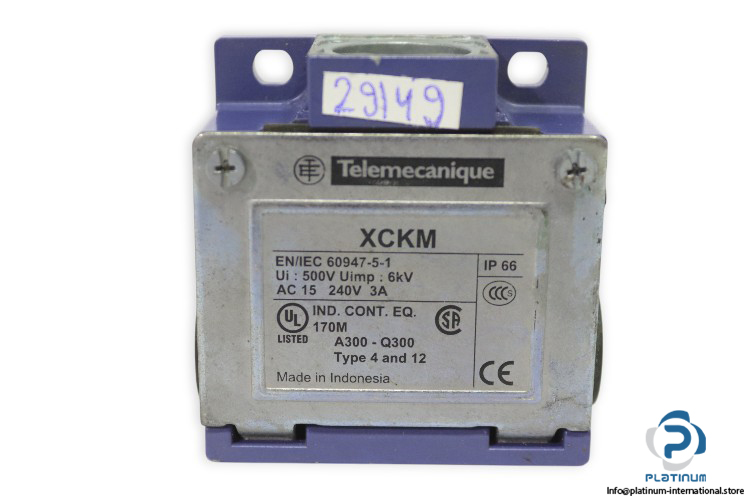

Telemecanique ZCKM5 Limit Switch Body
The Telemecanique ZCKM5 is a durable limit switch body from the XC series, designed for reliable performance in industrial environments. With a robust metal housing and high protection rating, it ensures long-lasting operation in demanding applications.
Manufacturer: Telemecanique
Type: Limit Switch Body
Model: ZCKM5
Part No.: 8B-2014-W51
Series: XC
Device Short Name: ZCKM
Product Compatibility: XCKM
Technical Information
- Body Material: Metal
- Body Type: Fixed
- Cable Entry: 3 entries tapped for Pg 11 cable gland
- Contacts Type and Composition: 1 NC + 1 NO
- Contact Operation: Slow-break, break before make
- Contacts Material: Silver plated contacts
- Switching Voltage Max.: 240 V AC
- Contact Current Max.: 3 A
- Standard: 60947-5-1
- Protection Class: IP66
