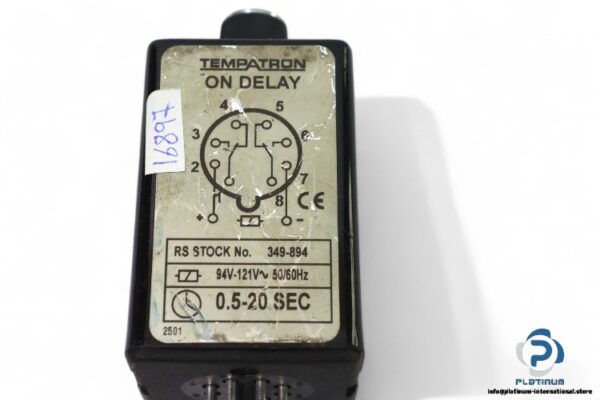

Manufacturer: Tempatron
Type: TIMER RELAY
Model: 349-894

Voltage: 94 … 121 V

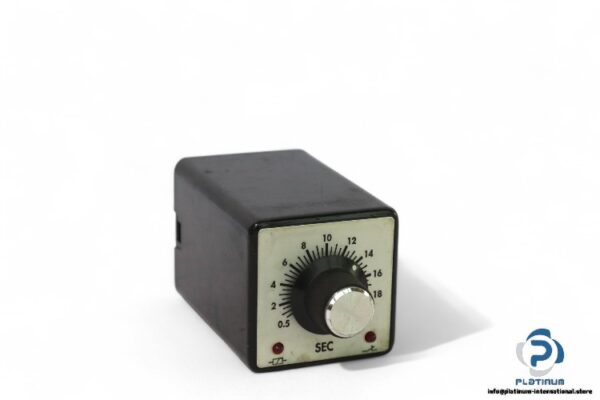

Time Range: 0.5 … 20 sec
Frequency: 50/60 Hz
Number of Contacts: 2
Maximum Current: 10 A

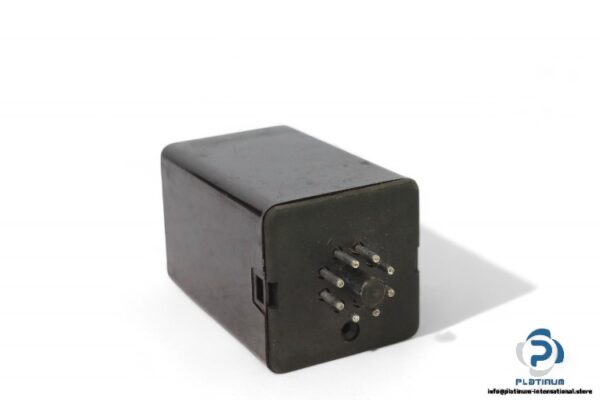

Terminal Type: 8-Pin Connector
Power Supply: External
Dimension: 48 x 48 x 108 mm
Operating Temperature: -10….60 °C
Contact Material: Silver Cadmium Oxide
Mounting Type: Plug In
