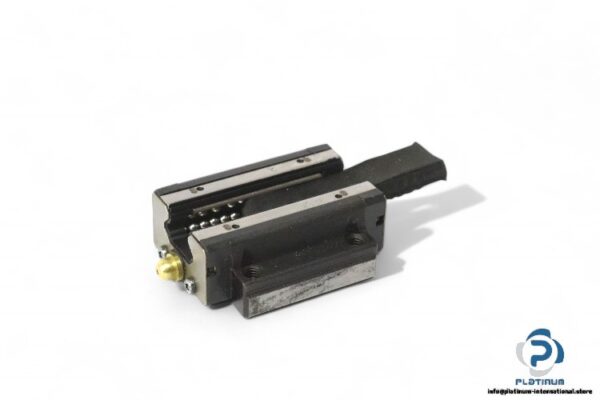

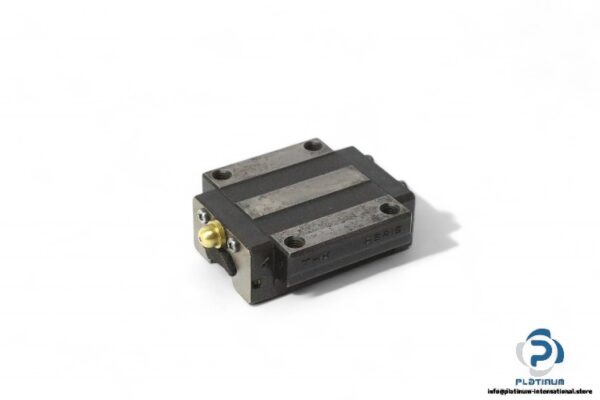

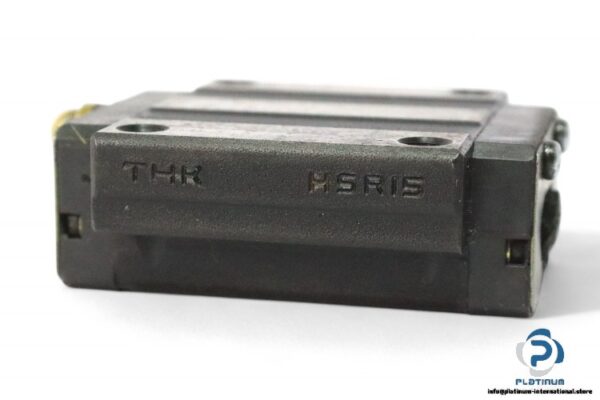

Manufacturer: THK
Type: LINEAR BEARING BLOCK
Model: HSR 15 / HSR 15A
Size: 15 mm
Block Type: The Flange with four tapped Holes.
System Height: 24 mm
Length L: 56.6 mm
Width W: 47 mm
B: 38 mm
C: 30 mm
Block Height K: 19.3 mm
Rail Width W1: 15 mm
Basic Dynamic Load Rating: 10.9 kN
Basic Static Load Rating: 15.7 kN
