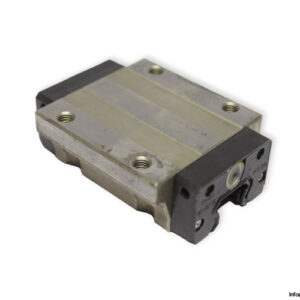

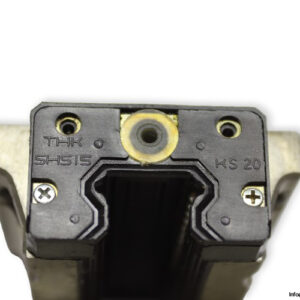

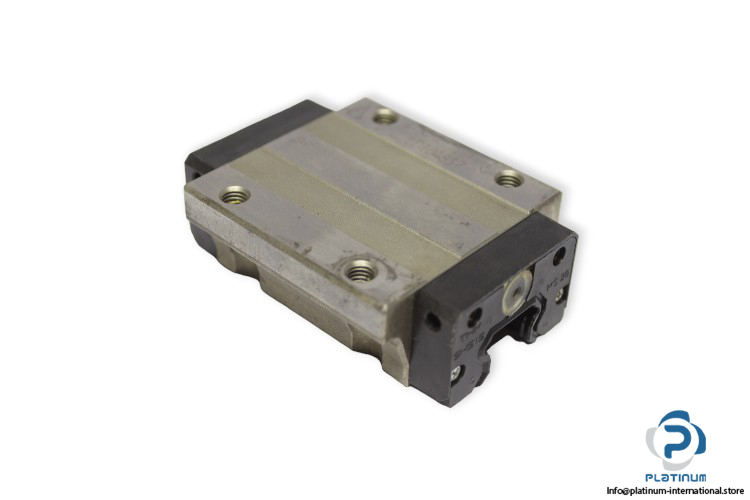

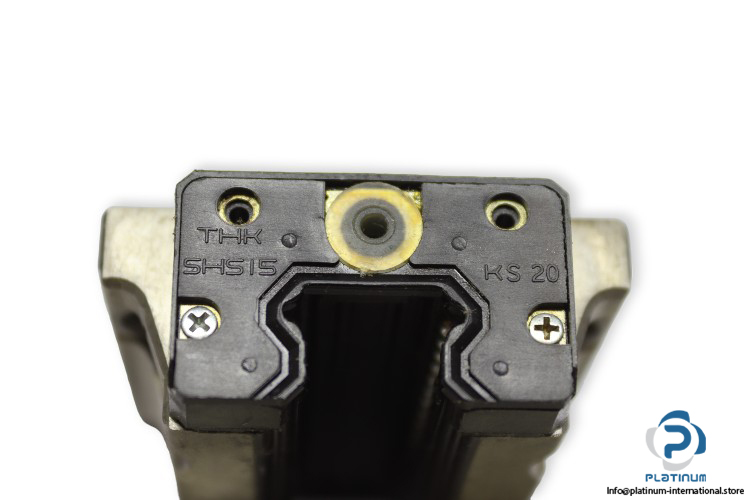

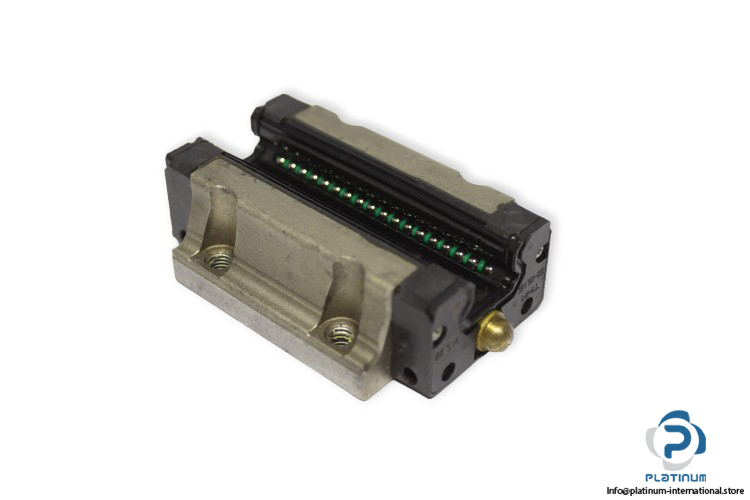

THK SHS 15C Linear Guide Rail Block
Used
In stock10 unitsReady to ship
Manufacturer:
THK
Type:
Linear Guide Rail Block
Model:
SHS 15C
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: THK
Type: Linear Guide Rail Block
Model: SHS 15C
Block Type: C
The flange of the LM block has tapped holes.Can be mounted from the top or the bottom.Used in places where the table cannot have,through holes for mounting bolts

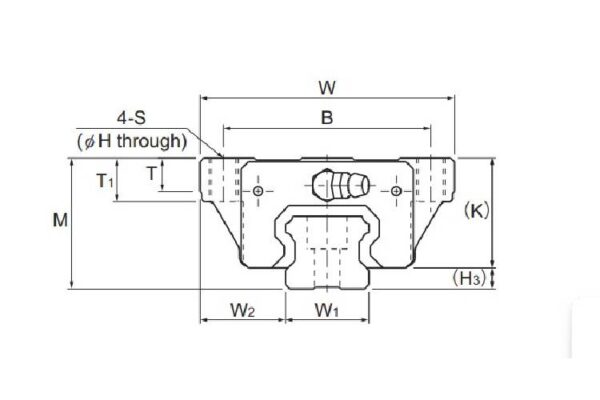

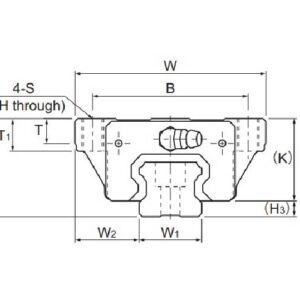

Outer dimensions:
Total Height M: 24 mm
Block Width W: 47 mm
Block Length L: 64.4 mm

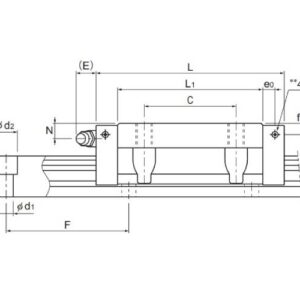

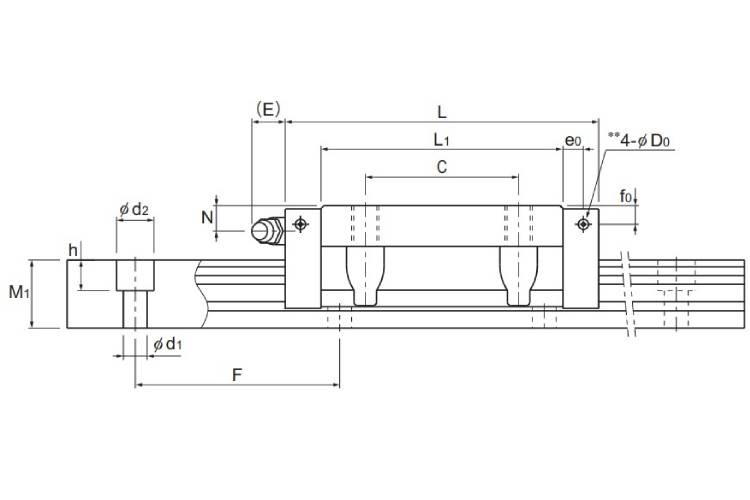

LBC block dimensions:
Height K: 21 mm
B: 38 mm
C: 30 mm
L1: 48 mm
W1: 15 mm
Basic Load Rating:
Dynamic C: 14.2 kN
Static C0: 24.2 kN
Mounting Dimensions:
Grease Nipple: PB1021B
