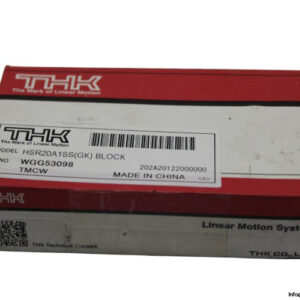

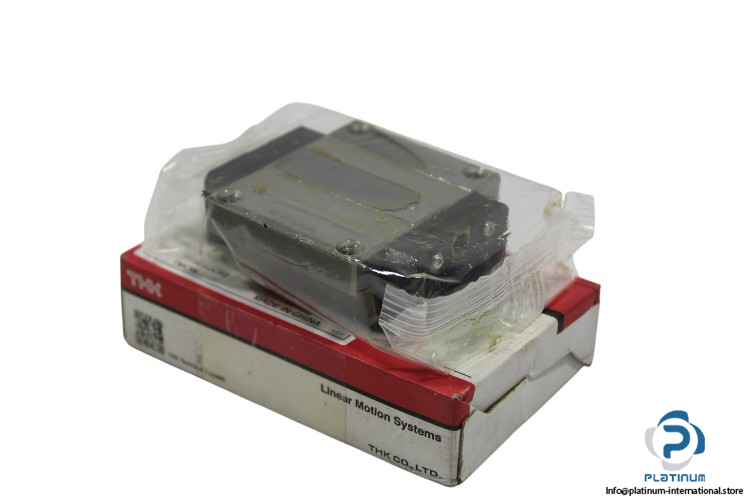

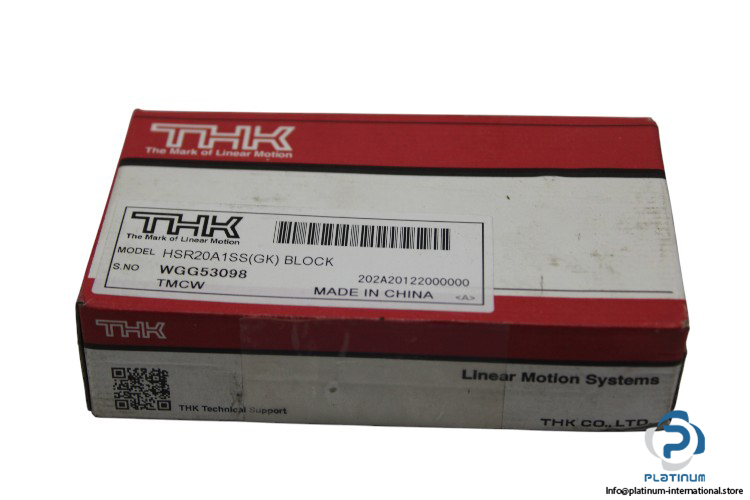

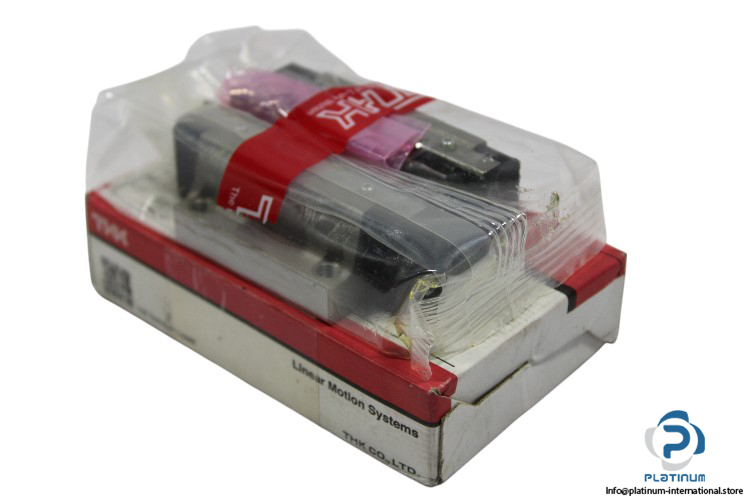

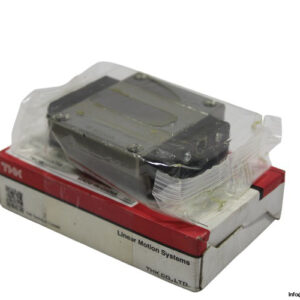

THK HSR20A1SS Linear Bearing Block
The THK HSR20A1SS Linear Bearing Block is engineered for precision motion applications, offering high load capacity and smooth linear movement. Designed with a flange-type block and advanced sealing system, it ensures durability and reliability in demanding environments.
- Manufacturer: THK
- Type: Linear Bearing Block
- Model: HSR20A1SS
Technical Information
- Size: 20
- Length: 74 mm
- Width: 63 mm
- Height: 30 mm
- Height of Block: 26 mm
- Block Type: Flange
- Basic Load Ratings:
- Dynamic Load Rating: 19.8 kN
- Static Load Rating: 27.4 kN
- Mounting Hole: M6
- Tapped Holes: 4
- Sealing: 1SS, with End Seal, Side Seal, and Inner Seal
