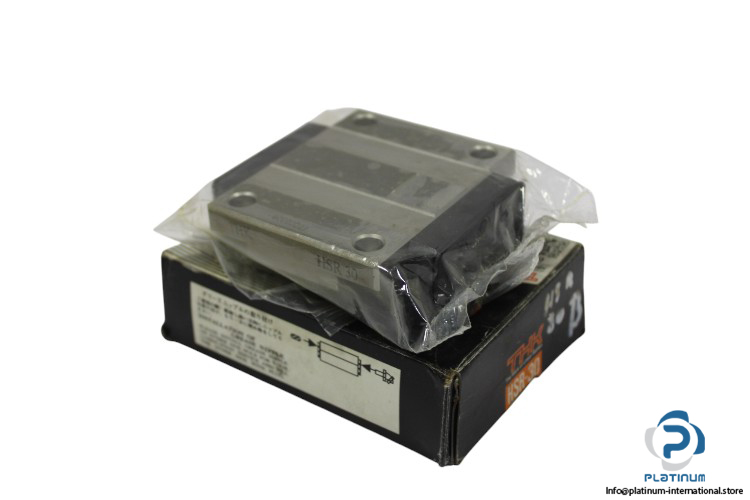

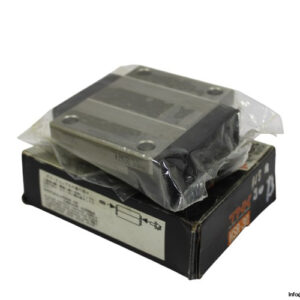

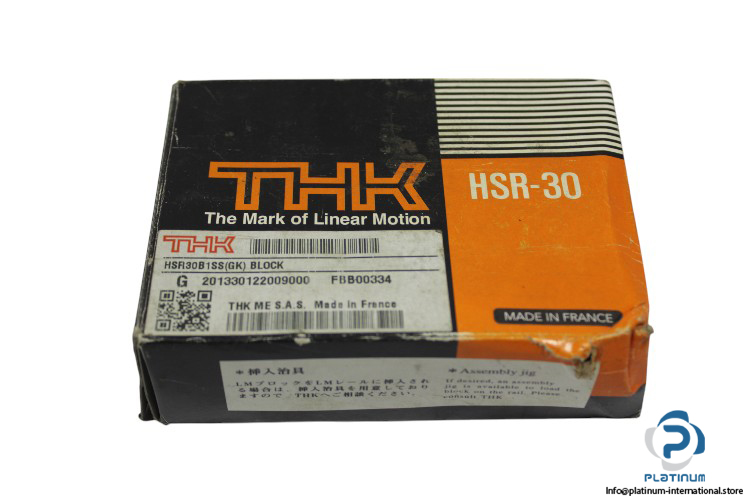

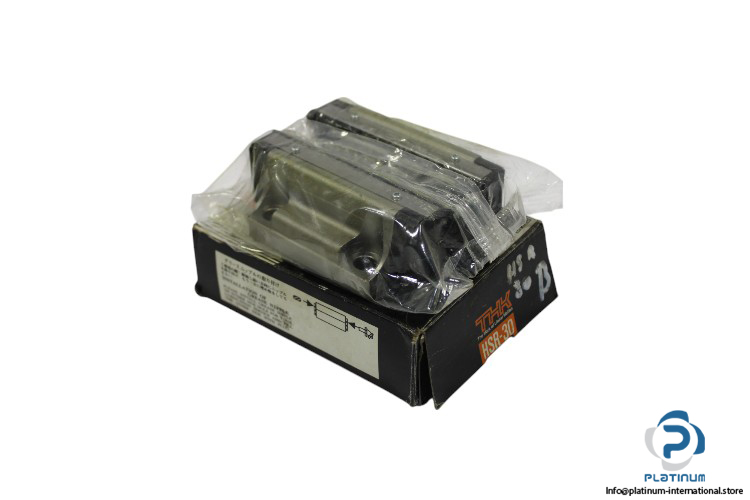

THK HSR30B1SS Linear Bearing Block
The THK HSR30B1SS Linear Bearing Block is engineered for precision motion applications, providing smooth linear movement and high load capacity. With its flange-type block and advanced sealing system, this bearing block ensures durability and efficiency in automation, robotics, and industrial machinery.
- Manufacturer: THK
- Type: Linear Bearing Block
- Model: HSR30B1SS
Technical Information
- Size: 30
- Length: 98 mm
- Width: 90 mm
- Height: 42 mm
- Height of Block: 35 mm
- Block Type: Flange
- Basic Dynamic Load Rating: 40.5 kN
- Basic Static Load Rating: 53.7 kN
- Through Holes: 4
- Seal: 1SS, with End Seal, Side Seal, and Inner Seal
- Type of LM Block: B
