Manufacturer: THK
Type: Linear Guide Rail Block
Model: SHS 15LC
Block Type: LM
The LM block has the same cross-sectional shape,as model SHS-C, but has
a longer overall LM,block length (L) and a greater rated load.

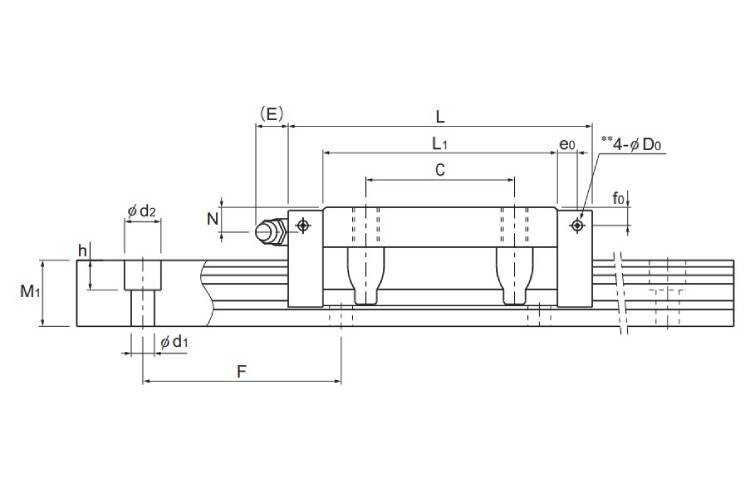

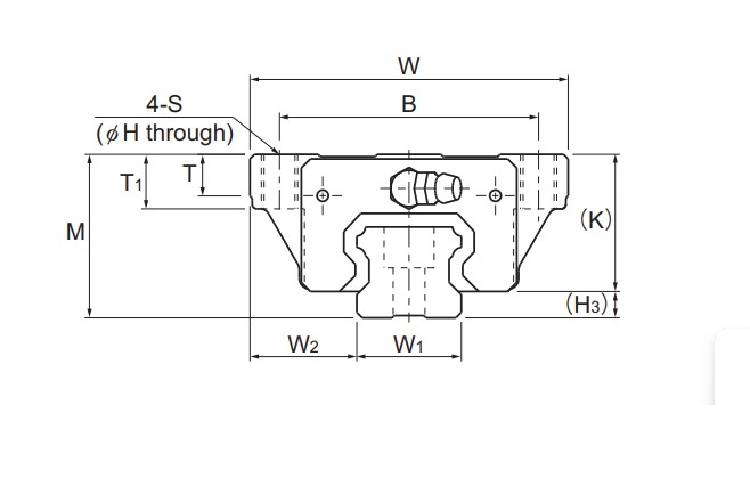

Outer dimensions:
Total Height M: 24 mm
Block Width W: 47 mm
Block Length L: 79.4 mm
LBC block dimensions:
Height K: 21 mm
B: 38 mm
C: 30 mm
L1: 63 mm
W1: 15 mm
Basic Load Rating:
Dynamic C: 17.2 kN
Static C0: 31.9 kN
Mounting Dimensions:
Grease Nipple: PB1021B
