TR ELECTRONIC CEV65M-00444 ABSOLUTE ENCODER

The TR ELECTRONIC CEV65M00444 Absolute Encoder is a precision feedback device engineered for high-resolution rotary position sensing in automation and motion control systems. Built with a durable housing, IP65 protection, and high-speed capability, it offers reliable performance in industrial environments.

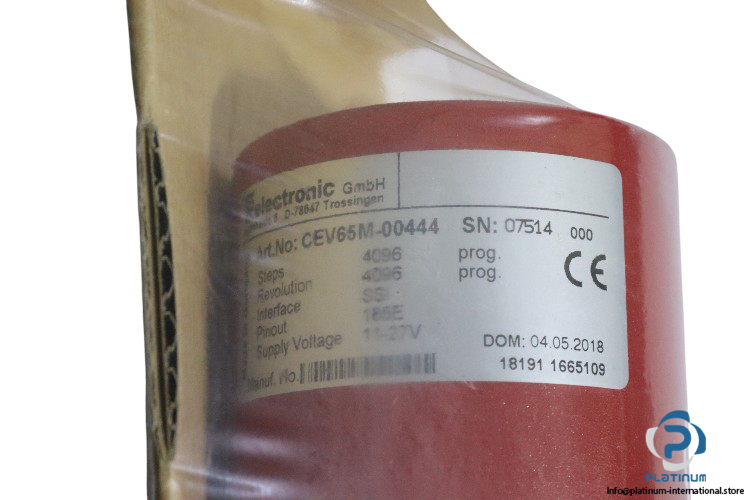

Manufacturer: TR ELECTRONIC

Type: Absolute Encoder

Model: CEV65M-00444

Part No.: 07514 / 18191 1665109

Shaft Diameter: 12 mm

Steps/Rev No.: 4,096 PPR

Revolution: 4096

Speed Max.: 6000 RPM

Output Interface: SSI RS422

Voltage Supply: 11 to 27 V DC

Flange Type: ZB80

Shaft Type: 10 FL/19,5

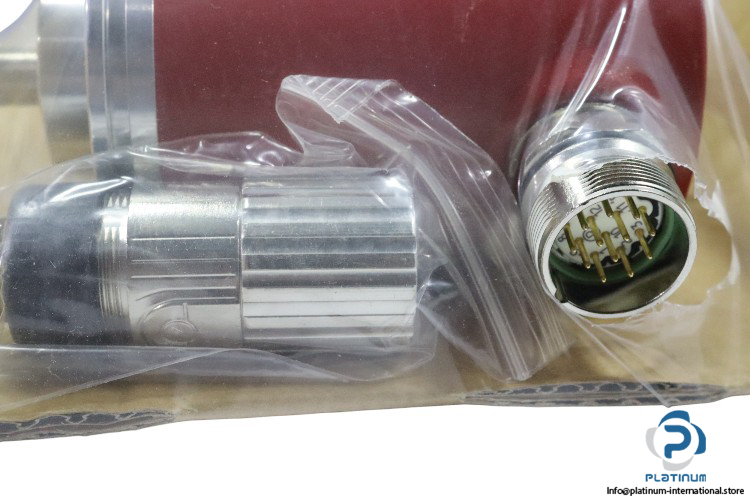

Electrical Connection: M23 Connector 12-Pin

Flange Diameter: 36 mm

Length, Diameter: 93 mm, 65 mm

Protection Class: IP65

Temperature: 0 to 60 °C
