Trans Link Take-Up Ball Bearing Unit UKT 211
Manufacturer: Trans Link
Type: Take-Up Ball Bearing Unit
Model: UKT 211
Housing No.: T211
Bearing No.: UK211
The Trans Link Take-Up Ball Bearing Unit UKT 211 is a high-quality component engineered for demanding industrial applications. With a robust design and durable materials, it is built to ensure reliable operation and optimal performance in a wide range of environments. Featuring a take-up housing design, this unit provides secure mounting and adaptability to varying system requirements.

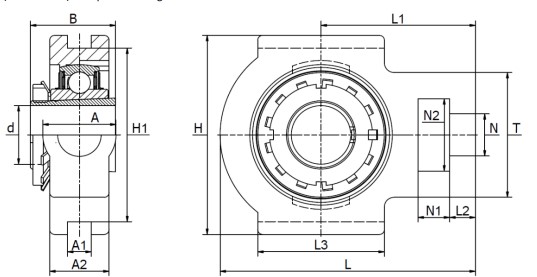

Technical Specifications:
- Shaft Diameter (d): 50 mm
- Overall Height: 146 mm
- Overall Length: 171 mm
- A: 64 mm
- Width of Inner Ring (Bi): 59 mm
- A2: 38 mm
- L1: 106 mm
- L3: 95 mm
- Housing Type: Take-Up
This bearing unit is ideal for use in mechanical systems requiring precision alignment and consistent performance. Its take-up housing type allows for easy installation and secure placement in various applications, ensuring smooth operation under varying loads.
