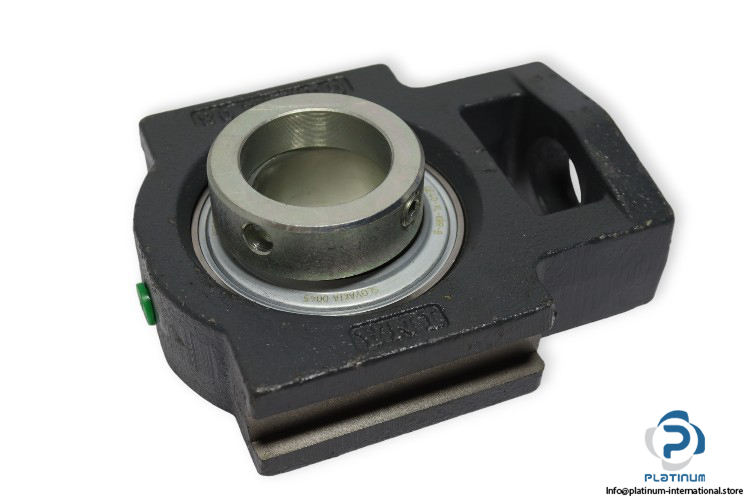

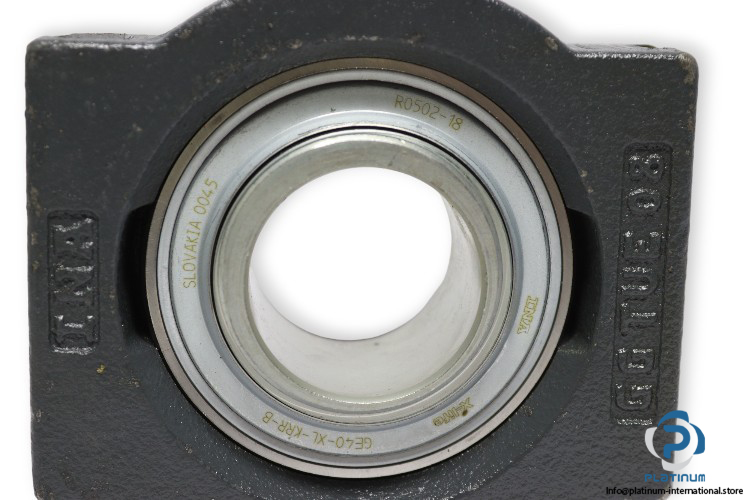

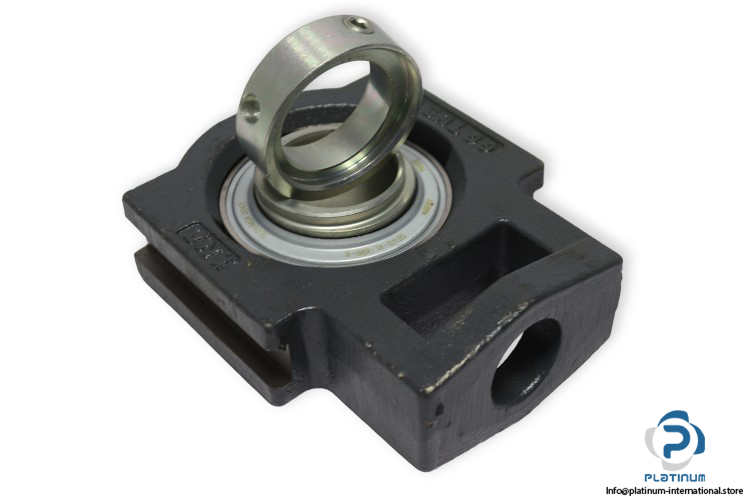

INA RTUE40-XL Take-UP Housing Unit
New
In stock1 unitReady to ship
Manufacturer:
INA
Type:
Take-up housing unit
Model:
RTUE40 XL
Housing No.:
GG.TUE08
Bearing No.:
GE40-XL-KRR-B
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: INA
Type: Take-up housing unit
Model: RTUE40 XL
Housing No.: GG.TUE08
Bearing No.: GE40-XL-KRR-B

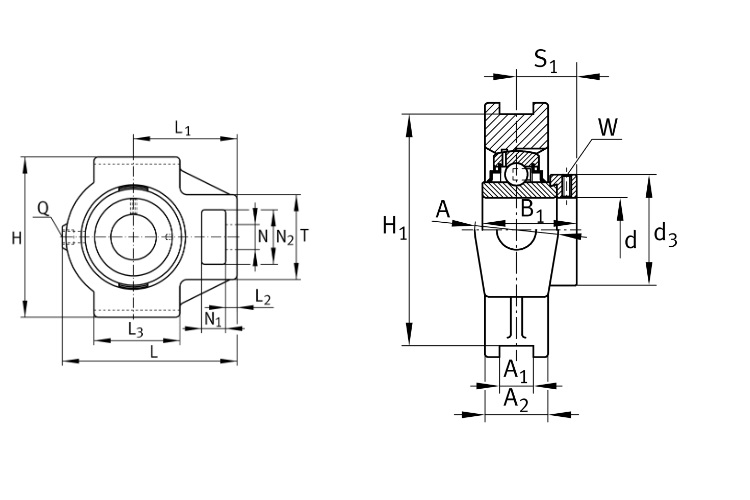

Bore diameter d: 40 mm
Height H: 115 mm
Length total L: 141 mm
Locking collar total width B1: 56.5 mm
Fixing bore N: 29 mm
Width guidance groove A1: 16 mm
Distance guidance grooves H1: 102 mm
Height housing fixing side T: 82 mm
Length guidance groove L3: 82 mm
Distance shaft axis L1: 88 mm
Housing type: Take-up
locking Device: eccentric locking collar
Material: GG, Grey cast iron
