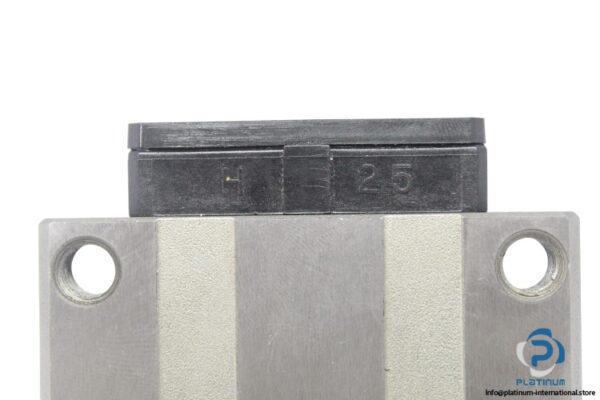

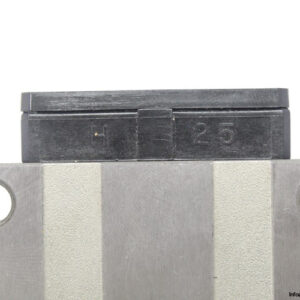

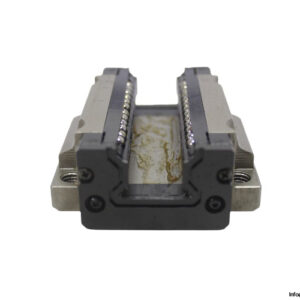

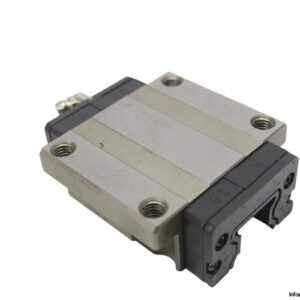

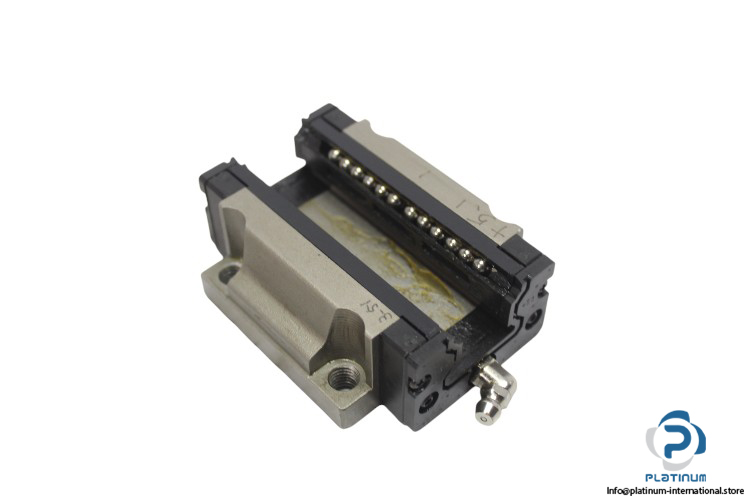

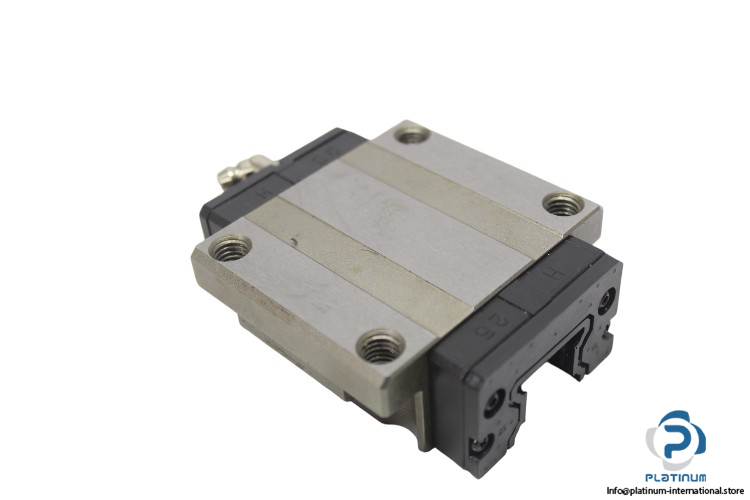

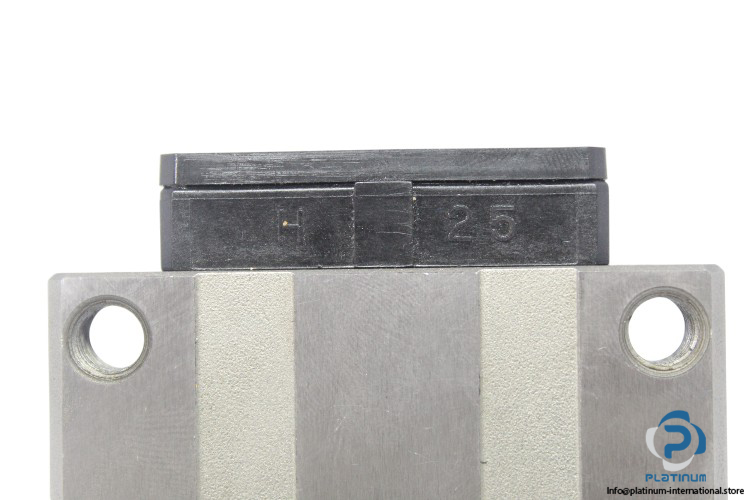

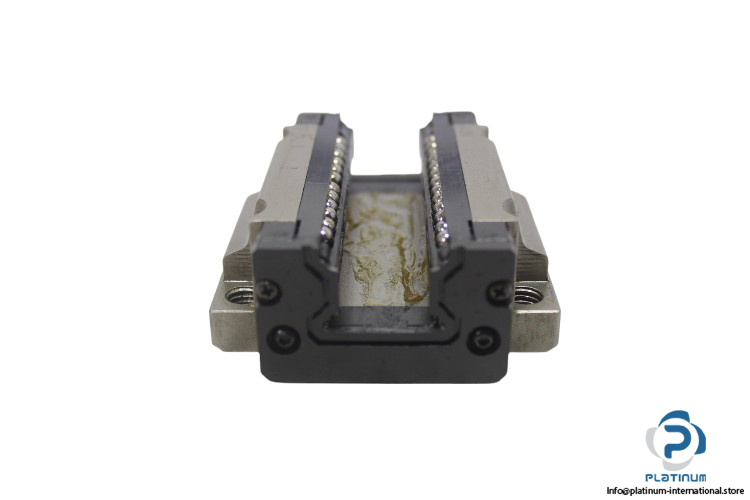

TSUBAKI H25EA Linear Bearing Block

The TSUBAKI H25EA Linear Bearing Block offers high precision and reliability for linear motion systems. It features a flange type block and a variety of sizes, making it ideal for applications requiring robust load ratings and precise positioning.

Manufacturer: TSUBAKI

Type: Linear Bearing Block

Model: H25EA

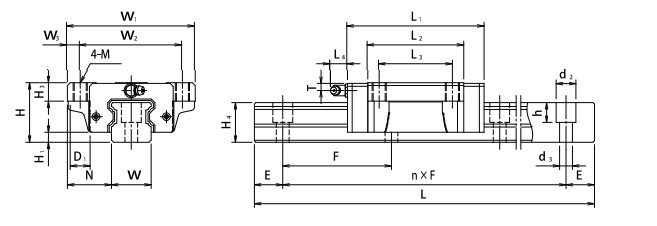

Technical Information:

• Size: 25 mm
• Total Height (H): 36 mm
• Block Height (H-H1): 29.5 mm
• Width (N): 23.5 mm
• Width (W1): 70 mm
• Width (W3): 6.5 mm
• Block Length (L1): 84 mm
• L2: 59 mm
• L3: 45 mm
• W2: 57 mm
• Block Type: Flange Type
• Mounting Hole: 4 Tapped holes (M8×10)

Basic Load Ratings:

• Dynamic C50: 20950 N
• Dynamic C100: 16630 N
• Static C0: 38290 N
