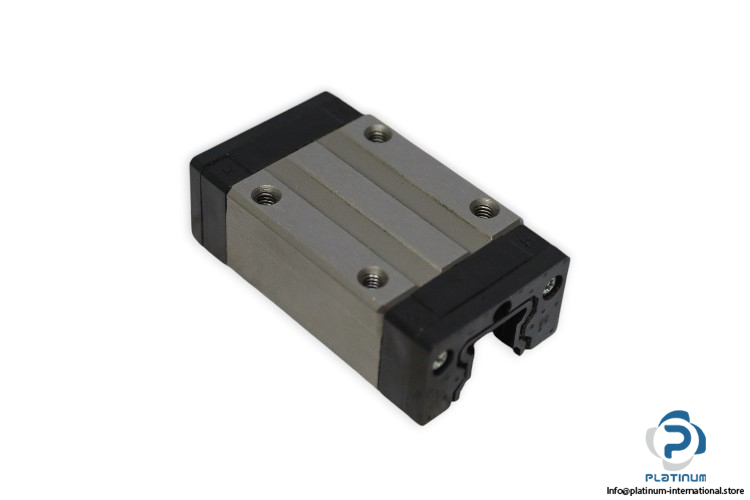

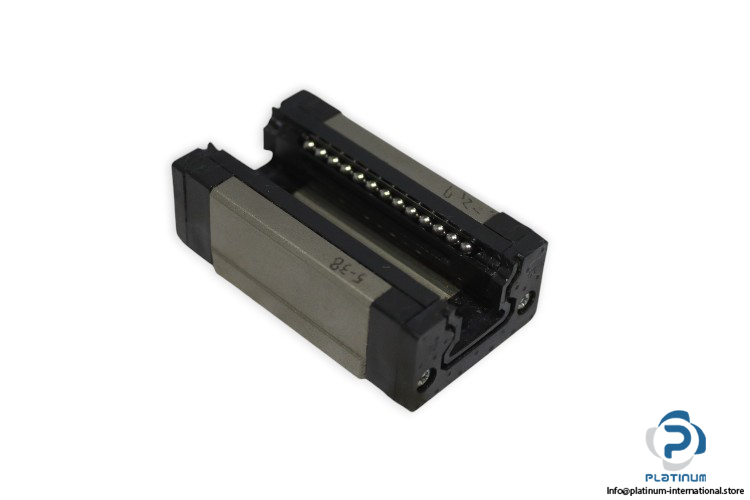

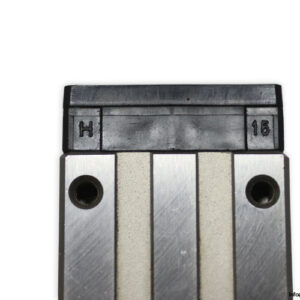

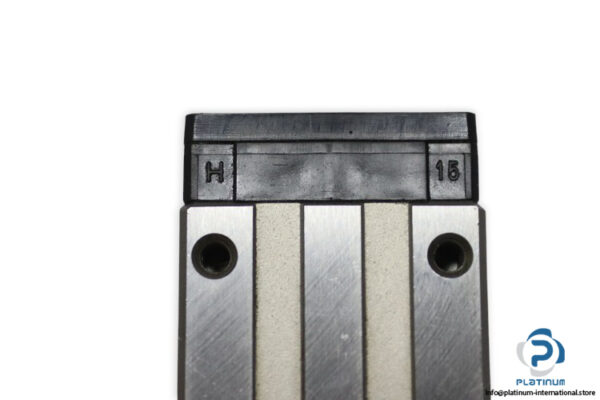

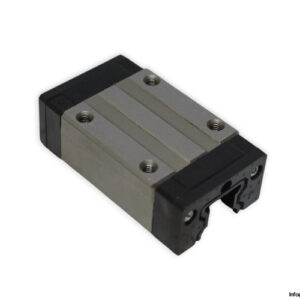

Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: U15ER

Size: 15 mm

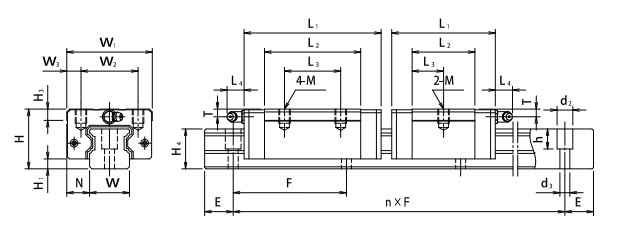

Dimensions
Total Height H: 24 mm
Block Height(H-H1): 19.4 mm
Width N: 9.5 mm
Width W₁: 43 mm
Width W₃: 4 mm
Block Length L₁: 59 mm
L₂: 38.5 mm
L₃: 26 mm
W₂: 26 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M4×5)
Basic Load Ratings:
Dynamic C₅₀: 8816 N
Dynamic C₁₀₀: 6997 N
Static C₀: 17020 N
