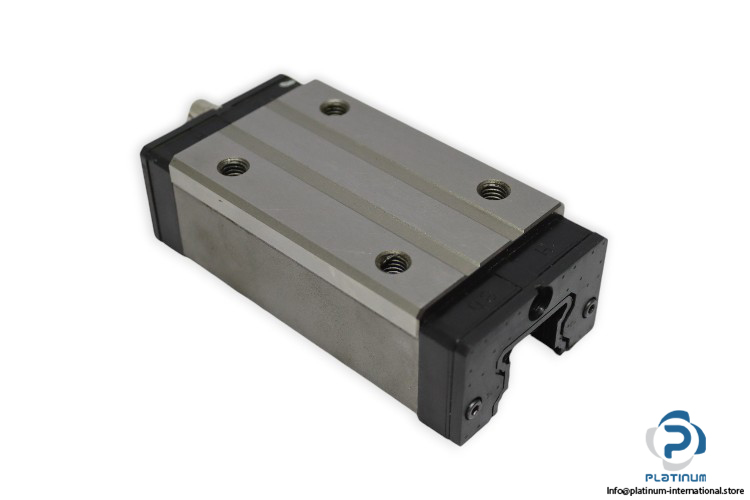

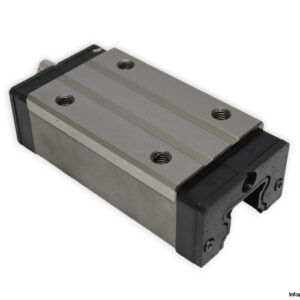

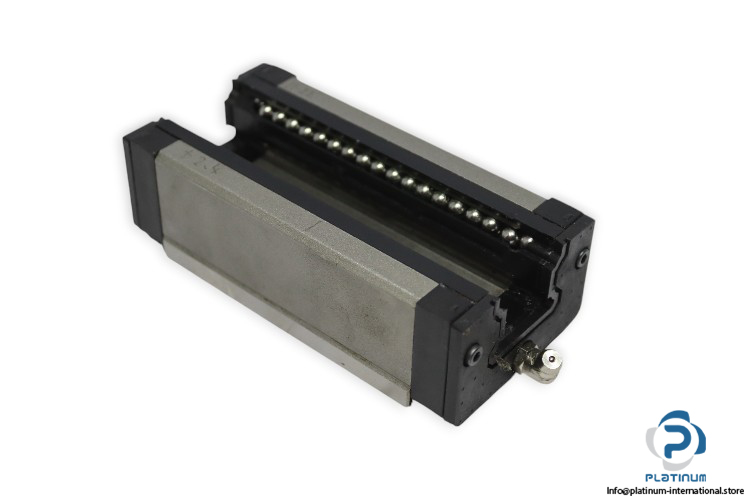

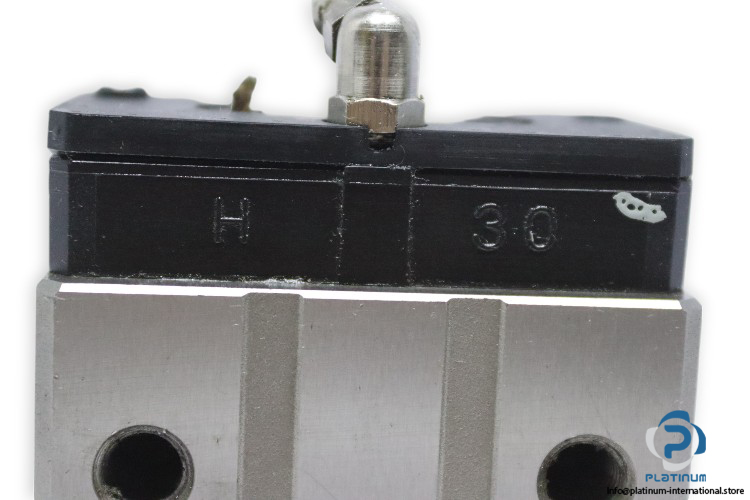

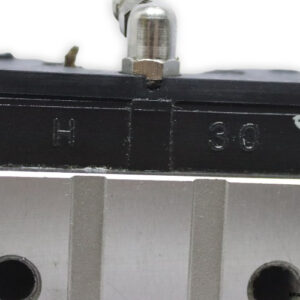

Tsubaki H30LER Linear Bearing Block

Manufacturer: TSUBAKI
Type: LINEAR BEARING BLOCK
Model: H30LER

Size: 30 mm

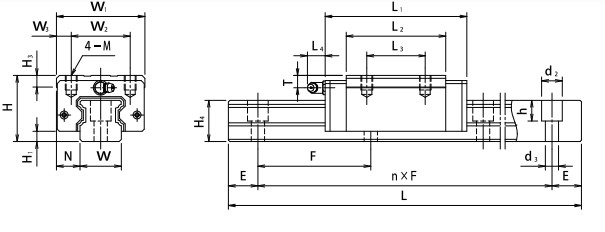

Dimensions
Total Height H: 45 mm
Block Height(H-H1): 38 mm
Width N: 16 mm
Width W₁: 60 mm
Width W₃: 10 mm
Block Length L₁: 123 mm
L₂: 94 mm
L₃: 60 mm
W₂: 40 mm
Block Type: Flange Type
Mounting Hole: 4 Tapped holes (M8×10)
Basic Load Ratings:
Dynamic C₅₀: 35630 N
Dynamic C₁₀₀: 28280 N
Static C₀: 69480 N
