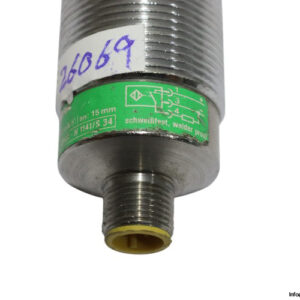

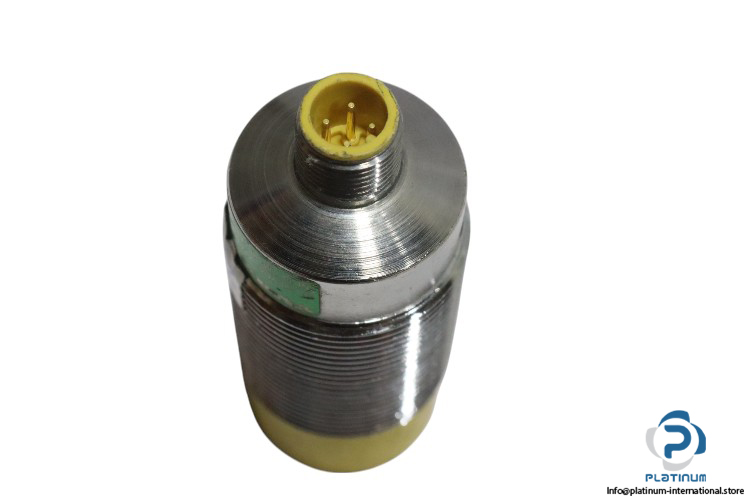

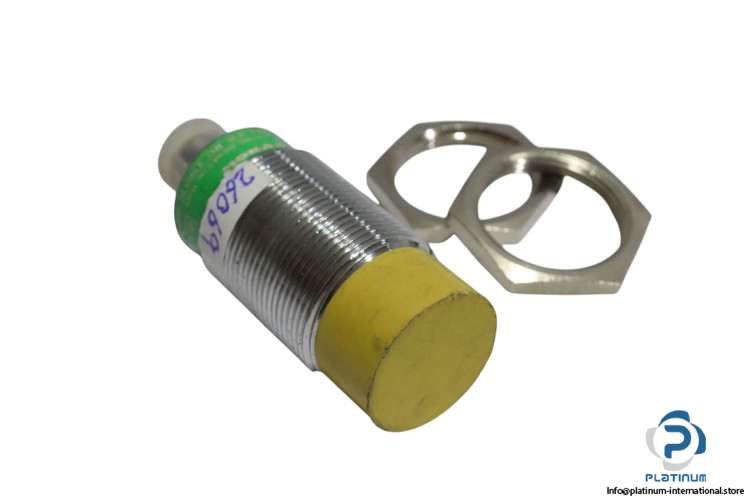

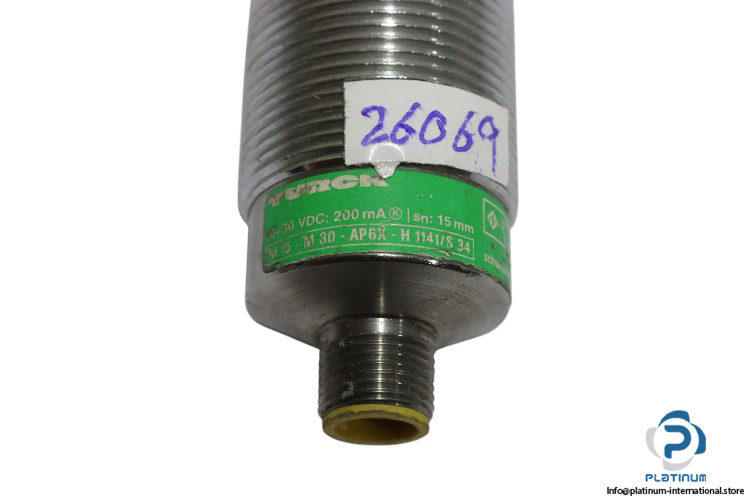

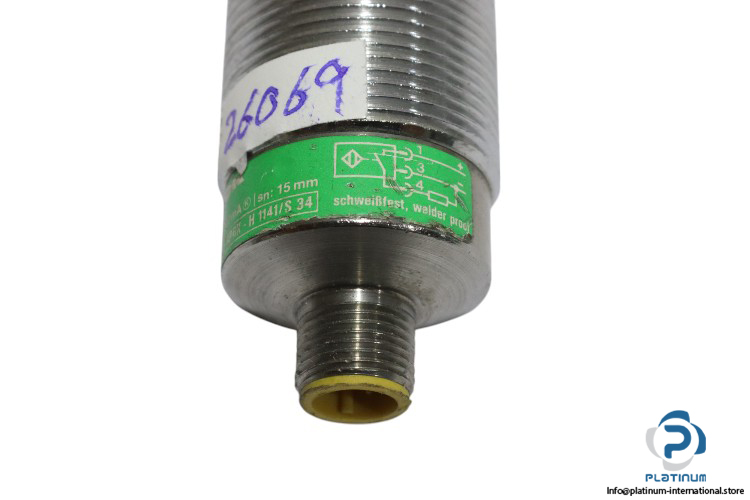

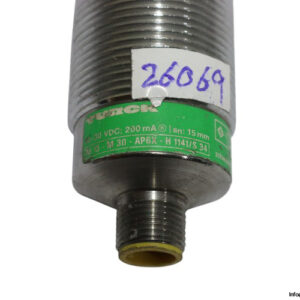

Turck NI15M30AP6XH1141/S34 “ Inductive Sensor

The Turck NI15M30AP6XH1141/S34 is a robust inductive sensor designed for precise sensing in industrial applications. Featuring a metal housing with chrome plating and offering a wide range of environmental protections, it is suitable for use in harsh conditions.

• Manufacturer: Turck
• Type: Inductive Sensor
• Model: NI15M30AP6XH1141/S34

Technical Information:

• Sensing Range: 15 mm
• Operating Voltage: 10 to 30 V DC
• Electrical Design: PNP
• Switching Output: 1 NO
• DC Rated Operating Current (Ie): 200 mA
• No-Load Current: 15 mA
• Switching Frequency: 0.5 kHz
• Housing Material: Metal, CuZn, Chrome-plated
• Mounting: Non flush
• Protection Degree: IP67
• Connection: Connector, M12 × 1
• Ambient Temperature: -25 to 70 °C
• Length: 62 mm
• Design: Threaded barrel, M30 x 1.5
• Supplied Items: 2 lock nuts
