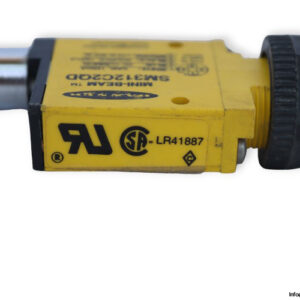

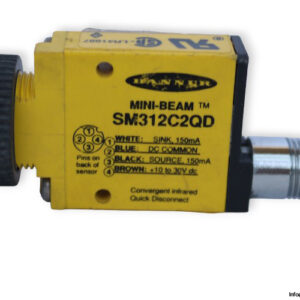

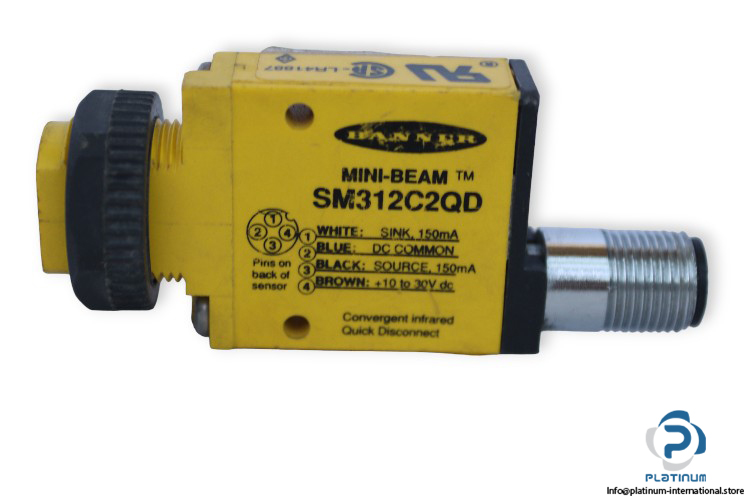

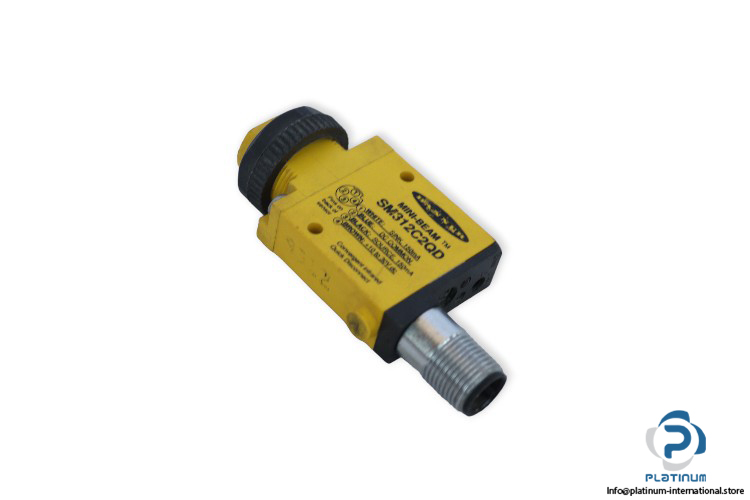

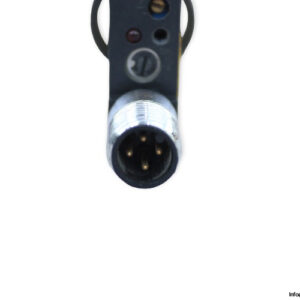

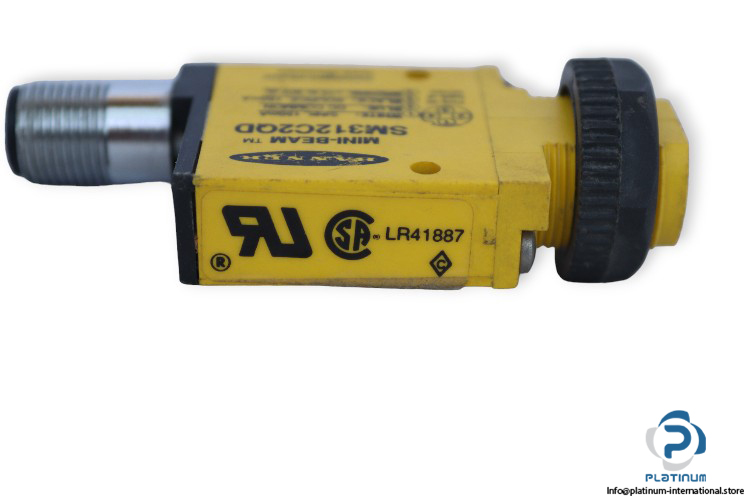

Banner SM312C2QD Mini-Beam Photoelectric Sensor
Manufacturer: Banner / Turck
Type: Photoelectric Mini-Beam Sensor
Model: SM312C2QD
Sensing Beam: Infrared LED
Max Sensing Distance: 43 mm
Sensing Mode (General): Proximity
Sensing Mode (Detailed): Convergent
Housing Style: Rectangular w/M18 Mount
Primary Housing Material: Thermoplastic
Input Output: Discrete
Outputs: Bipolar 1 NPN; 1 PNP
Operating Voltage: 10 … 30 V DC
Current: 150 mA
Enclosure Rating: IP67

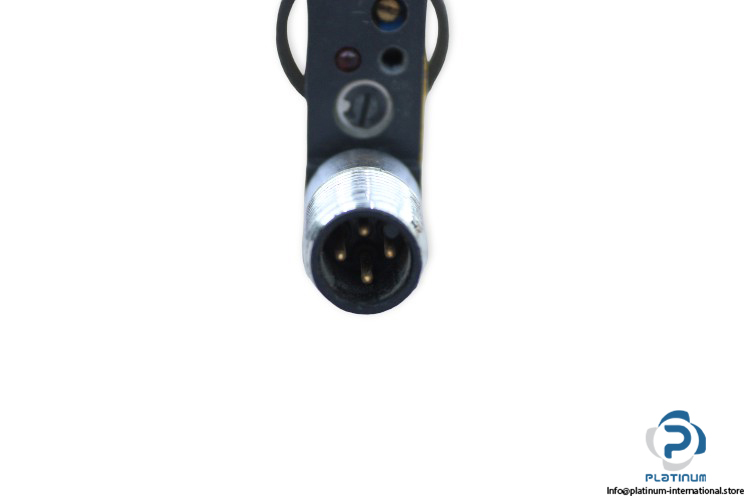

Connection: M12 male connector
Operation: Light/Dark Operate
Output response time: 1 ms
Delay at Power-up: 100 ms
Repeatability: 300 µs
Number of Pins: 4

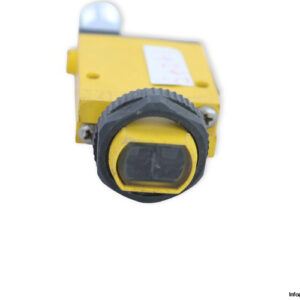

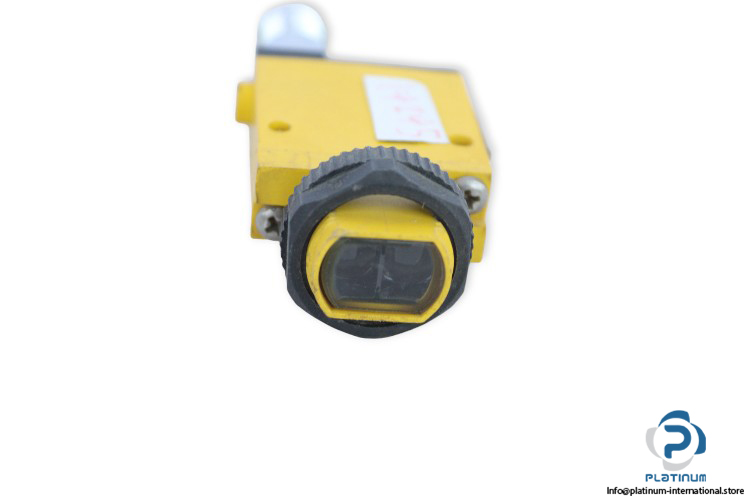

Lens Material: Acrylic
Barrel Diameter: 18 mm
Indicator: LEDs
Adjustments: Potentiometer
Operation temperature: -20 … 70°C
