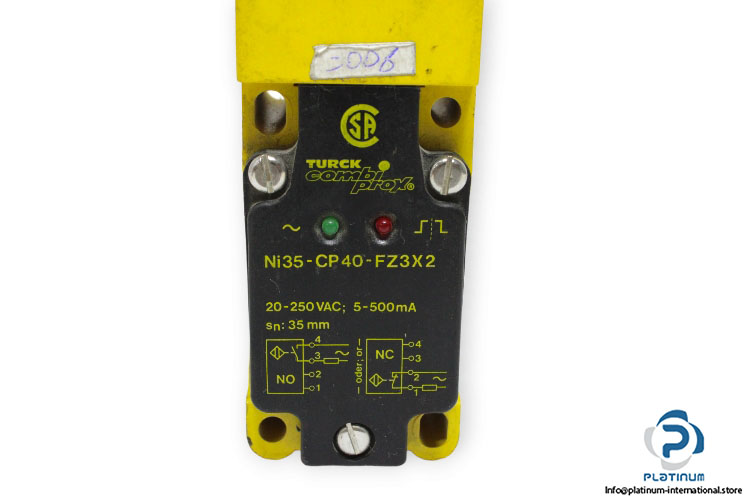

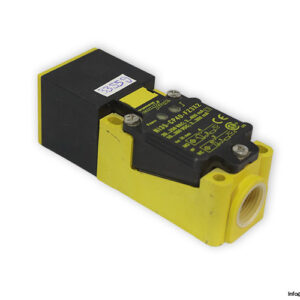

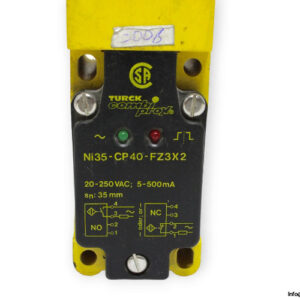

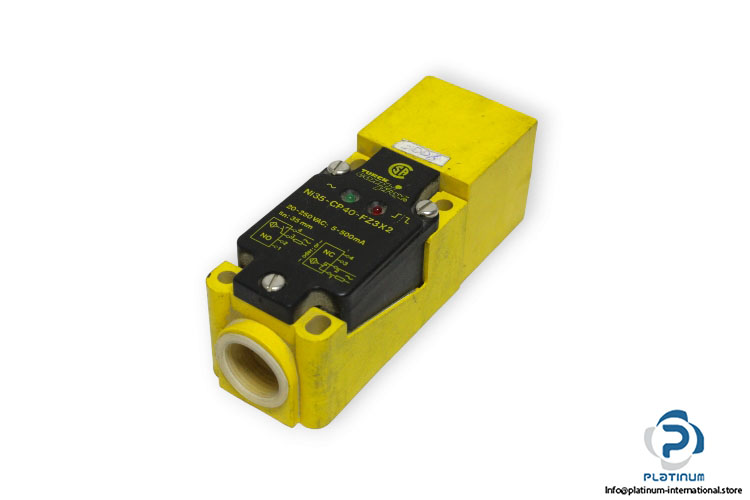

TURCK NI35-CP40-FZ3X2 Inductive Sensor

A high-performance inductive sensor from TURCK™s COMBI-PROX series, designed for precise metal detection, stable switching behavior, and reliable operation in demanding industrial automation environments. Manufacturer: TURCK
Type: Inductive Sensor
Model: NI35-CP40-FZ3X2
ID No.: 13403
Series: COMBI-PROX

Technical Information

• Rated Switching Distance: 35 mm
• Mounting Conditions: Non-Flush
• Secured Operating Distance: (0.81 × Sn) mm
• Correction Factors: St37: 1; Al: 0.3; Stainless steel: 0.7; Ms: 0.4
• Repeat Accuracy: ‰¤ 2% of full scale
• Temperature Drift: ‰¤ ±10%
• Hysteresis: 3 / 15%
• Operating Voltage (AC): 20 / 250 VAC
• Operating Voltage UB (DC): 10 / 300 VDC
• AC Rated Operational Current: ‰¤ 400 mA
• DC Rated Operating Current Ie: ‰¤ 300 mA
• Output Function: 2-wire, Connection programmable
• Switching Frequency: 0.02 kHz
• Design: Rectangular, CP40
• Dimensions: 114 x 40 x 40 mm
• Housing Material: Plastic, PBT-GF30-V0, Black
• Active Area Material: Plastic, PBT-GF30-V0, Yellow
• Electrical Connection: Terminal chamber
• Ambient Temperature: -25 / +70 °C
• Protection Class: IP67
