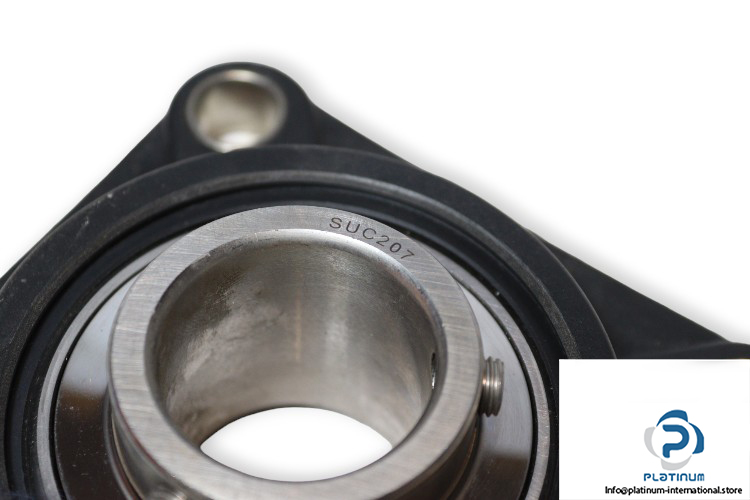

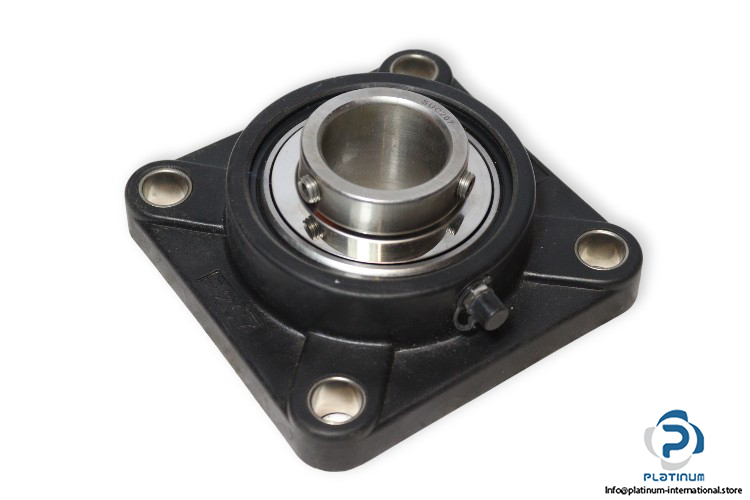

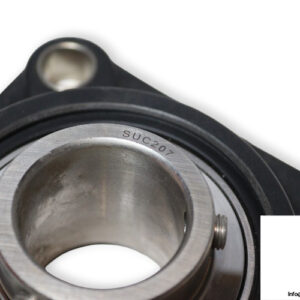

Type: plastic Four-Bolt Square Flange Unit
Model: UCF 207

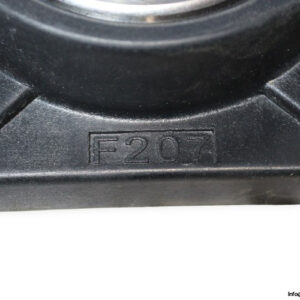

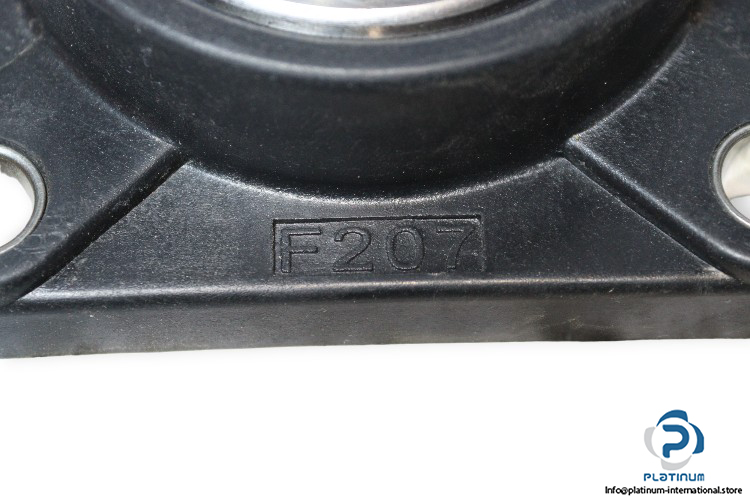

Housing No.: F207
Bearing No.: SUC207

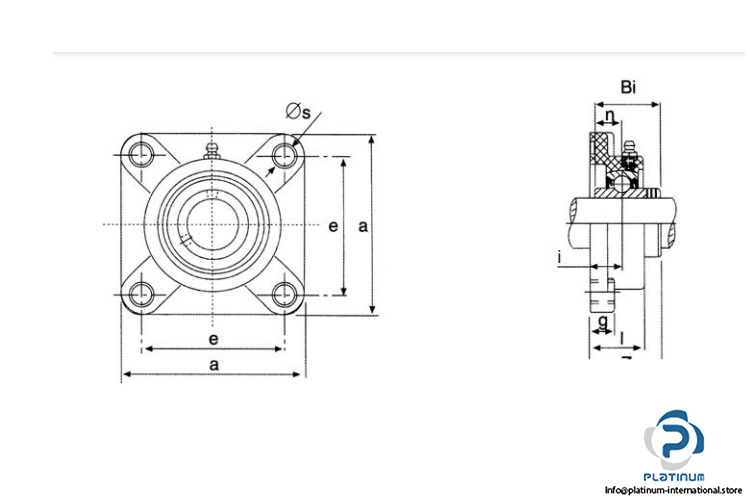

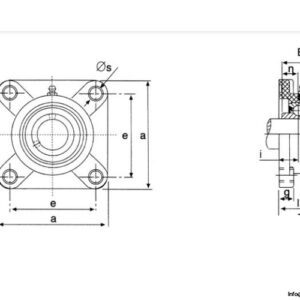

Dimensions
Bore Diameter d: 35 mm
Overall length a: 118 mm
i: 21.5 mm
Housing foot height / flange height g: 15.5 mm
Width of housing I: 34.8 mm
Distance Between Attachment Bolts e: 92 mm
Mounting hole diameter s: 13 mm
Overall width z: 46.9 mm
Mounting: Four-Bolt Flange
Housing Color: Black
Material, bearing: Stainless Steel
Material, housing: Plastic
