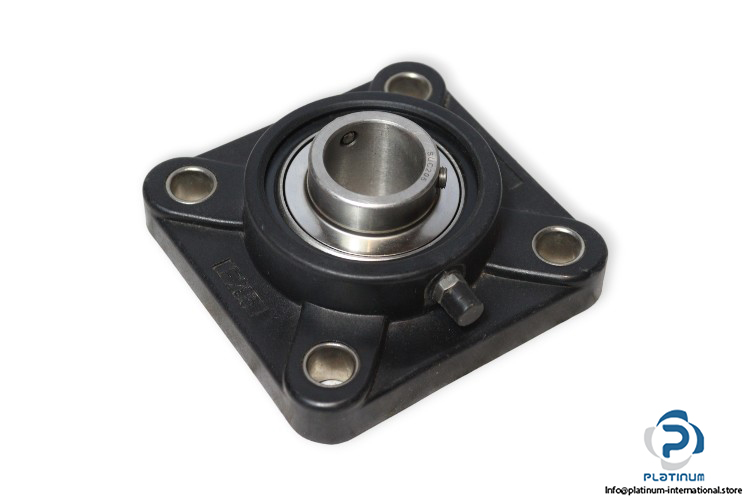

UCF205 Plastic Four-Bolt Square Flange Unit

Name: UCF205 PLASTIC FOUR-BOLT SQUARE FLANGE UNIT
SKU: 1030197
Availability: LimitedAvailability

UCF205-plastic-four-bolt-square-flange-unit-(new)

UCF205-plastic-four-bolt-square-flange-unit-(new)-1

UCF205-plastic-four-bolt-square-flange-unit-(new)-2

UCF204-plastic-four-bolt-square-flange-unit-(new)-3

New

Available on request

Type: plastic Four-Bolt Square Flange Unit Model: UCF 205 Housing No.: F205 Bearing No.: SUC205

SKU

1030197

Category

Plummer Block Housing Units

Condition

New

bearing Block Four-Bolt Plastic Square UCFP205 Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Type: plastic Four-Bolt Square Flange Unit
Model: UCF 205

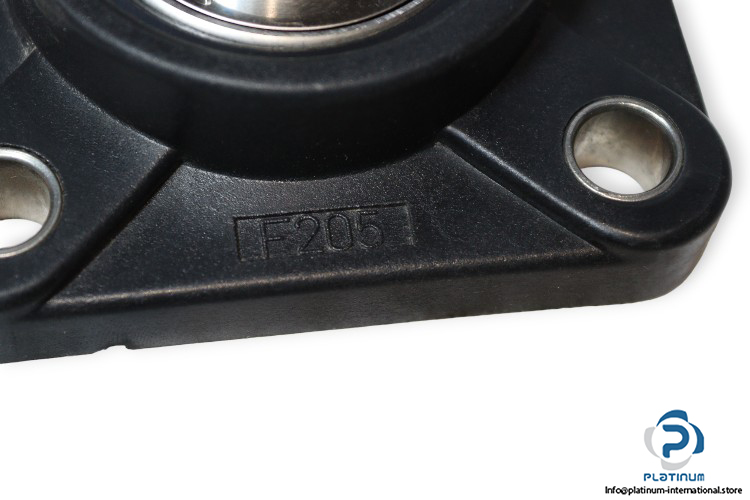

Housing No.: F205

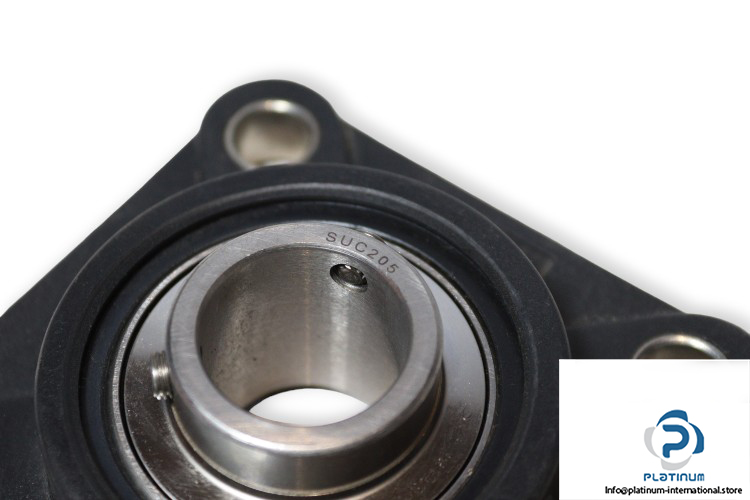

Bearing No.: SUC205

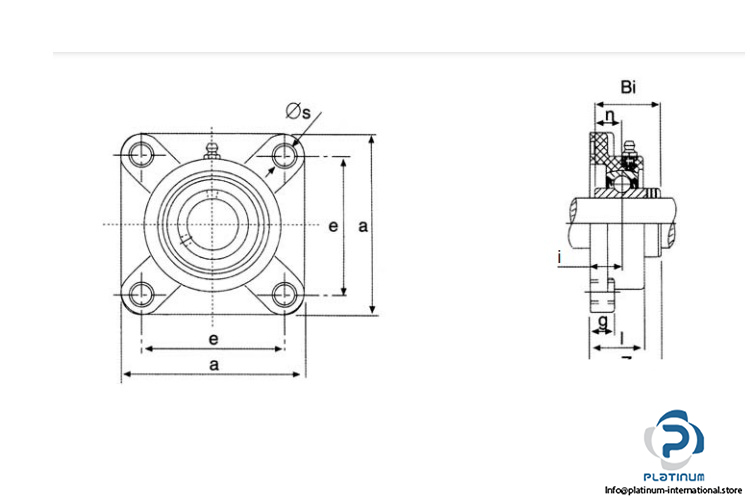

Dimensions
Bore Diameter d: 25 mm
Overall length a: 95 mm
i: 17 mm
Housing foot height / flange height g: 14.3 mm
Width of housing I: 28 mm
Distance Between Attachment Bolts e: 70 mm
Mounting hole diameter s: 11 mm
Overall width z: 36.7 mm
Mounting: Four-Bolt Flange
Housing Color: Black
Material, bearing: Stainless Steel
Material, housing: Plastic
