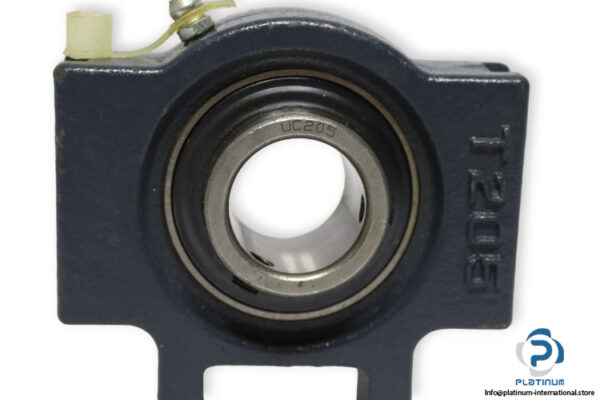

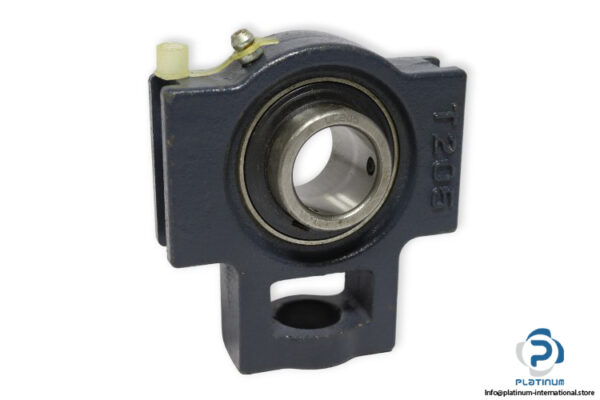

Type: Take up ball bearing unit
Model: UCT205
Housing No.: T205
Bearing No.: UC205

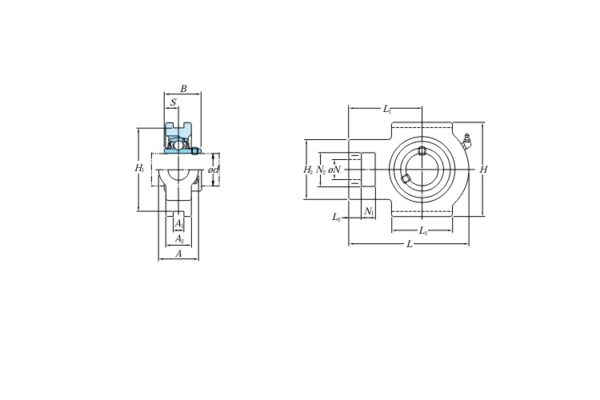

Shaft diameter d: 25 mm
Overall width A: 32 mm
Width of inner ring B: 34.1 mm
Overall height H: 89 mm
Overall length L: 97 mm
Diameter of attachment bolt hole N: 19 mm
Housing type: Take-up
Material, housing: Cast iron
Locking Device: set screw locking
