Manufacturer: UKF
Type: Double Row, with rotating Spacer Balls preloaded
Model: UK40
Dimensions:
Bore Diameter d: 40 mm
Outer diameter D: 68 mm
Width: 18 mm
Contact angle: 16 °
Dynamic load rating: 28400 N
Static load rating: 24700 N
Speed limit for oil lubrication: 5000 RPM
Speed limit for grease lubrication: 4000 RPM
Used
Angular Contact

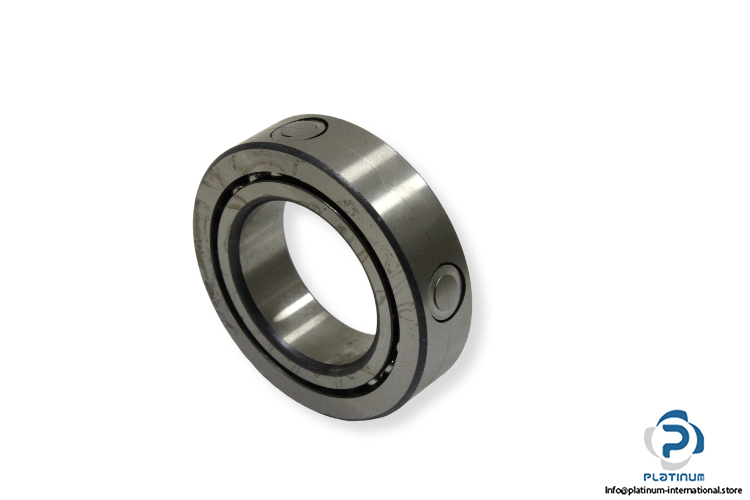

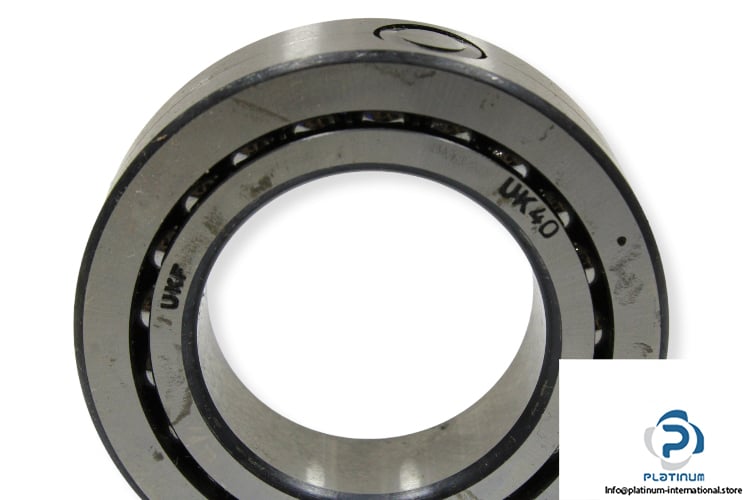

UKF UK 40 ANGULAR CONTACT PRECISION BEARINGS WITH SPACER BALLS
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
