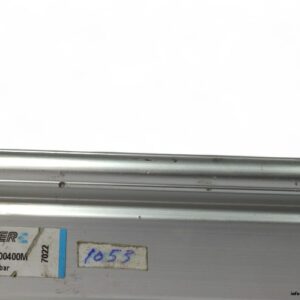

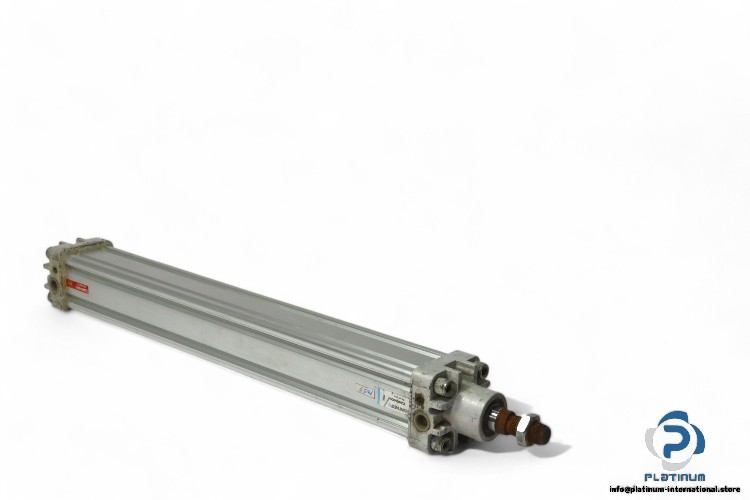

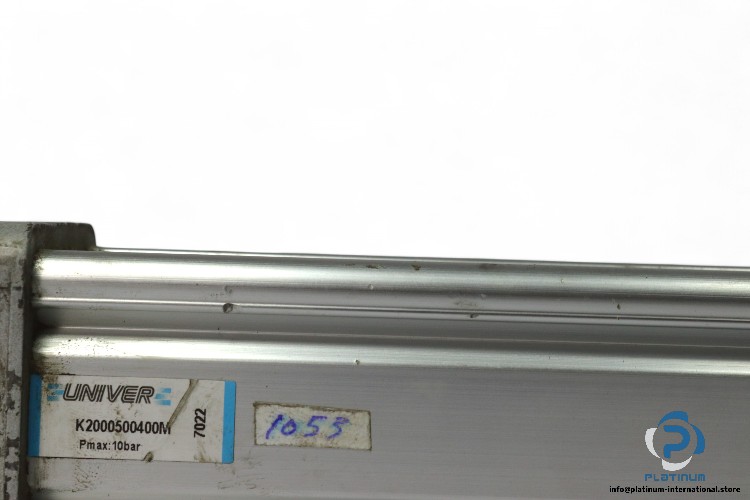

UNIVER ISO Cylinder K2000500400M
The UNIVER ISO Cylinder K2000500400M is a high-performance pneumatic cylinder designed for efficient linear motion in industrial systems. This double-acting cylinder is built for durability, with a maximum pressure rating of 10 bar and features such as a male piston rod end and a square shape.
Manufacturer: UNIVER
Model: K2000500400M
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 50 mm
- Stroke: 400 mm
- Bore x Stroke: 50 x 400 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 67 x 535 mm
- Pneumatic Connection: G 1/4
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
