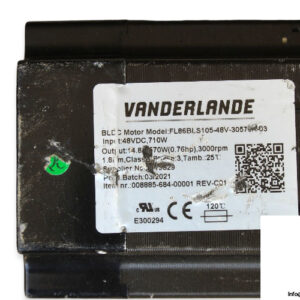

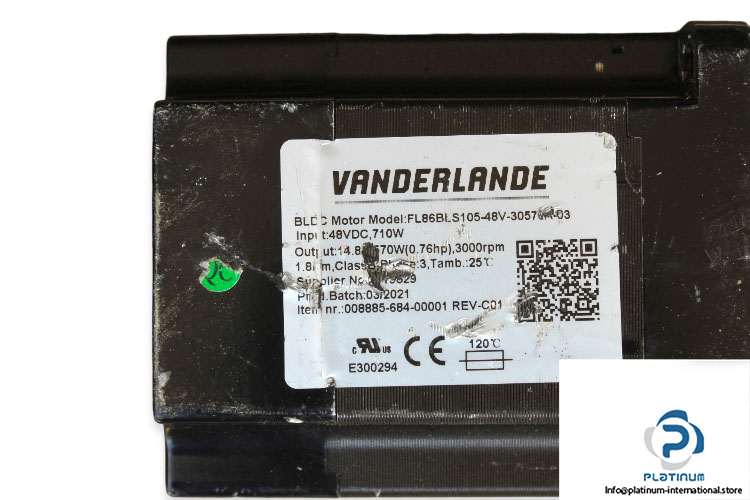

Van Der Lande FL86BLS105-48V-30570A-03 DC Servo Motor

The Van Der Lande FL86BLS105-48V-30570A-03 is a high-performance DC servo motor designed for precision motion control and automation systems. With a compact build and 48V input, it delivers reliable power, speed, and torque for demanding industrial applications such as conveyors, robotics, and material handling equipment.

Manufacturer: Van Der Lande
Type: DC Servo Motor
Model: FL86BLS105-48V-30570A-03
Part Nr.: 008885-684-00001

Technical Information

Voltage Input [VDC]: 48
Power Input [W]: 710
Current Output [A]: 14.8
Power Output [W]: 570
Rated Torque [Nm]: 1.8
Nominal Speed [rpm]: 3000
Insulation Class: B
