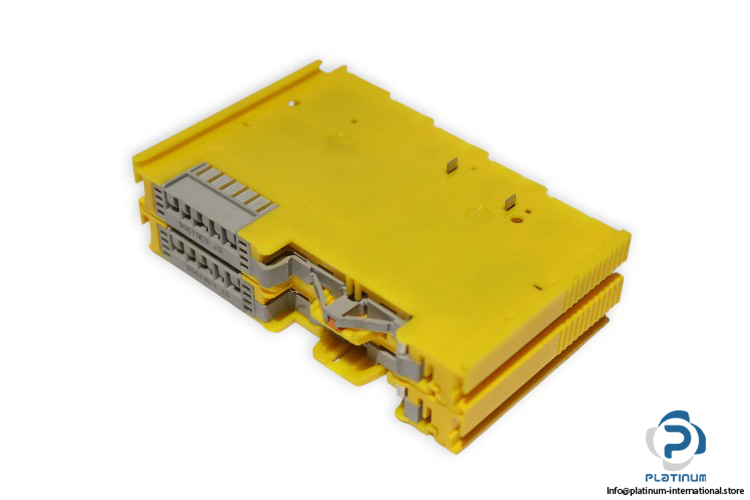

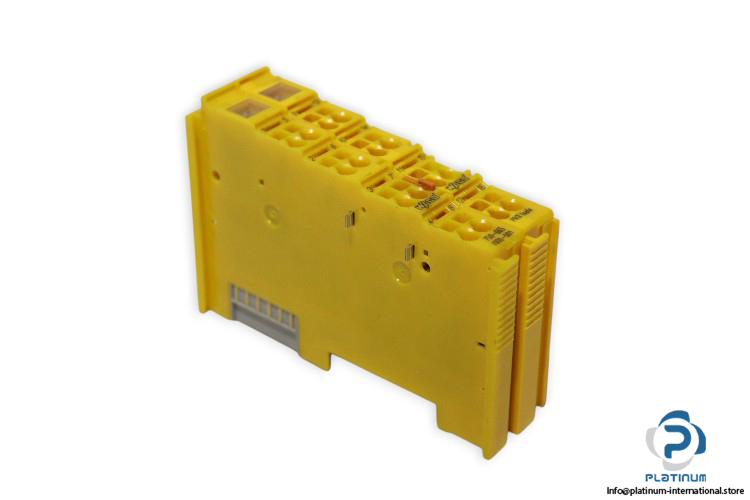

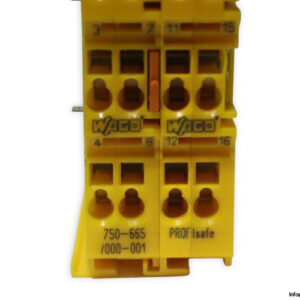

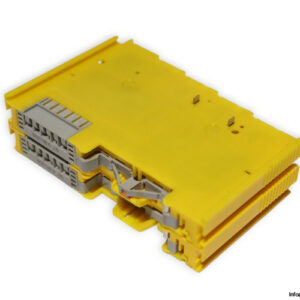

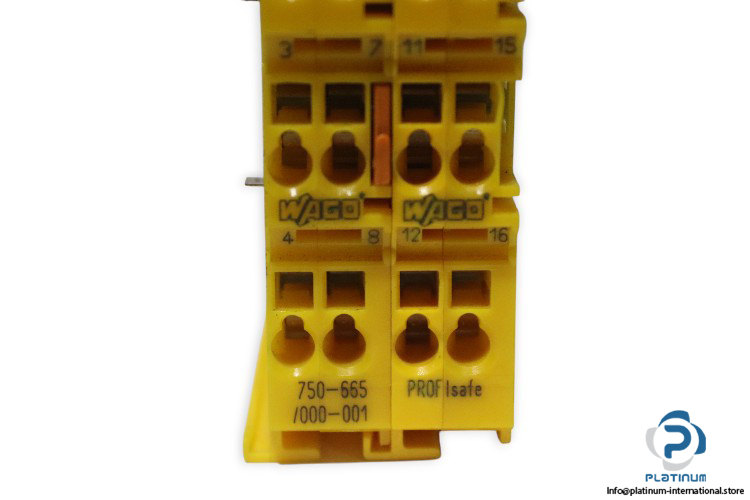

Wago 750-665/000-001 Fail-Safe 4/4 Channel Digital Input/Output Module
The Wago 750-665/000-001 is a reliable fail-safe digital I/O module designed for safety-critical industrial automation systems. Offering four digital inputs and four digital outputs with integrated test pulse functionality, it ensures dependable performance and compliance with demanding safety standards.
Manufacturer: Wago
Type: Fail-Safe 4/4 Channel Digital Input/Output
Model: 750-665/000-001

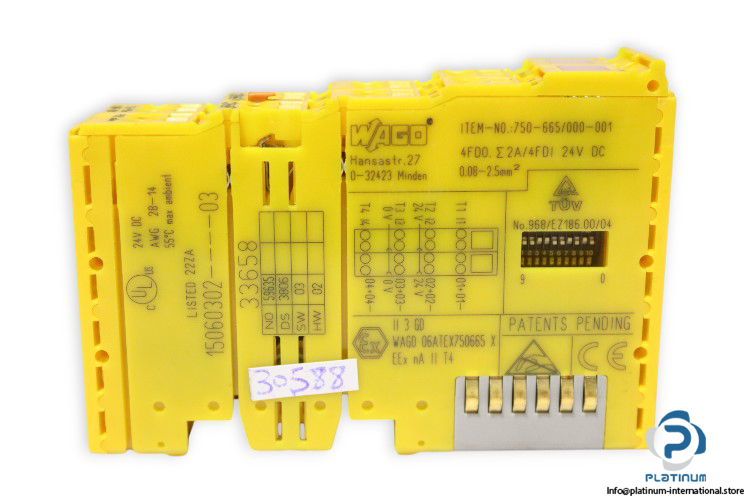

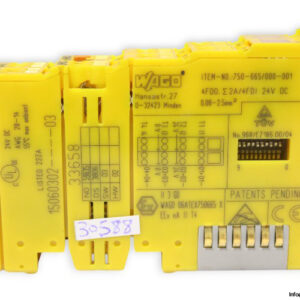

Part No.: 15060302 —- 03
Code: 33658/06ATEX750665 X/4FDO. ˆ‘ 2A/4FDI
DS: 3806
NO: 59635
No.: 958/EZ186.00/04
SW: 03
HW: 02
Technical information
- Voltage: 24 V DC
- Total Number of Channels (Module): 8
- Number of Digital Inputs: 4 (fail-safe input with test pulse)
- Input Current per Channel for Signal (1): typ. 2.2 mA
- Number of Digital Outputs: 4
- Solid Conductor: 0.08 to 2.5 mm²
- Wire: AWG 28 to 14
- Max Ambient Temperature: 55 °C
- Width: 24 mm / 0.945 in
- Height: 100 mm / 3.937 in
- Depth: 67.8 mm / 2.669 in
- Depth from Upper-Edge of DIN-rail: 60.6 mm / 2.386 in
