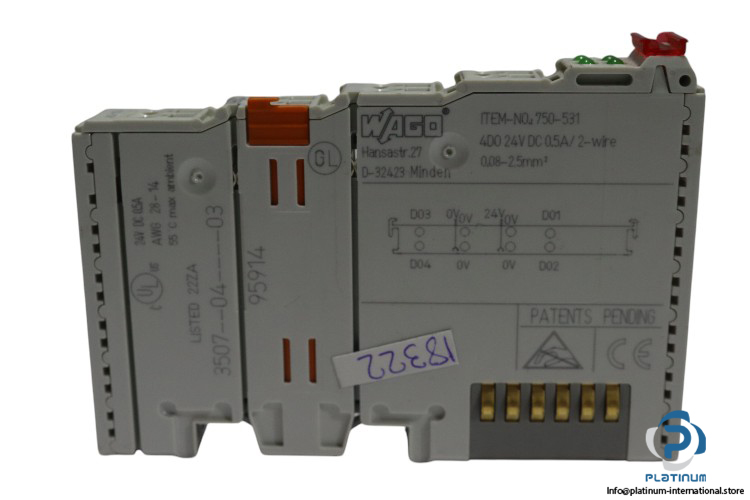

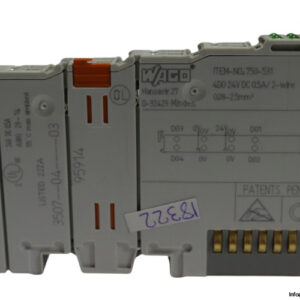

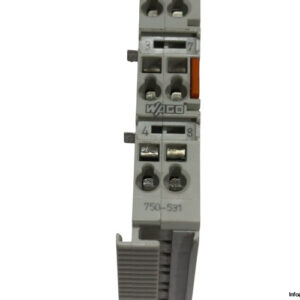

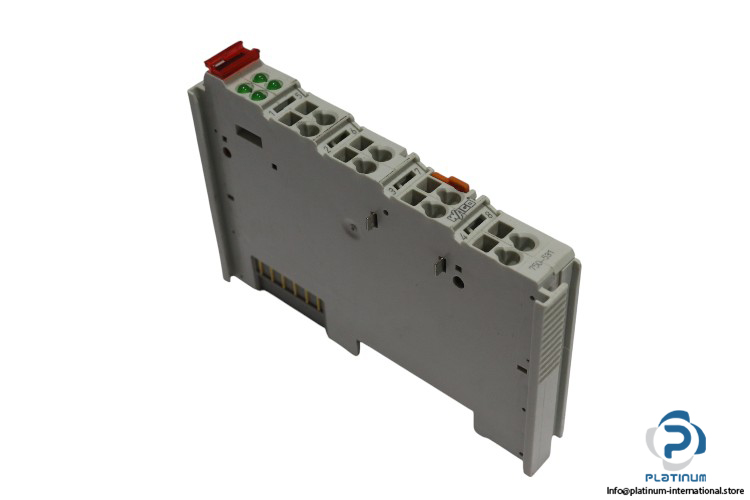

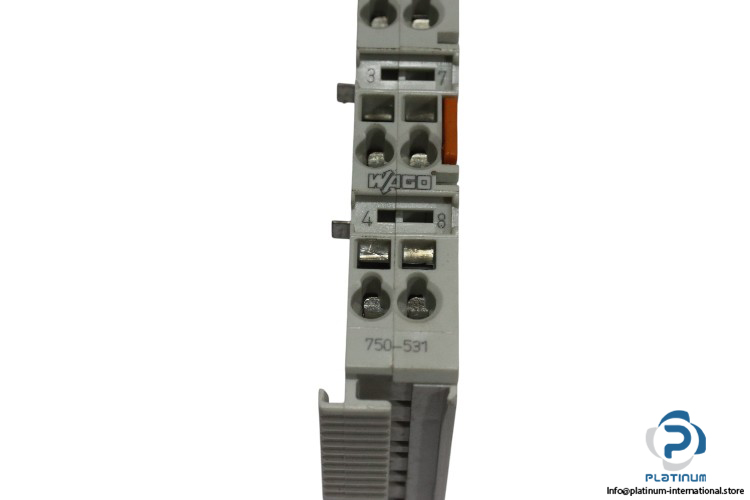

Wago 750-531 Digital Output Module
Used
In stock1 unitReady to ship
Digital Output Module
WAGO 750-531 “ 4-channel 24 VDC digital output module with high-side switching, short-circuit protection, and IP20 enclosure.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
WAGO 750-531 Digital Output Module
The WAGO 750-531 is a 4-channel digital output module designed for precise and protected switching of DC loads in industrial automation systems. With high-side switching output and short-circuit protection, it supports resistive, inductive, and lamp loads. This compact module features 2-wire actuator connections and is ideal for integration into distributed I/O systems using a 5 VDC system supply.
- Manufacturer: WAGO
- Type: Digital Output Module
- Model: 750-531
Technical Specifications:
- Signal Type: Digital (24 VDC)
- Number of Digital Outputs: 4
- Total Channels: 4
- Isolation Voltage: 500 V
- Actuator Connection: 4 x (2-wire)
- Output Characteristic: High-side switching
- Output Current per Channel: 0.5 A
- Short-Circuit Current: 1.7 A (protected)
- Load Type: Resistive, inductive, lamp
- Supply Voltage (System): 5 VDC (via data contacts)
- Current Consumption (5 V System): 10 mA
- Color: Light gray
- Housing Material: Polycarbonate, Polyamide 6.6
- Protection Type: IP20
- Ambient Temperature (Operation): 0 / 55 °C
- Dimensions (H x W x D): 100 x 12 x 69.8 mm
Applications:
- PLC and automation systems
- Resistive and inductive load switching
- Factory automation panels
- Distributed control environments
