Wago 2002-1201 Terminal Block
New
In stock2 unitsReady to ship

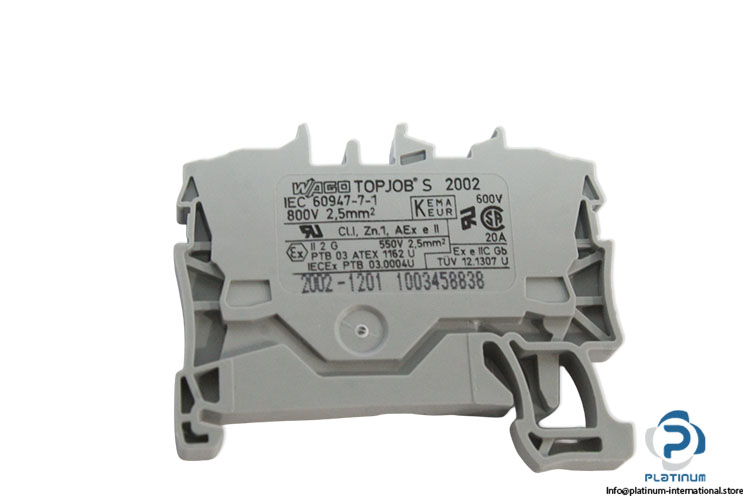

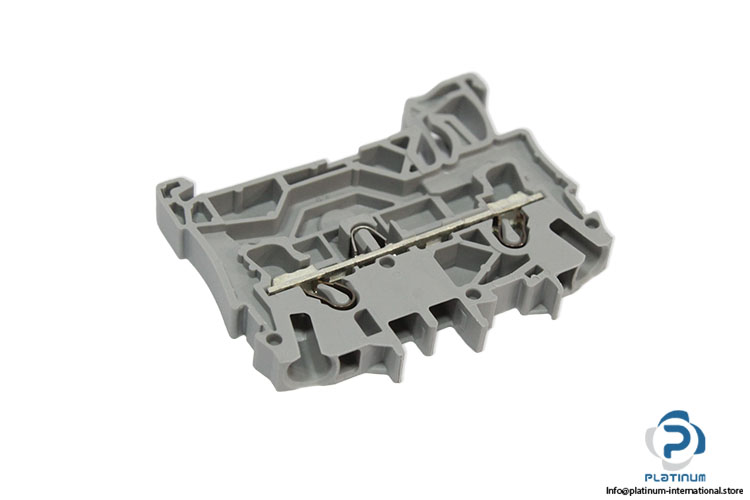

2-Conductor Through Terminal Block WAGO 2002-1201 terminal block from the TOPJOB’S 2002 series designed for secure DIN rail mounting, reliable electrical connections, and industrial control panel applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 2002-1201 |
| Code | 1003458838 |
| family | TOPJOB'S 2002 |
| suitable for | Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray |
| Nominal voltage | 800 V |
| Rated current | 24 A |
| Current at conductor cross-section (max.) mm² | 32 A |
| Ratings per | IEC/EN 60947-7-1 |
| Power loss, per pole (potential) | 0.766W |
| Rated current IN for power loss specification | 24A |
| Clamping units | 2 |
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
| Width | 5.2 mm |
| Height | 48.5 mm |
| Depth | 39.5 mm |
| Mounting type | DIN-35 rail |
| Marking level | Center/side marking |
| Insulation material (main housing) | Polyamide (PA66) |
| Processing temperature | -35 … +85 °C |
| Explosion proof | II Ex 2G/ PTB 03 ATEX 1162 U |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099237 |
| Weight | 0,01 |
