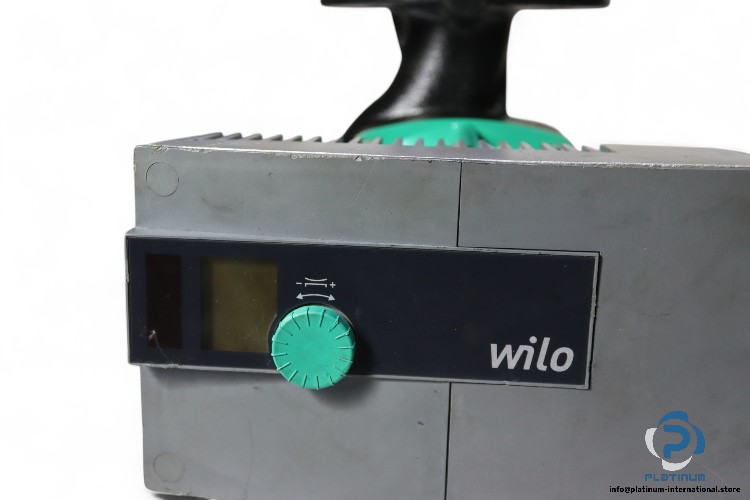

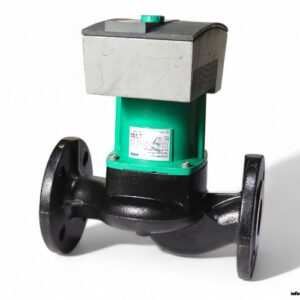

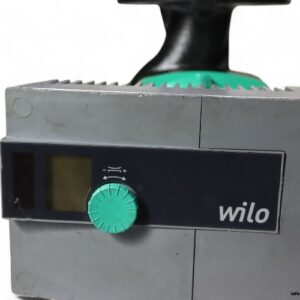

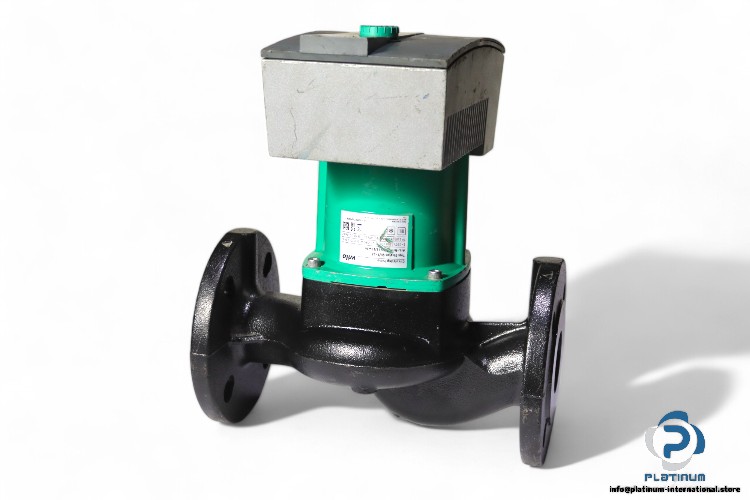

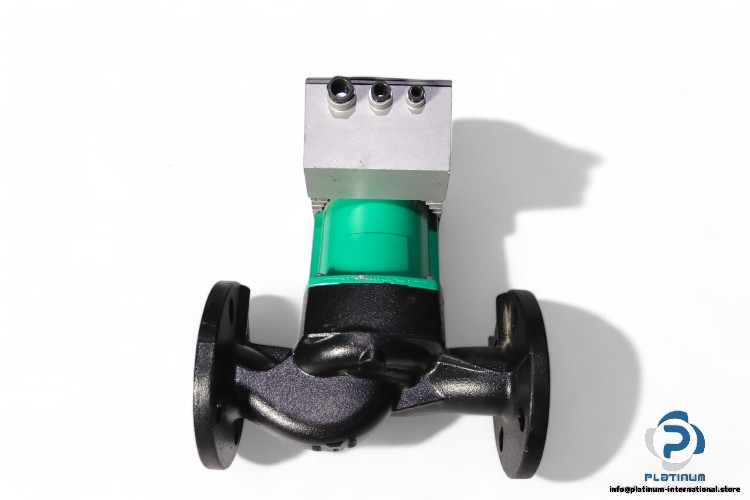

WILO STRATOS 50/1-12 CIRCULATING PUMP
The WILO STRATOS 50/1-12 Circulating Pump is designed for efficient and reliable circulation in heating, ventilation, and air conditioning systems. With a wide operating pressure range and robust construction, it provides optimal performance in a variety of industrial applications.

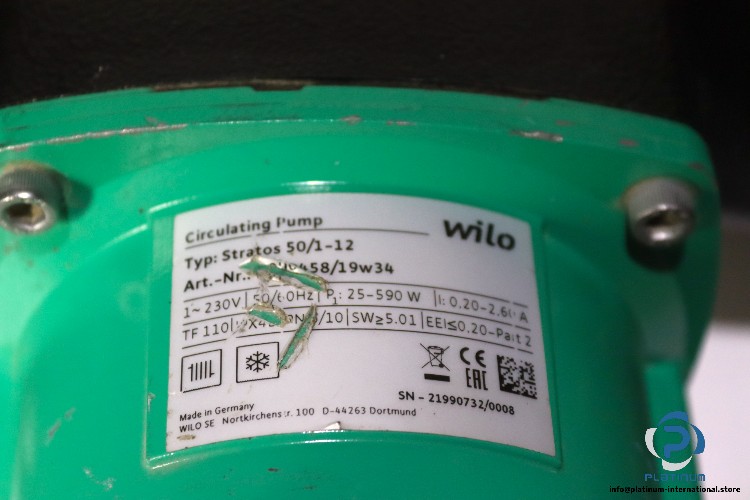

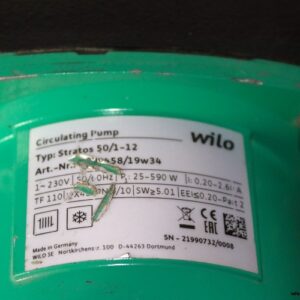

Manufacturer: WILO
Type: CIRCULATING PUMP
Model: STRATOS 50/1-12
Art No.: 2090458 /19W34
Technical Specifications
- Mains Connection: 230 V
- Rated Frequency: 50/60 Hz
- Operating Pressure: 6 to 10 bar
- Port-to-Port Length: 280 mm
- Rated Speed: 1400 to 4600 1/min
- Nominal Diameter of Flanged Port: DN 50
- Pump Housing: Grey cast iron (EN-GJL-250)
- Rated Power: 25 to 590 W
- Rated Current: 0.2 to 2.6 A
- Standard Voltage: Single-phase
