Omac B110 4J01 RV6 Lobe Pump

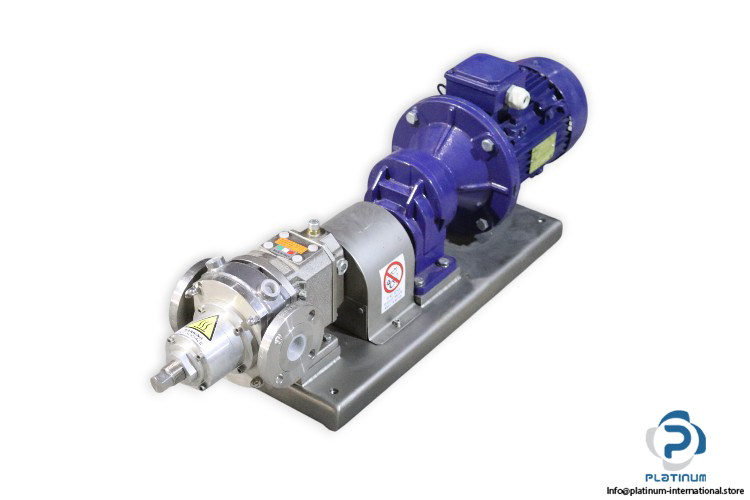

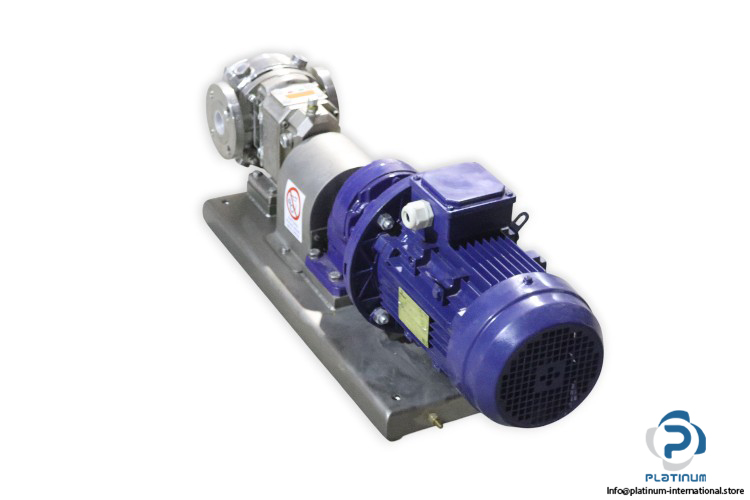

Omac B110 4J01 RV6 Lobe Pump with Seipee Motor and Motovario Gearbox

The Omac B110 4J01 RV6 is a durable and efficient lobe pump designed for industrial applications, complete with a three-phase Seipee motor and Motovario gearbox. Engineered for continuous duty, high efficiency, and robust performance, this unit ensures reliable operation in demanding fluid transfer systems.

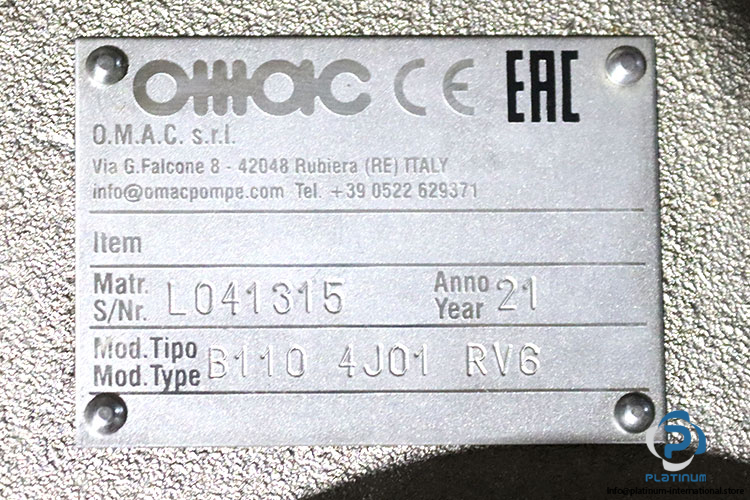

Manufacturer: Omac
Type: Lobe Pump
Model: B110 4J01 RV6
Matr S/Nr.: L041315

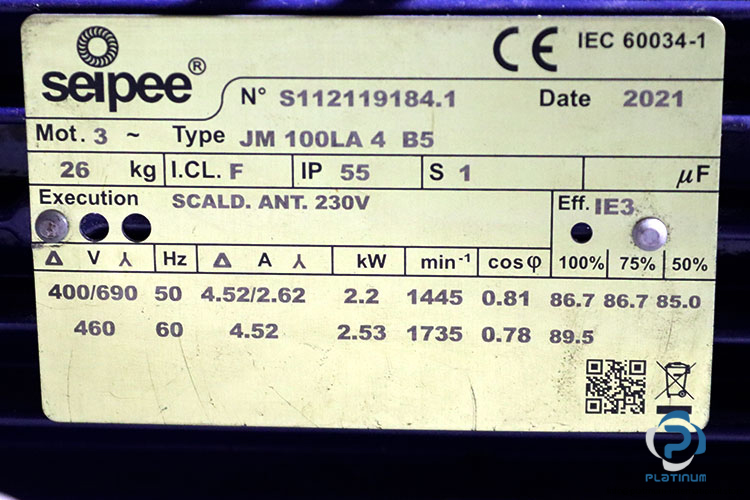

Attachment 1: Seipee Three-Phase Motor

Manufacturer: Seipee
Type: Three-Phase Motor
Model: JM 100LA 4 B5
Part No.: S112119184.1

• Frequency: 50 Hz
• Rated Voltage (Δ/Î¥): 400 / 690 V
• Current: 4.52 / 2.62 A
• Power: 2.2 kW
• Speed: 1445 rpm
• Power Factor (cos φ): 0.81
• Efficiency @ Load: 100% – 86.7%, 75% – 86.7%, 50% – 85.0%
• Frequency: 60 Hz
• Voltage: 460 V
• Current: 4.52 A
• Power: 2.53 kW
• Speed: 1735 rpm
• Power Factor (cos φ): 0.78
• Efficiency: 89.5%
• Insulation Class: F
• Protection Class: IP55
• Duty Type: S1 (Continuous)
• Efficiency Class: IE3 (High Efficiency)
• Execution: SCALD. ANT. 230V

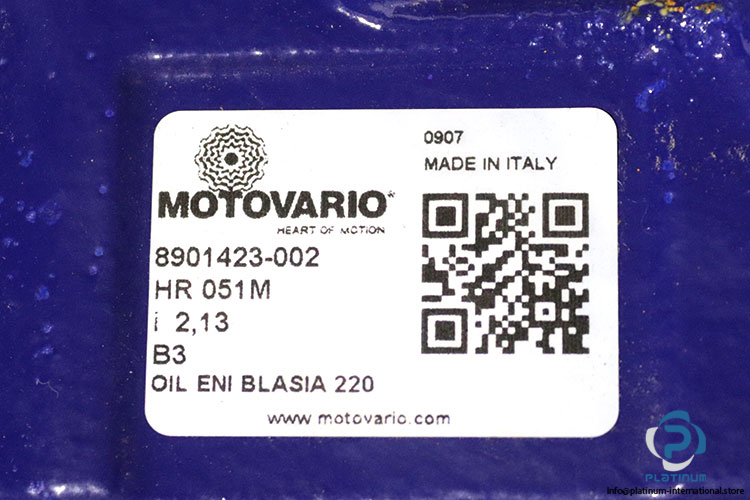

Attachment 2: Motovario Gearbox

Manufacturer: Motovario
Type: Gearbox
Model: 8901423-002
Part No.: HR 051M
Series: HR (Helical Gear Reducer)

• Mounting Position: B3
• Ratio (i): 2.13
• Lubrication: Oil ENI BLASIA 220
