Omac B440 4J01 RV6 Lobe Pump

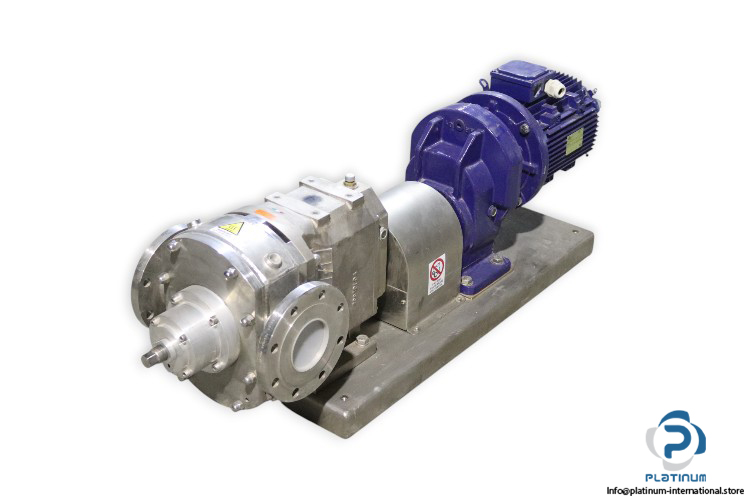

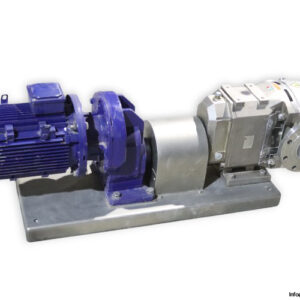

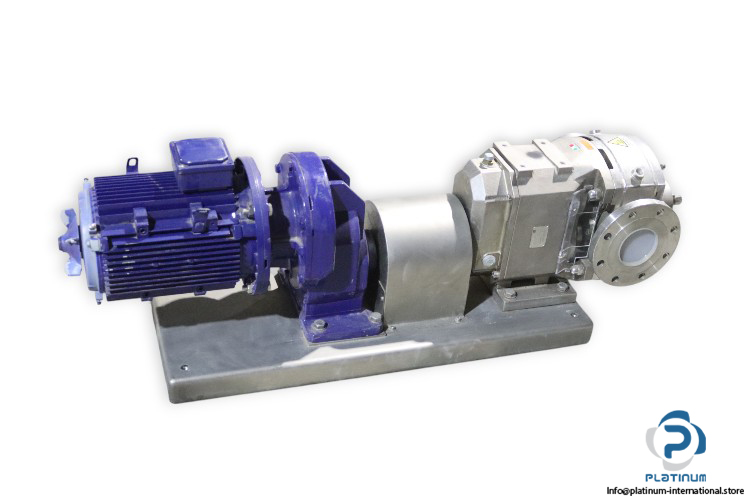

Omac B440 4J01 RV6 Lobe Pump with Seipee Motor and Motovario Gearbox

The Omac B440 4J01 RV6 is a high-performance lobe pump designed for industrial fluid transfer applications. Equipped with a powerful Seipee three-phase motor and a Motovario helical gearbox, this system delivers reliable performance, efficiency, and durability under continuous duty operations.

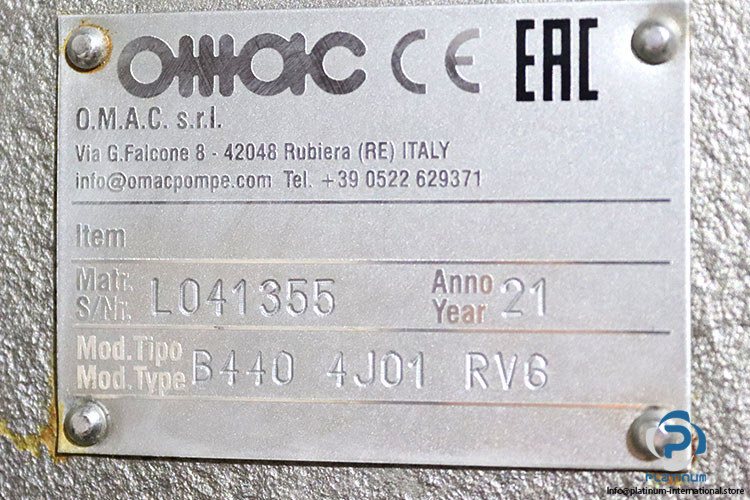

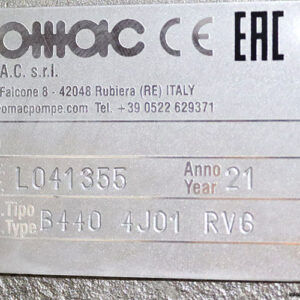

Manufacturer: Omac
Type: Lobe Pump
Model: B440 4J01 RV6
Matr S/Nr.: L041355

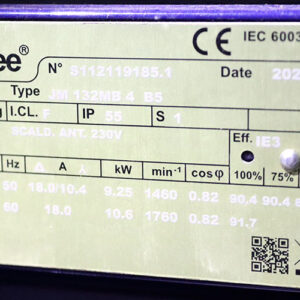

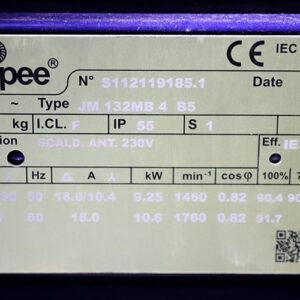

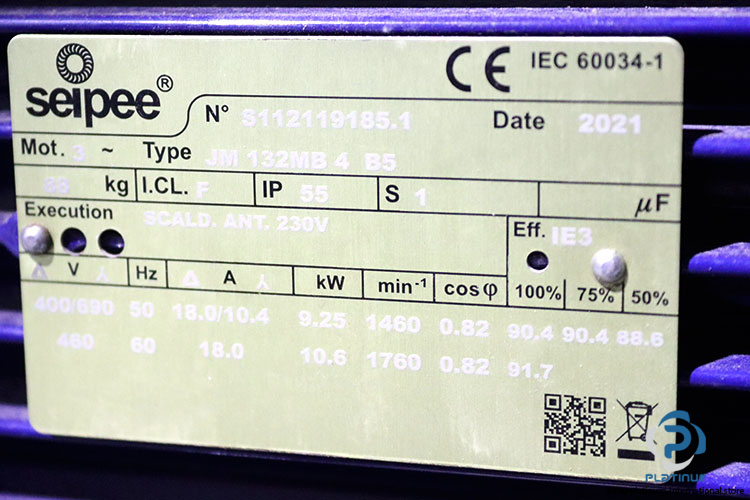

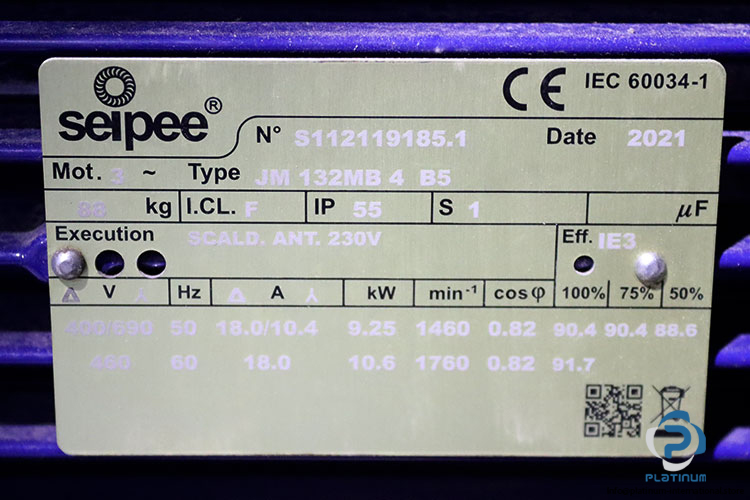

Attachment 1: Seipee Motor

Manufacturer: Seipee
Type: Three-Phase Motor
Model: JM 132MB 4 B5
Part No.: S112119185.1

• Frequency: 50 Hz
• Rated Voltage (Δ/Î¥): 400 / 690 V
• Current: 18 / 10.4 A
• Power: 9.25 kW
• Speed: 1460 rpm
• Power Factor (cos φ): 0.82
• Efficiency @ Load: 100 % – 90.4 %, 75 % – 90.4 %, 50 % – 88.6 %

• Frequency: 60 Hz
• Voltage: 460 V
• Current: 18 A
• Power: 10.6 kW
• Speed: 1760 rpm
• Power Factor (cos φ): 0.82
• Efficiency: 91.7 %
• Insulation Class: F
• Protection Class: IP55
• Duty Type: S1 (Continuous)
• Efficiency Class: IE3 (High Efficiency)
• Execution: SCALD. ANT. 230V

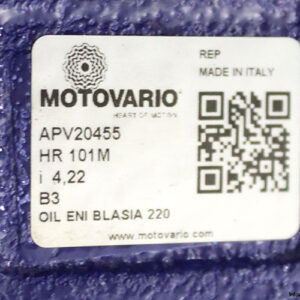

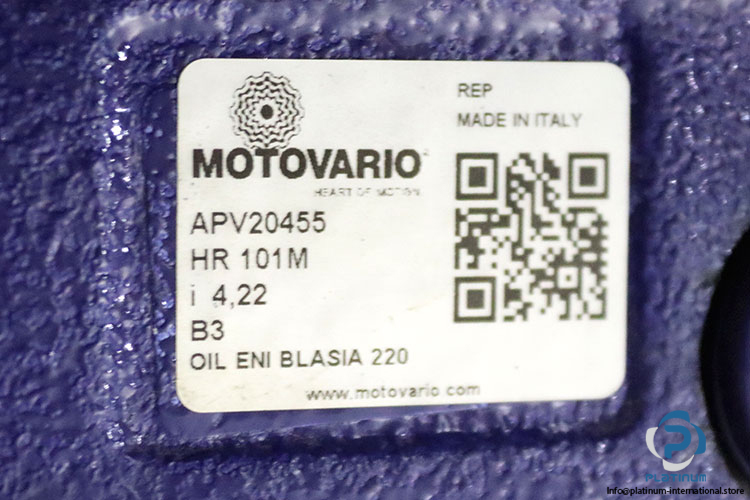

Attachment 2: Motovario Gearbox

Manufacturer: Motovario
Type: Gearbox
Model: APV20455
Part No.: HR 101M

• Mounting Position: B3
• Ratio (i): 4.22
• Lubrication: Oil ENI BLASIA 220
• Series: HR (Helical Gear Reducer)
