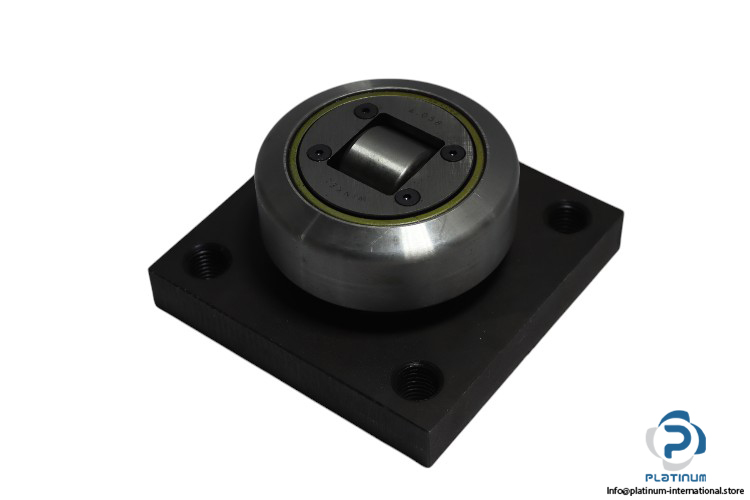

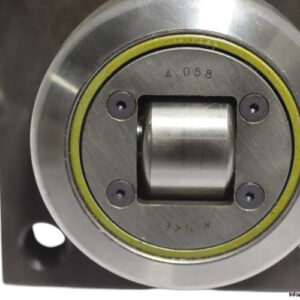

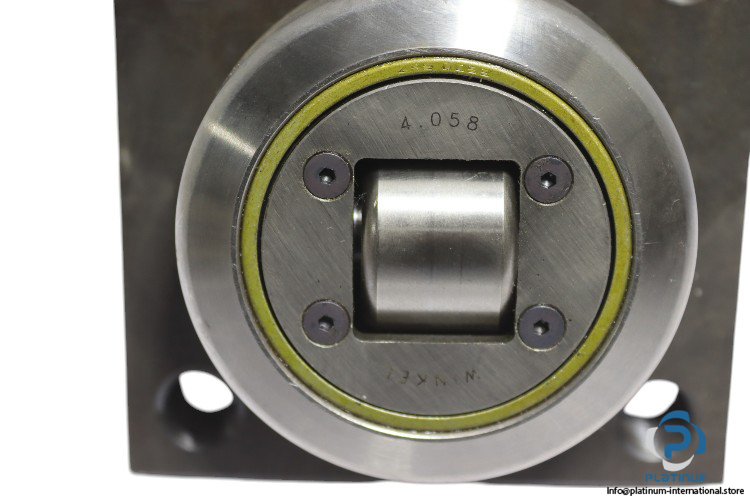

Winkel 4.058 Fixed Combined Bearing

The Winkel 4.058 Fixed Combined Bearing is engineered for precise axial and radial load handling in heavy-duty industrial applications. Built with robust construction and excellent load ratings, it ensures durability and reliable operation under demanding conditions.

Manufacturer: Winkel

Type: Fixed Combined Bearing

Model: 4.058

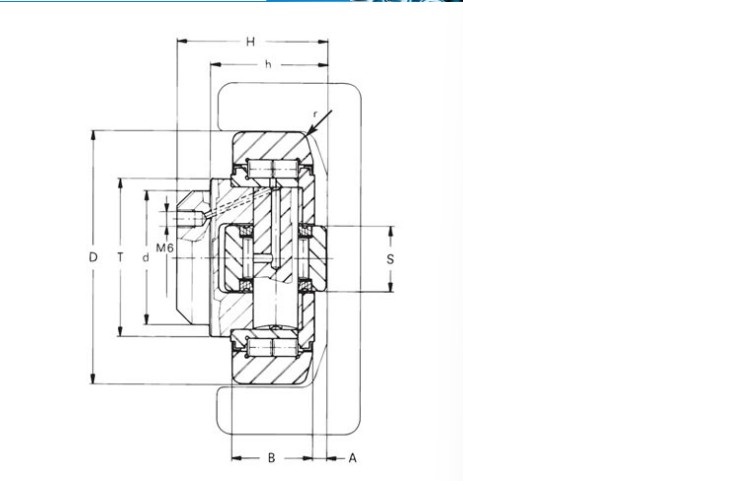

Technical Information:

• Bore Diameter (d): 45 mm
• Outer Diameter (D): 88.4 mm
• H: 57 mm
• B: 30 mm
• T: 59 mm
• Basic Load Rating – Dynamic (Cr): 68 kN
• Basic Load Rating – Static (C0r): 72 kN
• Axial Load Rating – Dynamic (CA): 23 kN
• Axial Load Rating – Static (C0A): 23 kN
