Winkel 4.058 Fixed Combined Bearing
In stock5 unitsReady to ship
189,99$
Fixed Combined Bearing
The Winkel 4.058 is a heavy-duty fixed combined bearing designed to support both radial and axial loads with load ratings up to 72 kN static and 68 kN dynamic. Ideal for industrial lifting and guiding systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

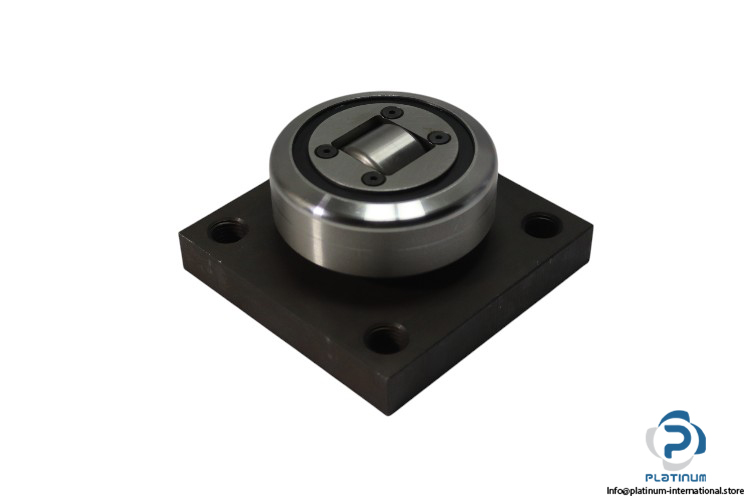

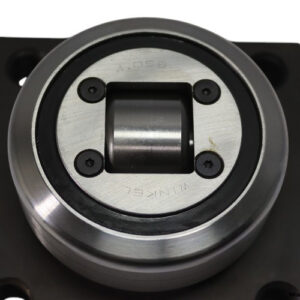

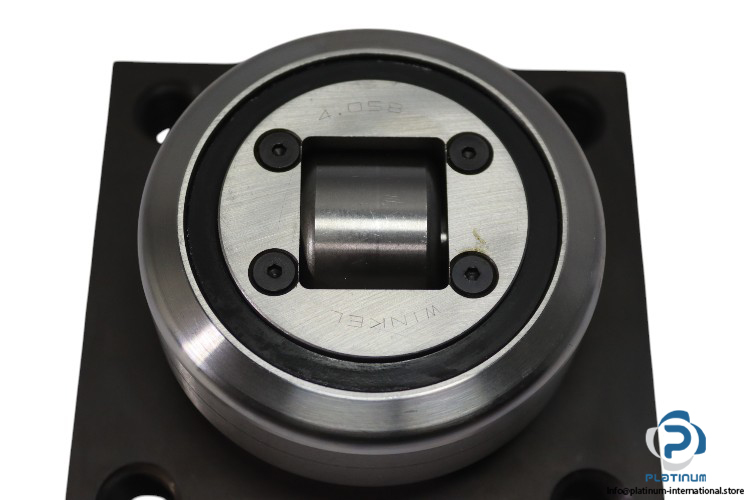

Winkel 4.058 Fixed Combined Bearing
The Winkel 4.058 Fixed Combined Bearing is a robust solution for handling both radial and axial loads in heavy-duty linear motion systems. Engineered for precision and strength, it is ideal for guiding and supporting lifting and sliding applications in industrial environments.
Manufacturer: Winkel
Type: Fixed Combined Bearing
Model: 4.058

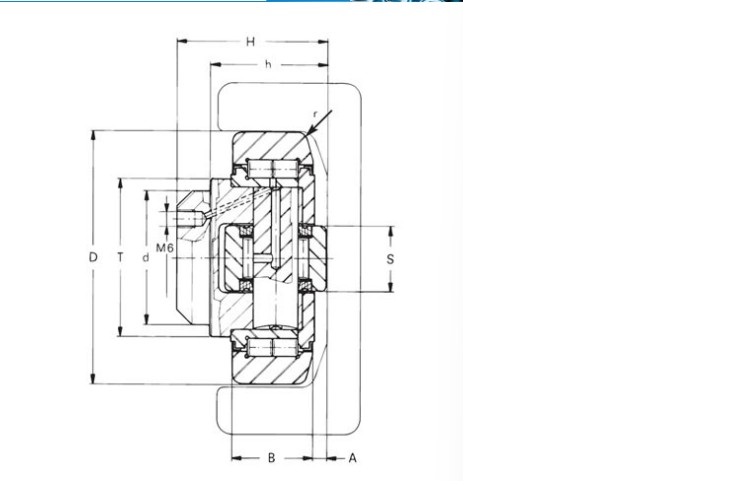

| Bore Diameter (d) | 45 mm |
| Outer Diameter (D) | 88.4 mm |
| Height (H) | 57 mm |
| Width (B) | 30 mm |
| Total Height (T) | 59 mm |
| Basic Dynamic Load Rating (Cr) | 68 kN |
| Basic Static Load Rating (C0r) | 72 kN |
| Axial Dynamic Load Rating (CA) | 23 kN |
| Axial Static Load Rating (C0A) | 23 kN |
