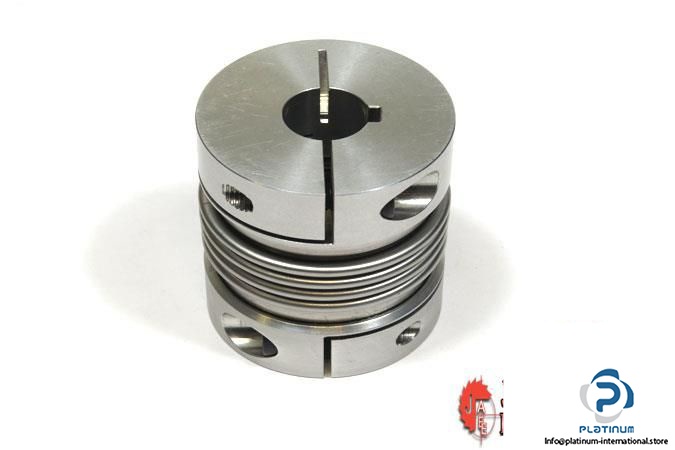

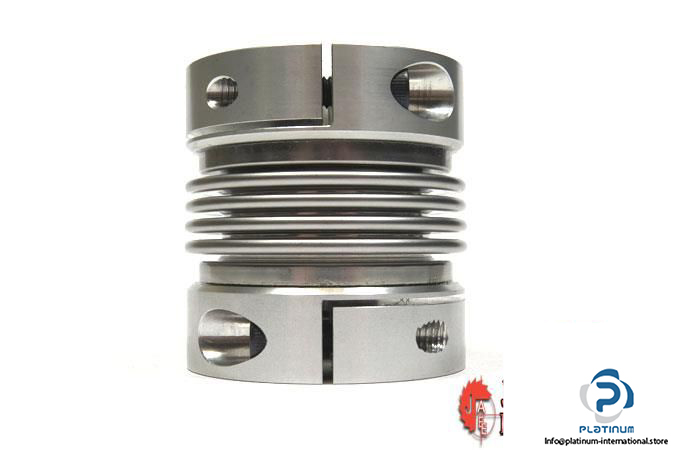

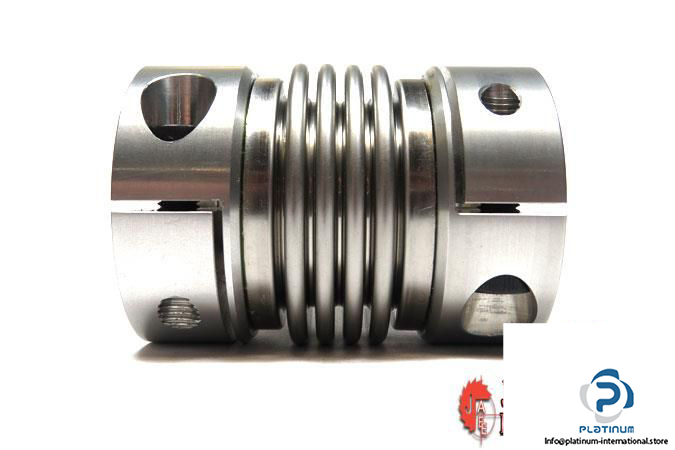

WITTENSTEIN EC2 SERVO DRIVE METAL BELLOW COUPLING

The WITTENSTEIN EC2 is a high-performance servo drive metal bellow coupling, designed to deliver excellent torsional stiffness and zero-backlash torque transmission in demanding motion control applications. Its compact design and precision engineering ensure reliable operation under dynamic loads and high-speed conditions.

Manufacturer: WITTENSTEIN
Type: Servo Drive Metal Bellow Coupling
Model: EC2

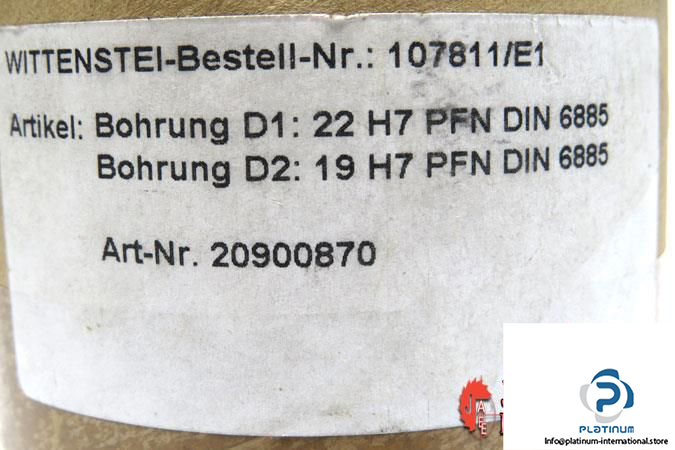

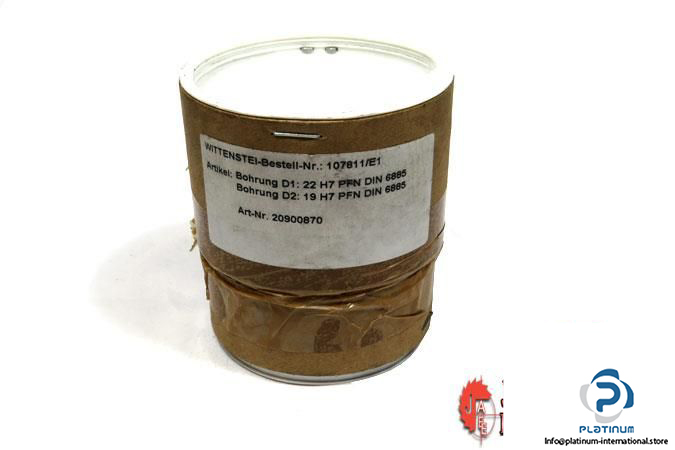

Part No.: 107811/E1
Art No.: 20900870

Technical Information

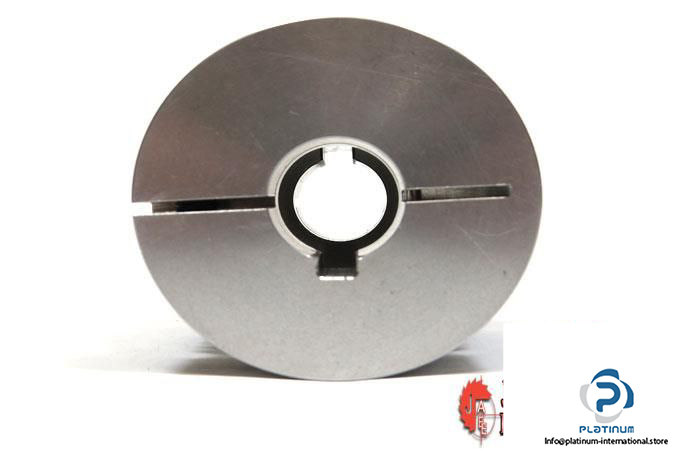

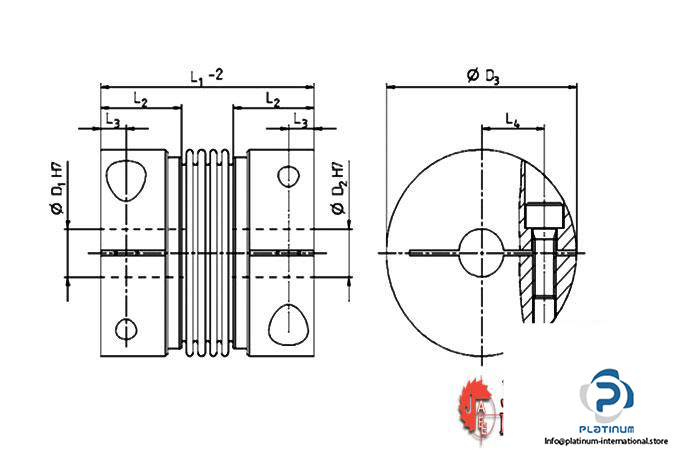

• Inner Diameters D1, D2: 22 mm, 19 mm
• Overall Length L1: 68 mm
• Outer Diameter D3: 66 mm
• Acceleration Torque: 2 … 500 Nm
• Max Speed: 10000 rpm
• Operation Temperature: -30 / 100 °C
