Elastomero SF4 Coupling

ELASTOMERO COUPLING

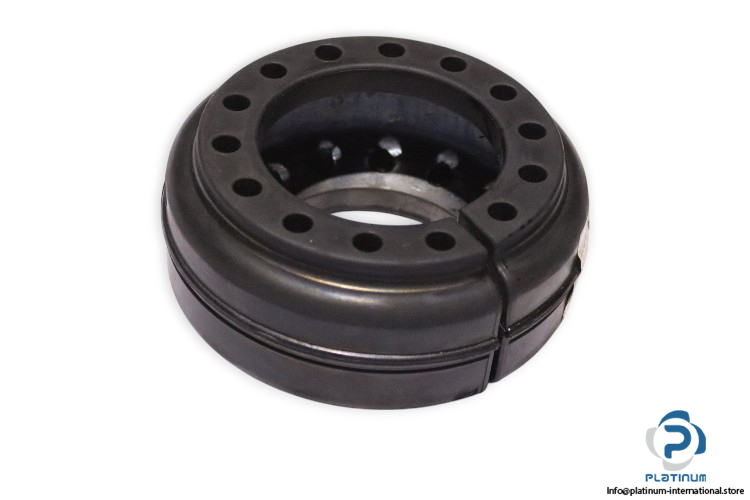

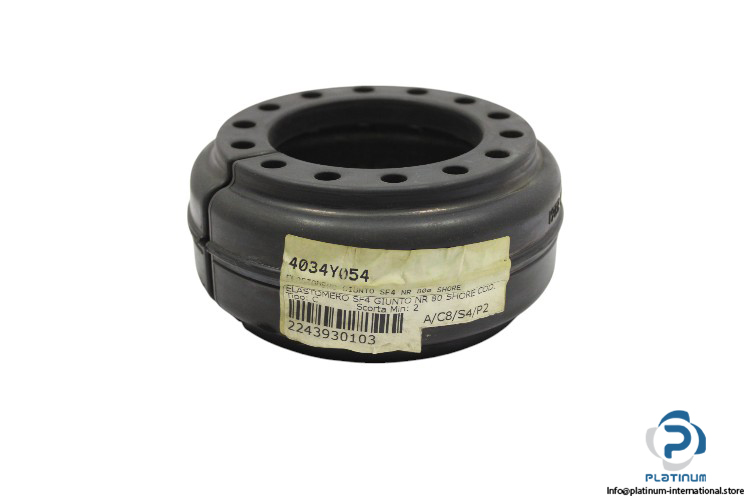

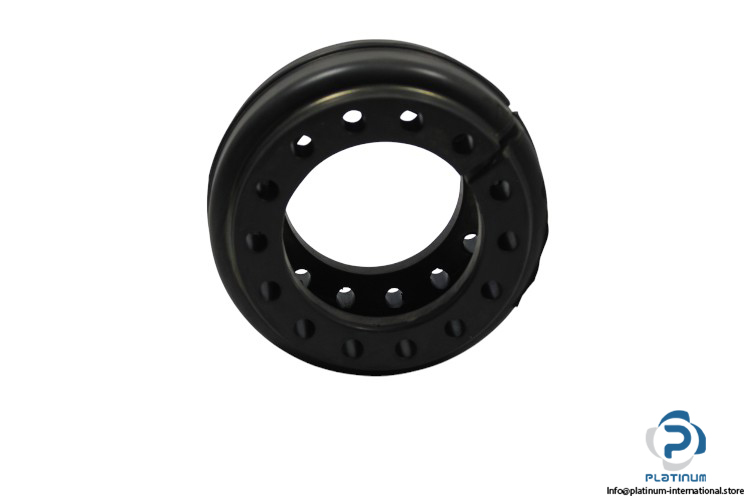

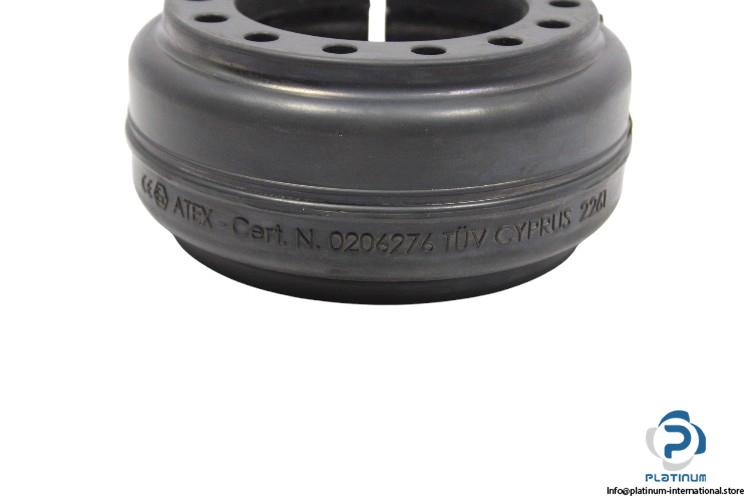

The ELASTOMERO Coupling (Model: SF4, Item No. 4034Y054, Ref No.: 22439330103) is designed for high-performance mechanical power transmission applications. With 14 pins, an outer diameter of 85 mm, and a nominal torque of 94.6 Nm, this coupling ensures reliable and efficient energy transfer at high speeds of up to 3600 rpm. The coupling also features excellent static torsional stiffness, making it suitable for precision machinery and heavy-duty operations.

Manufacturer: ELASTOMERO

Type: Coupling

Model: SF4

Item No.: 4034Y054

Ref No.: 22439330103

Ref No. 2: A/C8/S4/P2

Ref No. 3: 80

Cart No.: 0206276

Technical Specifications

• Type: C
• No of Pins: 14
• Outer Diameter: 85 mm
• Moment of Inertia: 0.0035 kgm²
• Nominal Torque: 94.6 Nm
• Max Speed: 3600 rpm
• Static Torsional Stiffness: 7.34 Nm/°
