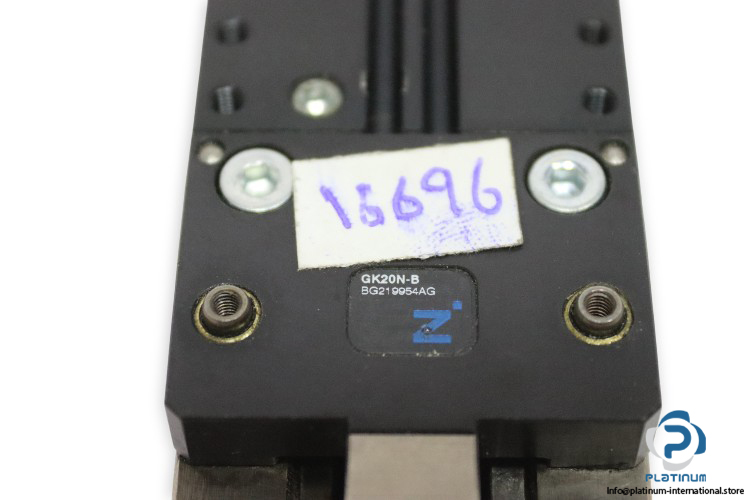

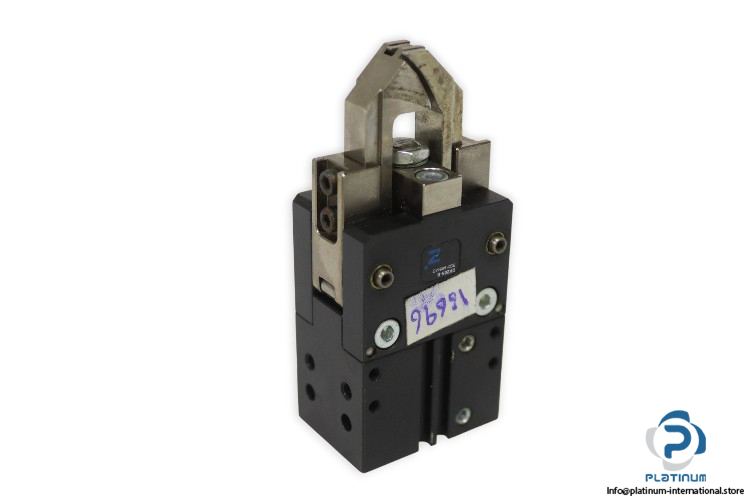

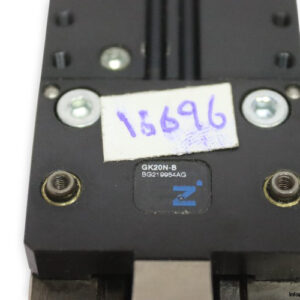

Zimmer GK20N-B 2-Jaw Radial Gripper

The Zimmer GK20N-B 2-Jaw Radial Gripper is a precision pneumatic gripper engineered for reliable and repeatable handling in automation and assembly applications. It offers compact design, high gripping force, and consistent performance under demanding industrial conditions.

Manufacturer: Zimmer
Type: 2-Jaw Radial Gripper
Model: GK20N-B
MRN: BG219954AG

Technical Information

• Stroke per Jaw: 90 degrees
• Gripping Moment in Closing: 3 Newton meters
• Gripping Force in Closing: 150 Newtons
• Closing Time: 0.1 seconds
• Opening Time: 0.1 seconds
• Repetition Accuracy: plus or minus 0.05 millimeters
• Operating Pressure: 3 to 8 bar
• Nominal Operating Pressure: 6 bar
• Operating Temperature: 5 to 80 degree Celsius
• Air Volume per Cycle: 9 cubic centimeters
• Approvals: LABS, REACH, RoHS
• Protection to IEC 60529: IP20
• Connection: 5 millimeters
